Detailed Specifications

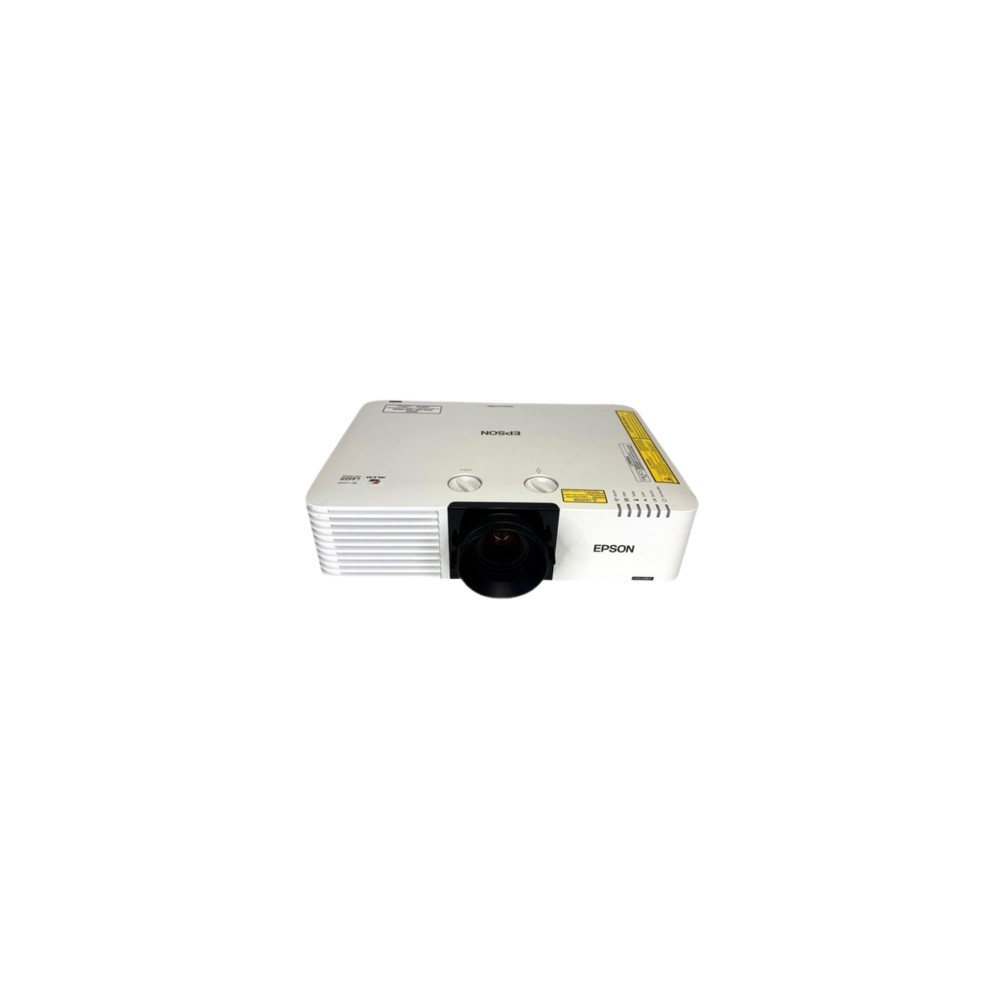

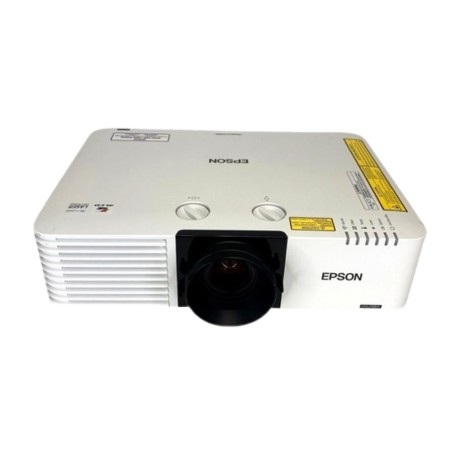

Epson V11HA25120 PowerLite L735U WUXGA 3LCD laser projector
Overview :
The Epson V11HA25120 PowerLite L735U is a professional-grade WUXGA 3LCD laser projector designed for enterprise meeting rooms, higher education, digital signage, and large presentation environments. It delivers high-brightness projection for spaces with strong ambient lighting while supporting long-duration operation with minimal maintenance.
The projector provides 7,000 lumens of both color and white brightness with native 1920 × 1200 WUXGA resolution and support for 4K input signals. Integrated HDBaseT, dual HDMI inputs, LAN, RS-232, and wireless networking simplify deployment across modern AV infrastructures. Its 20,000-hour laser light source reduces downtime and service requirements in continuously operated environments.
Designed for flexible installation, the unit supports ceiling, rear, and 360-degree mounting with horizontal and vertical lens shift, edge blending, geometric correction, and split-screen capability. It is suitable for medium-to-large conference rooms, auditoriums, museums, training centers, and multi-projector deployments.
The projector is compatible with enterprise AV control systems and network-managed environments. It is not intended for compact portable setups or battery-powered mobile projection applications due to its installation-focused form factor and power requirements.
Key Features :
- 7,000-lumen brightness for lit environments
- Native WUXGA resolution with 4K signal support
- 20,000-hour laser light source reduces maintenance
- HDBaseT, HDMI, LAN, and RS-232 connectivity
- Lens shift and edge blending simplify installation
Specifications :
| Specification | Details |
|---|
| Brand | Epson |
| Part Number | V11HA25120 |
| Product Type | 3LCD Laser Projector |
| Native Resolution | 1920 × 1200 WUXGA |
| Brightness | 7,000 lumens |
| Contrast Ratio | 2,500,000:1 |
| Projection Size | 50" to 500" |
| Throw Ratio | 1.35 - 2.2:1 |
| Light Source | Laser Phosphor |
| Light Source Life | Up to 20,000 hours |
| Interfaces | HDMI, HDBaseT, VGA, RJ-45, RS-232 |
| Wireless Connectivity | Integrated Wi-Fi |
| Optical Zoom | 1.6x manual zoom |
| Lens Shift | Vertical ±50%, Horizontal ±20% |
| Installation Support | Ceiling, rear, and 360° mounting |
