Overview

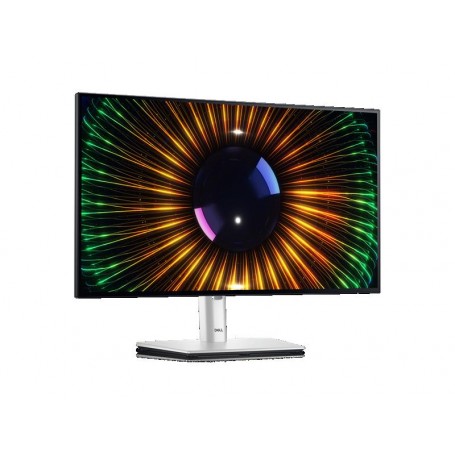

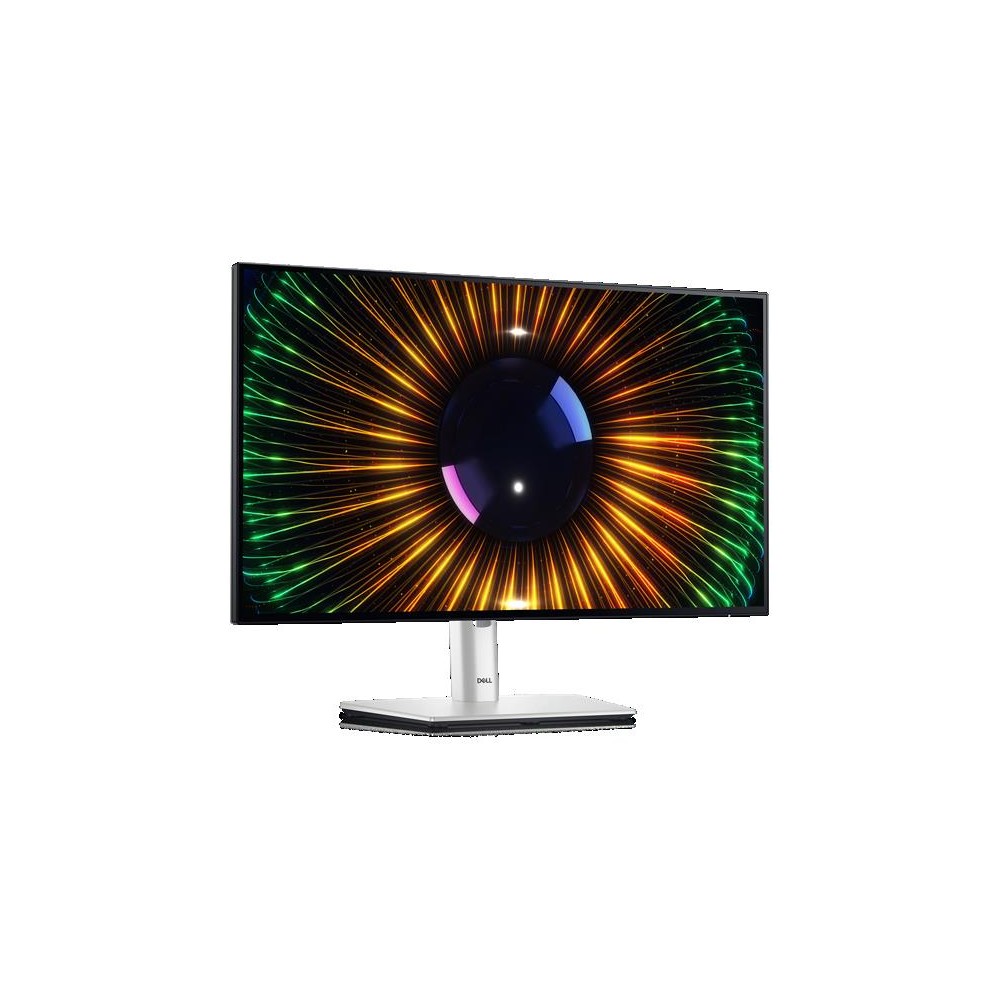

The Dell UltraSharp U2424H is a 23.8-inch Full HD IPS monitor designed for business and productivity environments. It combines 1920 × 1080 resolution, a 120Hz refresh rate, wide viewing angles, and integrated USB connectivity in an ergonomic display platform.
Display Performance
The IPS panel provides 1920 × 1080 resolution at up to 120Hz, with 250 cd/m² typical brightness and a 1,000:1 native contrast ratio. The display supports 16.7 million colors, 100% sRGB, 100% BT.709, and 85% DCI-P3 coverage. Dell specifies an average Delta E of less than 2 for sRGB and BT.709.
Connectivity
Video inputs include one DisplayPort 1.4 and one HDMI 1.4 port. A DisplayPort 1.4 output with Multi-Stream Transport (MST) enables supported daisy-chain configurations. The monitor also provides a USB-C upstream connection for the integrated USB hub.
USB Hub
The integrated USB hub provides USB 3.2 Gen 2 connectivity with three USB-A downstream ports and one USB-C downstream port. The USB-C downstream port supports up to 15W charging, while one USB-A port supports BC 1.2 charging.
Ergonomics
The included stand supports height, tilt, swivel, and pivot adjustment. Height adjustment is up to 150 mm, while the monitor supports a 100 × 100 mm VESA mounting interface for compatible mounting hardware.
Eye Comfort
The U2424H uses an anti-glare 3H surface and includes Dell ComfortView Plus and an ambient light sensor. Dell identifies the monitor as TÜV Rheinland 4-star eye-comfort certified.
Key Features
- 23.8-inch IPS display with Full HD 1920 × 1080 resolution
- 120Hz refresh rate for smoother desktop motion and scrolling
- 100% sRGB and 100% BT.709 color coverage with Delta E < 2 average
- USB 3.2 Gen 2 hub with USB-C and USB-A downstream ports
- DisplayPort 1.4 output with MST for supported daisy-chain configurations
Applications
The U2424H is suited to office workstations, business desktops, productivity applications, document workflows, multi-monitor deployments, and environments requiring USB peripheral connectivity at the display.
DC Supplies Product Note
The U2424H combines a compact 23.8-inch FHD panel with a 120Hz refresh rate and integrated USB 10Gbps connectivity, making it suitable for standardized productivity workstations where desk space and peripheral access are considerations.
Specifications
| Specification | Details |
|---|
| Brand | Dell |
| Part Number / MPN | U2424H |
| Product Type | UltraSharp Monitor |
| Viewable Size | 23.8 inches |
| Panel Technology | IPS |
| Resolution | 1920 × 1080 |
| Aspect Ratio | 16:9 |
| Refresh Rate | 120Hz |
| Pixel Pitch | 0.2745 × 0.2745 mm |
| Pixel Density | 92.53 PPI |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1,000:1 |
| Color Support | 16.7 million colors |
| Color Gamut | 100% sRGB, 100% BT.709, 85% DCI-P3 |
| Color Accuracy | Delta E < 2 average for sRGB and BT.709 |
| Response Time | 8ms Normal; 5ms Fast |
| Viewing Angle | 178° horizontal / 178° vertical |
| HDMI | 1 × HDMI 1.4 |
| DisplayPort | 1 × DisplayPort 1.4 |
| DisplayPort Output | 1 × DisplayPort 1.4 with MST |
| USB-C Upstream | 1 × USB 3.2 Gen 2, 10Gbps |
| USB-A Downstream | 3 × USB 3.2 Gen 2, 10Gbps |
| USB-C Downstream | 1 × USB 3.2 Gen 2, 10Gbps, up to 15W charging |
| Audio | 1 × audio line-out |
| Speakers | None |
| Stand Adjustment | Height, tilt, swivel, pivot |
| Height Adjustment | 150 mm |
| VESA Mount | 100 × 100 mm |
| Power Input | 100–240V AC, 50/60Hz |
| Typical Power Consumption | 13.7W |
| Maximum Power Consumption | 72W |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 80%, non-condensing |
| Dimensions | L 21.21 × W 7.16 × H 14.33–19.55 inches with stand |
| Weight | 11.86 lbs with stand and cables |
| Warranty | 3-Year Advanced Exchange Service and Premium Panel Exchange |
FAQs
What resolution does the Dell U2424H support?
The U2424H supports Full HD 1920 × 1080 resolution at up to 120Hz.
What panel does the U2424H use?
It uses an IPS panel with 178-degree horizontal and vertical viewing angles.
Does the U2424H have a USB-C port?
Yes. It has one USB-C upstream port for the integrated USB 3.2 Gen 2 hub and one USB-C downstream port supporting up to 15W charging.
Can the U2424H be used in a daisy-chain setup?
Yes. Its DisplayPort 1.4 output supports Multi-Stream Transport for compatible daisy-chain configurations.
Does the U2424H have built-in speakers?
No. The U2424H does not include integrated speakers, but it provides an audio line-out connection.
Does the U2424H support VESA mounting?
Yes. It supports a 100 × 100 mm VESA mounting pattern.
