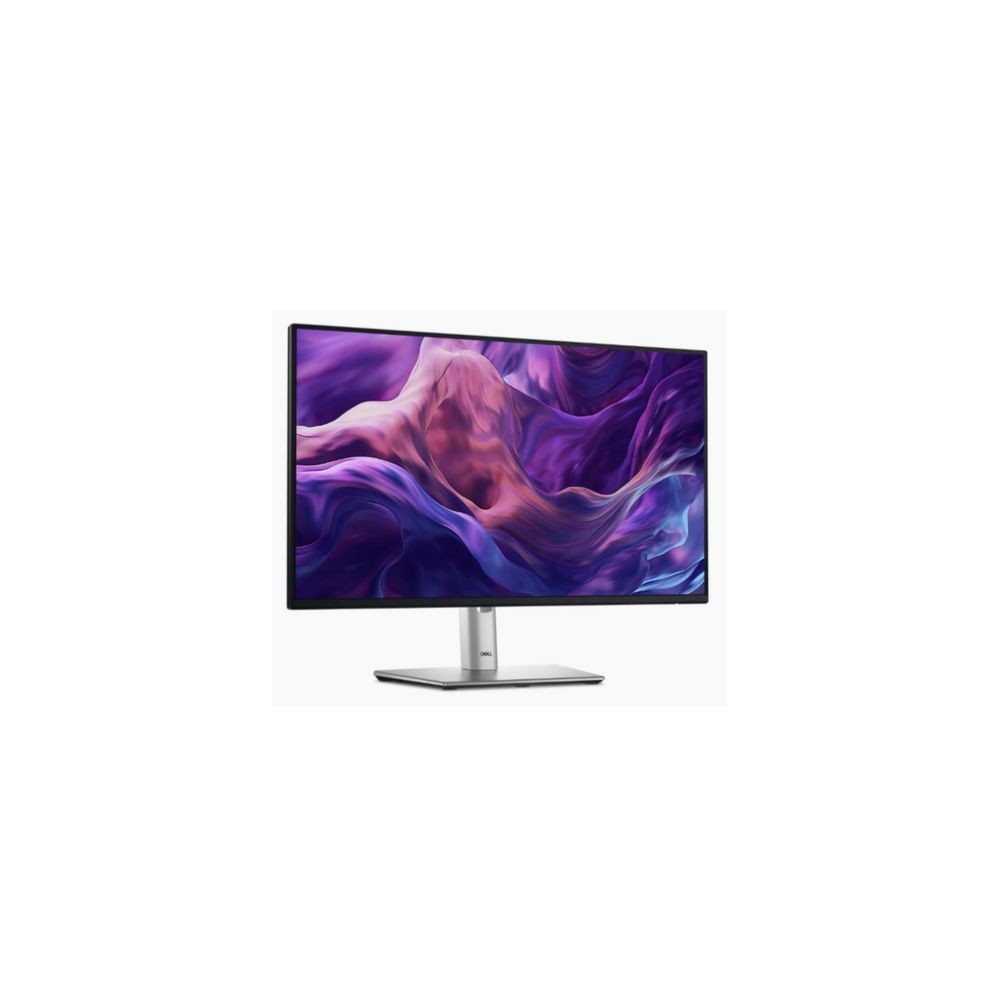

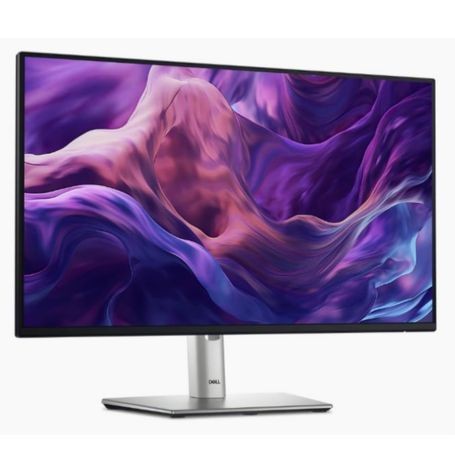

Dell P2425HE is a 23.8-inch Full HD IPS monitor designed as a USB-C hub display for connected workstation environments. It provides 1920 x 1080 resolution at up to 100Hz, USB-C connectivity with up to 90W power delivery, integrated 1GbE Ethernet, USB connectivity, and DisplayPort output with MST for supported daisy-chain configurations.
Display
The monitor uses an IPS panel with a 16:9 aspect ratio, 1920 x 1080 maximum resolution, 100Hz refresh rate, 250 cd/m² typical brightness, and 1,500:1 typical contrast ratio. It supports 99% sRGB color gamut, 16.7 million colors, and 178° horizontal and vertical viewing angles. The anti-glare display has 3H hardness.
USB-C Hub and Connectivity
The P2425HE includes a USB 3.2 Gen 1 Type-C upstream port with DisplayPort 1.4 Alt Mode and up to 90W power delivery. It also provides three USB 3.2 Gen 1 Type-A downstream ports and one USB 3.2 Gen 1 Type-C downstream port with up to 15W power delivery for data-connected devices.
Video and network connectivity include HDMI 1.4, DisplayPort 1.4, DisplayPort 1.4 output with MST, and an RJ45 1GbE Ethernet port. The monitor also supports Dell Power Button Sync and Dell Display Manager with Easy Arrange.
Adjustability and Mounting
The supplied stand supports height adjustment up to 150 mm, tilt from -5° to +21°, swivel from -45° to +45°, and pivot from -90° to +90°. A 100 x 100 mm VESA mounting interface is also provided.
Key Features
- 23.8-inch IPS Full HD display with 1920 x 1080 resolution
- 100Hz refresh rate with 99% sRGB color gamut
- USB-C upstream connection with up to 90W power delivery
- Integrated 1GbE Ethernet and USB hub
- DisplayPort output with MST for supported daisy-chain configurations
Eye Comfort
The P2425HE features TÜV-certified 4-star eye comfort, flicker-free operation, and an anti-glare 3H surface. These features are intended to reduce common display-related visual discomfort during extended workstation use.
DC Supplies Product Note
For USB-C workstation deployment, verify that the host computer supports DisplayPort Alt Mode over USB-C. The upstream USB-C connection can deliver up to 90W to a compatible host while carrying display and USB hub connectivity. The monitor also supports DisplayPort MST output for compatible multi-monitor configurations.
Specifications
| Specification | Details |
|---|
| Brand | Dell |
| Part Number / MPN | DELL-P2425HE |
| Product Type | USB-C Hub Monitor |
| Product Model | P2425HE |
| Series | Dell Pro Plus |
| Screen Size | 23.8 inches |
| Panel Technology | IPS |
| Resolution | 1920 x 1080 |
| Refresh Rate | 100 Hz |
| Aspect Ratio | 16:9 |
| Brightness | 250 cd/m² typical |
| Contrast Ratio | 1,500:1 typical |
| Color Gamut | 99% sRGB |
| Color Support | Up to 16.7 million colors |
| Response Time | 5 ms GTG Fast / 8 ms GTG Normal |
| Viewing Angle | 178° horizontal / 178° vertical |
| Pixel Pitch | 0.2745 mm x 0.2745 mm |
| USB-C Upstream | USB 3.2 Gen 1, DisplayPort 1.4 Alt Mode, up to 90W PD |
| USB-A Downstream | 3 x USB 3.2 Gen 1 |
| USB-C Downstream | 1 x USB 3.2 Gen 1, up to 15W PD |
| Ethernet | 1 x RJ45 1GbE |
| Video Inputs | 1 x HDMI 1.4, 1 x DisplayPort 1.4 |
| Video Output | 1 x DisplayPort 1.4 with MST |
| VESA Mount | 100 x 100 mm |
| Height Adjustment | Up to 150 mm |
| Operating Temperature | 0°C to 40°C |
FAQs
Does the Dell P2425HE support USB-C power delivery?
Yes. The USB-C upstream port supports up to 90W power delivery with DisplayPort 1.4 Alt Mode.
Does the P2425HE have built-in Ethernet?
Yes. The monitor includes an RJ45 1GbE Ethernet port.
Can the P2425HE be used in a daisy-chain setup?
The monitor provides a DisplayPort 1.4 output with MST and supports daisy-chain functionality for compatible configurations.
What is the maximum refresh rate?
The P2425HE supports a maximum refresh rate of 100Hz at its 1920 x 1080 Full HD resolution.
Does the monitor support VESA mounting?
Yes. The P2425HE provides a 100 x 100 mm VESA mounting interface.
