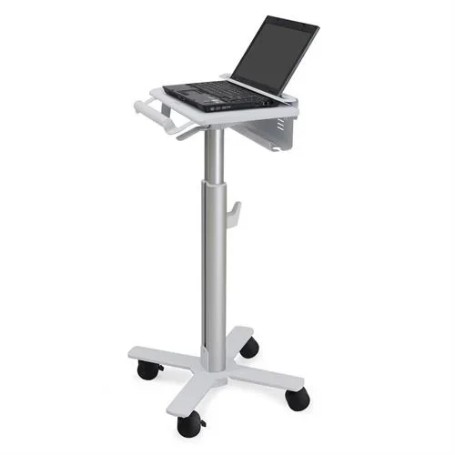

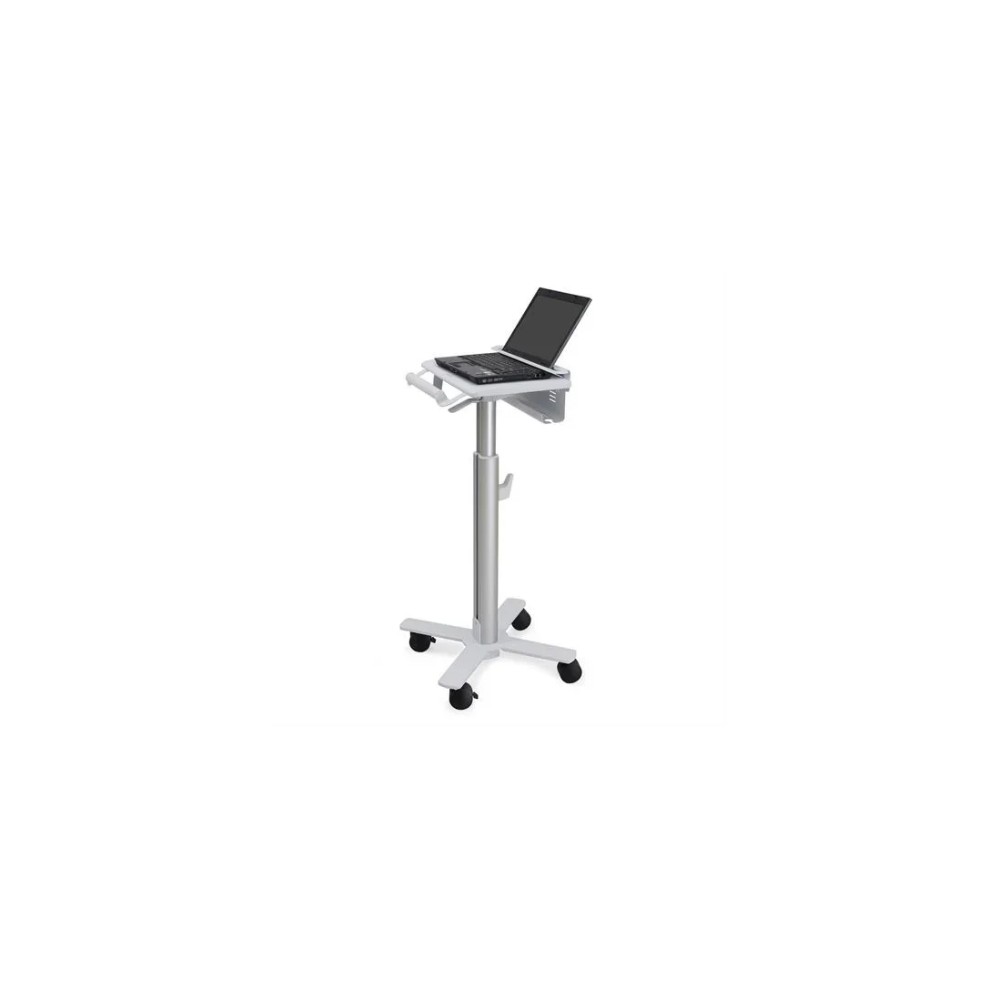

Ergotron SV10-1100-0 – StyleView Laptop Cart, SV10
Overview
The Ergotron SV10-1100-0 StyleView Laptop Cart is a non-powered, height-adjustable mobile workstation designed for point-of-care laptop use. Its compact construction provides 15 inches (38.1 cm) of vertical travel for seated or standing work, while the integrated hand brake secures the worksurface at the selected height. The cart is constructed from steel with smooth, cleanable surfaces and is supplied in a white and aluminum finish.
Technical Information
The SV10-1100-0 supports laptops up to 10 lb (4.5 kg) and accommodates laptops with a maximum outside width of 17 inches (43 cm). The 18 × 12.5-inch worksurface provides space for the laptop, while a dedicated compartment beneath the surface stores a power brick, excess cable or power strip. The cart also includes a laptop bracket, storage hook and scanner holder.
Compatibility
The SV10-1100-0 is specifically configured as the StyleView Laptop Cart for laptops up to 17 inches. It is not the tablet-oriented SV10-1400-0 or the Microsoft Surface-oriented SV10-1800-0; these are separate StyleView SV10 models with different device interfaces and specifications.
Key Features
- 15-inch (38.1 cm) vertical height adjustment for seated and standing use.
- Supports laptops up to 10 lb (4.5 kg) and 17 inches in screen size.
- 18 × 12.5-inch worksurface accommodates most laptop configurations.
- Integrated hand brake secures the platform at the selected working height.
- Includes laptop bracket, scanner holder and concealed cable/power-brick storage.
Applications
The SV10-1100-0 is intended for mobile point-of-care computing, healthcare workstations and other environments requiring a compact laptop workstation that can be repositioned and adjusted for seated or standing operation. Its included scanner holder and cable-storage compartment support mobile data-entry workflows.
DC Supplies Product Note
This listing is for the exact Ergotron SV10-1100-0 StyleView Laptop Cart, SV10. It is a non-powered cart; the laptop, power adapter, barcode scanner and other computing equipment are not included unless separately specified. The integrated T-slot channel can accept compatible accessories, subject to the manufacturer's load limits.
Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | SV10-1100-0 |
|---|
| Product Type | Mobile Laptop Cart |
|---|
| Product Name | StyleView Laptop Cart, SV10 |
|---|
| Power Type | Non-powered |
|---|
| Color | White and Aluminum |
|---|
| Recommended Device | Laptop |
|---|
| Maximum Laptop Screen Size | 17 in |
|---|
| Maximum Laptop Outside Width | 17 in (43 cm) |
|---|
| Laptop Weight Capacity | 10 lb (4.5 kg) |
|---|
| Cable Management Storage Capacity | 2 lb (1 kg) |
|---|
| Column Capacity | 20 lb (9.1 kg), including T-slot accessories and storage hook |
|---|
| Height Adjustment | 15 in (38.1 cm) |
|---|
| Worksurface Height | 33–48 in (84–122 cm) |
|---|
| Worksurface Dimensions | 18 × 12.5 in (45.7 × 31.8 cm) |
|---|
| Base Footprint | 19 × 19 in (48.3 × 48.3 cm) |
|---|
| Cable Storage Area | 14.5 × 2.75 in (36.8 × 7 cm) |
|---|
| Casters | 3 in (75 mm), two locking |
|---|
| Cart Weight | 31.6 lb (14.3 kg) |
|---|
| Shipping Dimensions | 40 × 23.5 × 23.5 in (102 × 60 × 60 cm) |
|---|
| Shipping Weight | 42.4 lb (19.2 kg) |
|---|
| Included | Worksurface, cable/brick storage compartment, storage hook, casters, laptop bracket and scanner holder |
|---|
| Warranty | 7 years |
|---|
The specifications above are based primarily on the current Ergotron exact-model product page, with supporting distributor documentation used to cross-check the MPN and core specifications.
FAQs
What is the Ergotron SV10-1100-0?
The SV10-1100-0 is the Ergotron StyleView Laptop Cart, SV10, a compact non-powered mobile workstation for laptop-based point-of-care computing.
What size laptop does it support?
The cart supports laptops with a maximum outside width of 17 inches (43 cm), accommodating laptops with 17-inch screens and some larger models depending on their physical dimensions.
What is the laptop weight capacity?
The dedicated laptop capacity is 10 lb (4.5 kg). The cable-management storage area supports up to 2 lb (1 kg).
How much height adjustment does the cart provide?
The SV10-1100-0 provides 15 inches (38.1 cm) of vertical travel, with the worksurface adjustable from approximately 33 to 48 inches (84 to 122 cm).
What are the worksurface dimensions?
The worksurface measures 18 × 12.5 inches (45.7 × 31.8 cm).
Does the cart include a scanner holder?
Yes. The SV10-1100-0 includes a scanner holder that attaches beneath the worksurface on the left side.
Is the SV10-1100-0 powered?
No. The SV10-1100-0 is a non-powered cart. It includes storage for a laptop power brick, excess cable or power strip beneath the worksurface.
What warranty is provided?
Ergotron specifies a seven-year warranty for the SV10-1100-0.
