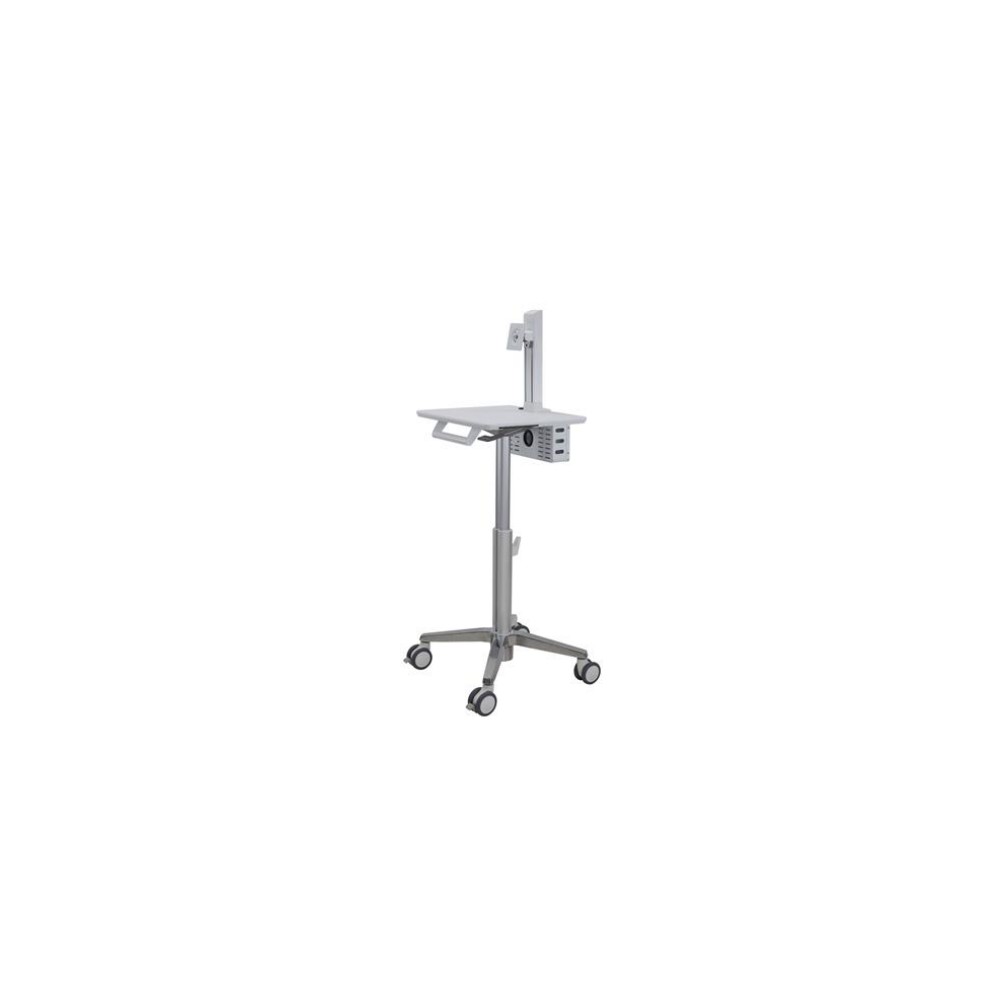

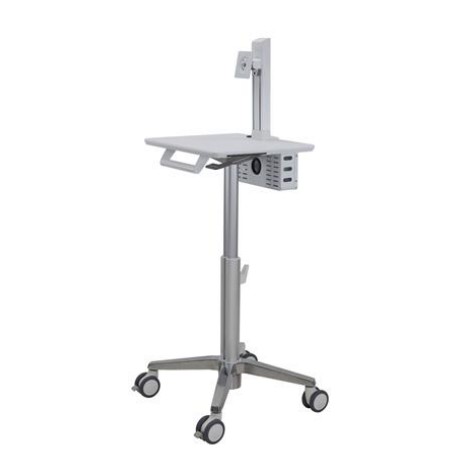

Ergotron SV10-1300-0 – StyleView Lean WOW Cart, SV10
Overview
The Ergotron SV10-1300-0 StyleView Lean WOW Cart is a lightweight, non-powered mobile workstation designed for display or all-in-one computer workflows. Its height-adjustable column provides 16 inches of adjustment for seated or standing work, while the compact 24 × 22 inch footprint allows the cart to operate in space-constrained environments.
Technical Information
The cart includes a 23 × 20 inch worksurface with cord pass-through, a retractable mouse shelf, monitor riser, enclosed cable and power-adapter storage compartment, storage hook, handle, and four 4-inch casters, including two locking casters. The monitor riser supports displays from 6–16 lb and adds 5 inches of independent height adjustment. The display interface supports VESA MIS-D 75 × 75 mm and 100 × 100 mm mounting patterns.
Compatibility
The SV10-1300-0 is designed for a single display or compatible all-in-one computer up to 24 inches and within the monitor riser's 6–16 lb load range. The cart's column includes a T-slot channel interface for integrating compatible Ergotron accessories.
Key Features
- Supports displays up to 24 inches and 6–16 lb
- Provides 16 inches of sit-stand height adjustment
- Includes a 23 × 20 inch worksurface with cord pass-through
- Features a retractable 7.5 × 7.5 inch mouse shelf and enclosed cable-storage cubby
- Compact 24 × 22 inch footprint with four 4-inch casters and two locking casters
Applications
The StyleView Lean WOW Cart is suited to healthcare documentation, clinical workstations, examination areas, patient-care environments, and other mobile workstation applications requiring a compact non-powered cart for a monitor, keyboard, mouse, scanner, and small equipment.
DC Supplies Product Note
The SV10-1300-0 is the exact White and Aluminum StyleView Lean WOW configuration. It is a non-powered cart and should not be confused with other SV10 models such as the StyleView Laptop Cart or StyleView Tablet Cart. The published display capacity applies to the monitor riser and should be observed when selecting a display or all-in-one computer.
Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | SV10-1300-0 |
|---|
| Product | StyleView Lean WOW Cart, SV10 |
|---|
| Product Type | Mobile Sit-Stand Workstation Cart |
|---|
| Color / Finish | White and Aluminum |
|---|
| Power Type | Non-powered |
|---|
| Typical Display Size | Up to 24 in |
|---|
| Display Load Capacity | 6–16 lb (2.7–7.3 kg) |
|---|
| VESA Mounting | VESA MIS-D, 75 × 75 mm and 100 × 100 mm |
|---|
| Display Tilt | 30° |
|---|
| Display Rotation | 360° |
|---|
| Monitor Riser Height Adjustment | 5 in (12.7 cm) |
|---|
| Column Lift | 16 in (40.6 cm) |
|---|
| Worksurface Height Range | 30.25–46.25 in (76.8–117.5 cm) |
|---|
| Worksurface Dimensions | 23 × 20 in (58.4 × 50.8 cm) |
|---|
| Mouse Shelf | 7.5 × 7.5 in (19 × 19 cm), retractable left or right |
|---|
| Base Footprint | 24 × 22 in (61 × 56 cm) |
|---|
| Casters | Four 4 in (10.2 cm), two locking |
|---|
| Cart Weight | 58 lb (26.3 kg) |
|---|
| Shipping Dimensions | 30.5 × 33.6 × 55.6 in (77.5 × 85.3 × 141.2 cm) |
|---|
| Shipping Weight | 99 lb (44.9 kg) |
|---|
| Warranty | 7 years on cart; 5 years on monitor riser |
|---|
FAQs
What is the Ergotron SV10-1300-0?
The SV10-1300-0 is the Ergotron StyleView Lean WOW Cart, SV10, a mobile non-powered workstation designed for a display or compatible all-in-one computer.
What size display does it support?
The monitor riser supports displays up to 24 inches with a published load range of 6–16 lb (2.7–7.3 kg).
How much height adjustment does the cart provide?
The main height-adjustable column provides 16 inches of adjustment, with a worksurface height range of 30.25–46.25 inches. The monitor riser adds another 5 inches of display height adjustment.
What is the worksurface size?
The worksurface measures 23 × 20 inches (58.4 × 50.8 cm) and includes a cord pass-through.
Does the cart include cable management?
Yes. An enclosed cubby beneath the worksurface provides storage for power adapters, cables, and even an ultra-small form factor computer.
Is the cart powered?
No. The SV10-1300-0 is a non-powered mobile workstation.
What is the warranty?
Ergotron documentation specifies a 7-year warranty on the cart and a 5-year warranty on the monitor riser.
