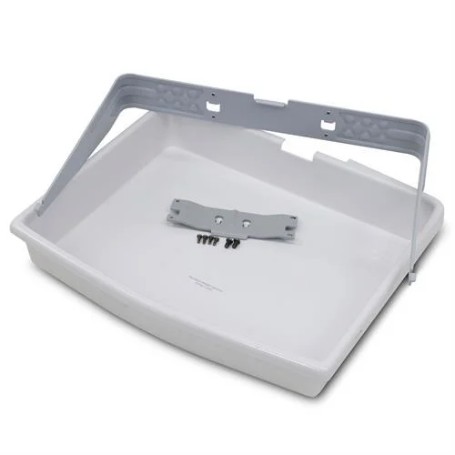

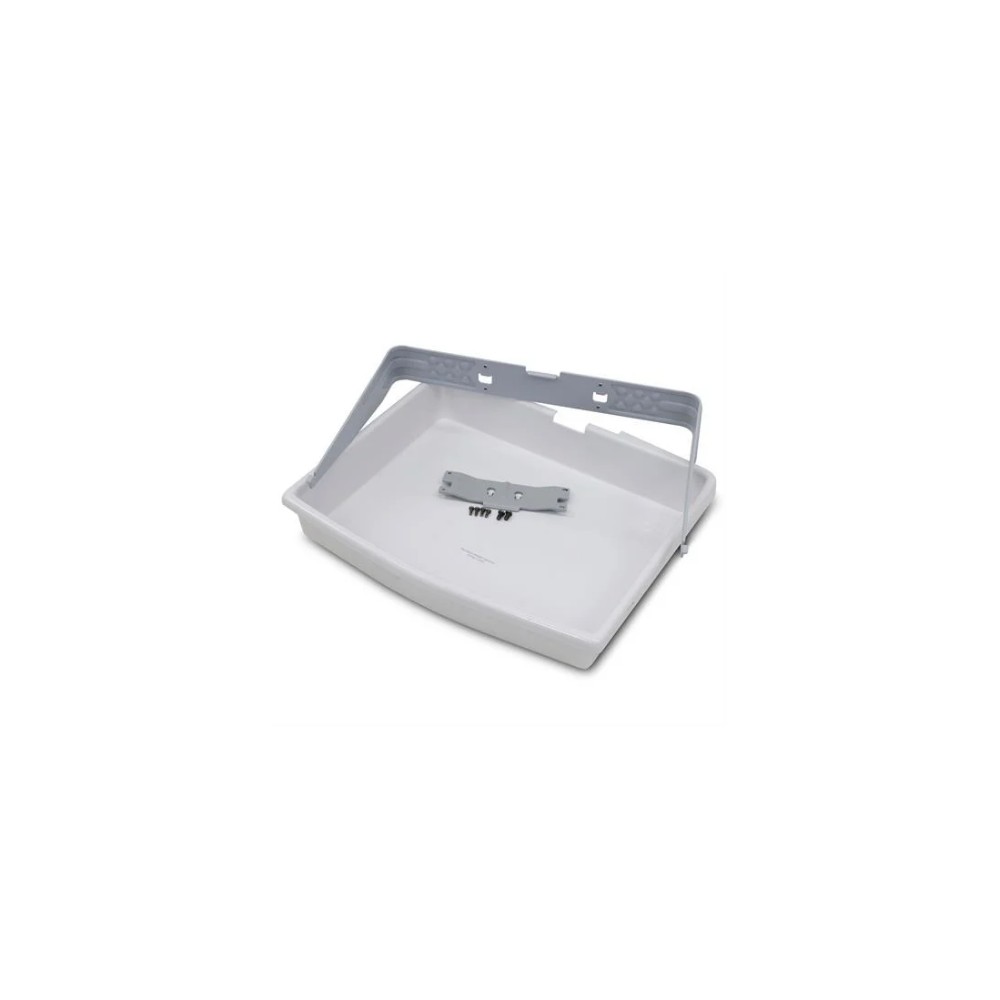

Ergotron 98-134 – SV Front Tray for StyleView Carts
Overview
The Ergotron 98-134 SV Front Tray adds accessible storage to compatible StyleView medical carts. The tray provides a convenient front-side location for unsecured supplies, equipment, and telemedicine components while remaining removable for cleaning and workflow changes.
Technical Information
The SV Front Tray supports loads up to 13 lb (5.9 kg). It is constructed from high-grade plastic and painted steel and includes the tray, mounting bracket, and mounting hardware. The tray can be installed using the rear T-slot channel or attached to the cart's main column height-adjustment mechanism.
Compatibility
The 98-134 is designed for compatible Ergotron StyleView carts, including selected SV40, SV41, SV42, SV43, and SV44 configurations. Compatibility should be confirmed against the exact cart configuration before deployment.
Key Features
- 13 lb (5.9 kg) maximum load capacity
- Provides front-side storage for supplies and telemedicine components
- Supports rear T-slot or main-column mounting methods
- Removable design simplifies cleaning and reconfiguration
- White and gray finish with plastic and painted-steel construction
Applications
The SV Front Tray is intended for healthcare and clinical cart workflows where frequently accessed supplies, peripherals, or telemedicine components need to remain within convenient reach of the operator.
DC Supplies Product Note
The Ergotron 98-134 is an accessory tray rather than a complete medical cart. Verify the exact StyleView cart model and mounting configuration before ordering. Mounting position can affect the cart's available height adjustment, and the tray load must remain within the published 13 lb capacity.
Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | 98-134 |
|---|
| Product Type | SV Front Tray / Cart Accessory Tray |
|---|
| Application | Medical Cart Storage |
|---|
| Maximum Load Capacity | 13 lb (5.9 kg) |
|---|
| Tray Dimensions | 16.4 W × 13 D × 3 H in |
|---|
| Internal Dimensions | 16.2 W × 13.8 D × 2.8 H in |
|---|
| Mounting Methods | Rear T-slot channel or main column height-adjustment mechanism |
|---|
| Material | High-grade plastic and painted steel |
|---|
| Color | White / Gray |
|---|
| Included Components | Tray, bracket, mounting hardware |
|---|
| Shipping Dimensions | 21 × 20 × 4 in |
|---|
| Shipping Weight | Approximately 9.9 lb |
|---|
| Warranty | 5 years |
|---|
FAQs
What is the Ergotron 98-134?
The 98-134 is the Ergotron SV Front Tray, an accessory designed to add front-side storage to compatible StyleView carts.
What is the maximum load capacity?
The maximum published load capacity is 13 lb (5.9 kg).
How does the tray mount?
The tray can attach to the rear T-slot channel or to the main column's height-adjustment mechanism.
What is included with the 98-134?
The package includes the SV Front Tray, mounting bracket, and mounting hardware.
Can the tray be removed for cleaning?
Yes. The tray is designed to be removable, supporting cleaning and workflow reconfiguration.
