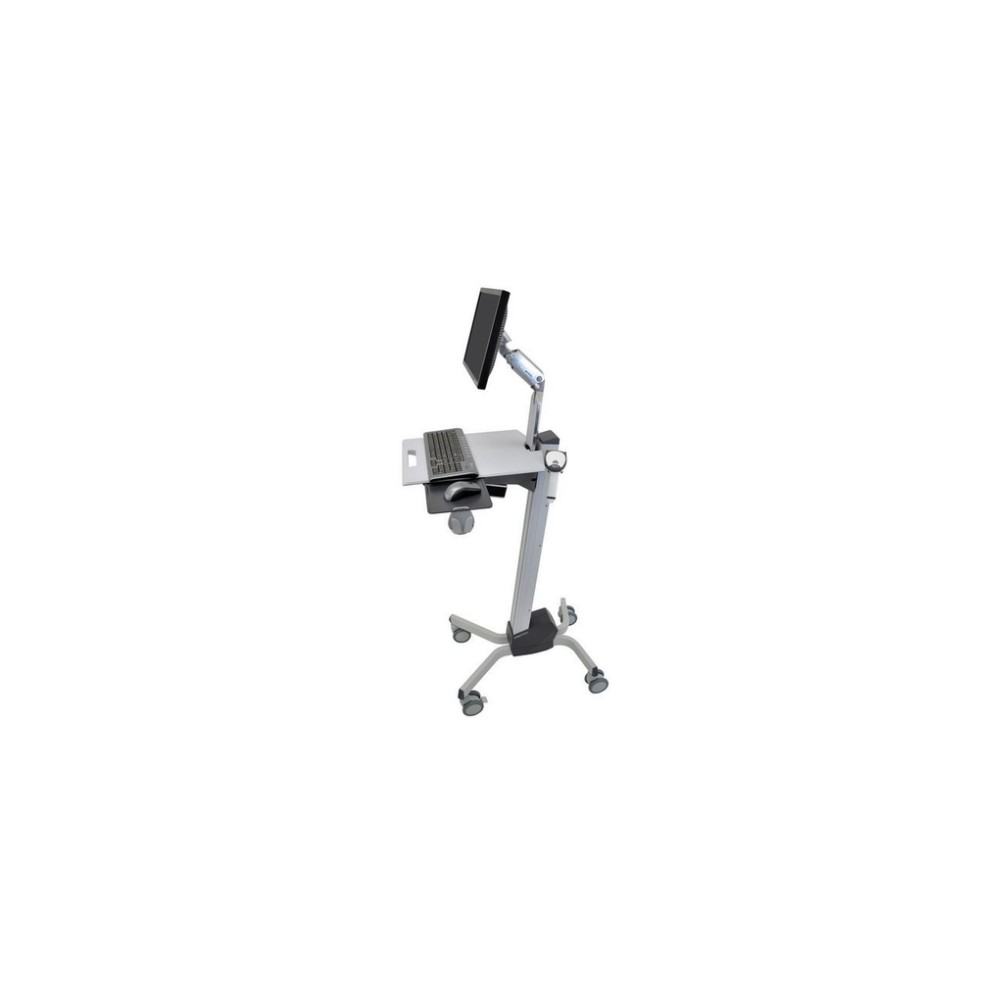

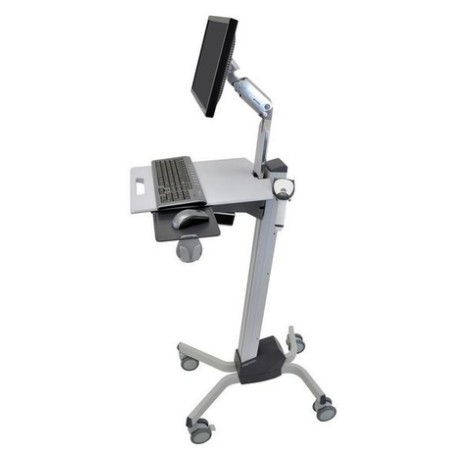

Ergotron 24-206-214 – Neo-Flex LCD Computer Cart, Two-Tone Grey
Overview
The Ergotron 24-206-214 is a Neo-Flex LCD Computer Cart designed to provide a mobile, height-adjustable computing workstation for applications requiring flexible sit-to-stand operation. The two-tone grey cart combines an adjustable LCD arm, integrated worksurface and keyboard tray, cable storage, scanner holder and mobile caster base in a compact workstation configuration.
The Neo-Flex LCD Cart uses Ergotron Constant Force technology for fluid height adjustment. The LCD and worksurface adjust together through a 20-inch (51 cm) range, while the LCD arm provides an additional 7 inches (17.8 cm) of independent adjustment, providing up to 27 inches (68.6 cm) of total LCD height adjustment.
Technical Information
The 24-206-214 supports displays up to 22 inches and a total maximum load of 26 lb (11.8 kg) on the height-adjustment assembly. This total includes the LCD arm load of 6–12 lb (2.7–5.4 kg), up to 6 lb (3.6 kg) for the worksurface, keyboard tray and cable storage area, and 2–8 lb (0.9–3.6 kg) for the quick-release VESA CPU mount.
The LCD arm supports 65° of screen tilt, 180° of side-to-side pan and 360° portrait/landscape rotation. The display mounting interface is VESA MIS-D with 75 x 75 mm and 100 x 100 mm mounting patterns.
The cart includes a quick-release VESA CPU mount for compatible thin-client computers. The integrated mount accommodates CPUs up to 10 x 10 x 3 inches (25 x 25 x 7.6 cm) when the computer uses a 75 x 75 mm or 100 x 100 mm VESA mounting pattern.
Compatibility
The Neo-Flex LCD Cart is designed for VESA-compatible displays up to 22 inches and compatible thin-client computers using 75 x 75 mm or 100 x 100 mm mounting patterns. The integrated VESA CPU mount supports computers up to 10 inches wide, 10 inches high and 3 inches deep within the specified mounting and weight limits.
For larger CPUs, Ergotron documentation specifies the optional Universal CPU Holder accessory. When that accessory is used, compatible CPU dimensions extend from 12 x 3 inches to 16 x 8.5 inches (300 x 80 mm to 406 x 220 mm), with a maximum additional CPU weight of 35 lb (15.9 kg).
Key Features
- Neo-Flex mobile LCD computer cart with sit-to-stand height adjustment.
- 27-inch (68.6 cm) total LCD height adjustment, including 20 inches of tandem adjustment and 7 inches of independent LCD-arm adjustment.
- Supports up to 22-inch displays with VESA MIS-D 75 x 75 mm and 100 x 100 mm mounting patterns.
- Integrated worksurface/keyboard tray, mouse trays, scanner holder, cable storage and quick-release VESA CPU mount.
- Constant Force lift technology and mobile four-caster base, with two locking casters and a 3-year warranty.
Applications
The Ergotron 24-206-214 is suited to mobile computing environments including clinical documentation, healthcare point-of-care workspaces, manufacturing floors, laboratories, distribution centers, IT diagnostic workstations and other high-activity areas where a computer workstation needs to move between users or locations.
DC Supplies Product Note
The exact MPN 24-206-214 identifies the Neo-Flex LCD Cart in two-tone grey. It should not be confused with the closely related 24-205-214 Neo-Flex Laptop Cart. The 24-206-214 is specifically the LCD-display configuration with an adjustable LCD arm, VESA display interface and integrated worksurface/keyboard tray.
Specifications
| Brand | Ergotron |
|---|
| Part Number | 24-206-214 |
|---|
| Product | Neo-Flex LCD Cart |
|---|
| Color | Two-tone grey |
|---|
| Typical LCD Size | Up to 22 in |
|---|
| Display Compatibility | Most VESA-compatible monitors |
|---|
| Display Weight Range | 6–12 lb (2.7–5.4 kg) on LCD arm |
|---|
| Total Height-Adjustment Assembly Capacity | 26 lb (11.8 kg) |
|---|
| LCD & Worksurface Tandem Adjustment | 20 in (51 cm) |
|---|
| Independent LCD Arm Adjustment | 7 in (17.8 cm) |
|---|
| Maximum LCD Height Adjustment | 27 in (68.6 cm) |
|---|
| Screen Tilt | 65° |
|---|
| LCD Pan | 180° |
|---|
| LCD Rotation | 360° portrait/landscape |
|---|
| VESA Standard | MIS-D |
|---|
| VESA Mounting Patterns | 75 x 75 mm and 100 x 100 mm |
|---|
| Integrated CPU Mount | Quick-release VESA CPU mount |
|---|
| Maximum Integrated CPU Size | 10 x 10 x 3 in (25 x 25 x 7.6 cm) |
|---|
| Integrated CPU Mount Capacity | 2–8 lb (0.9–3.6 kg) |
|---|
| Worksurface / Keyboard / Cable Storage Capacity | Up to 6 lb (3.6 kg) |
|---|
| Worksurface Dimensions | 16.5 x 20.5 in (42 x 52 cm) |
|---|
| Wheel-to-Wheel Base | 17.5 x 22.8 in (44.5 x 57.9 cm) |
|---|
| Product Weight | 38 lb (17.2 kg) |
|---|
| Shipping Dimensions | 21.75 x 15 x 45.25 in (55.2 x 38 x 115 cm) |
|---|
| Shipping Weight | 56 lb (25.4 kg) |
|---|
| Casters | 4 dual casters, 2 locking |
|---|
| Warranty | 3 years |
|---|
FAQs
What is the Ergotron 24-206-214?
The 24-206-214 is the Ergotron Neo-Flex LCD Cart, a mobile height-adjustable computer cart with an LCD arm, integrated worksurface and VESA-compatible CPU mounting system.
What size monitor does the 24-206-214 support?
The Neo-Flex LCD Cart is specified for displays up to 22 inches. Display weight must remain within the LCD-arm and overall height-adjustment assembly limits.
What is the maximum total load capacity?
The total maximum load on the height-adjustment assembly is 26 lb (11.8 kg). This includes the LCD arm, worksurface/keyboard/cable-storage area and quick-release VESA CPU mount.
How much height adjustment does the cart provide?
The LCD and worksurface adjust together through 20 inches (51 cm), while the LCD arm adds 7 inches (17.8 cm) of independent adjustment, providing up to 27 inches (68.6 cm) of maximum LCD height adjustment.
Does the LCD arm support monitor rotation?
Yes. The LCD arm provides 180° of pan and 360° of portrait/landscape rotation, with 65° of screen tilt.
What VESA patterns are supported?
The LCD mounting interface supports VESA MIS-D with 75 x 75 mm and 100 x 100 mm mounting patterns.
Can a thin client or mini PC be mounted to the cart?
Yes. The integrated quick-release VESA CPU mount accommodates compatible computers up to 10 x 10 x 3 inches (25 x 25 x 7.6 cm) using a 75 x 75 mm or 100 x 100 mm VESA mounting pattern.
Can a larger CPU be installed?
For larger computers, Ergotron specifies an optional Universal CPU Holder. With that accessory, compatible CPU dimensions can extend to 16 x 8.5 inches (406 x 220 mm), with a maximum added CPU weight of 35 lb (15.9 kg).
What is the worksurface size?
The integrated worksurface measures 16.5 x 20.5 inches (42 x 52 cm).
What is the warranty?
The Ergotron documentation specifies a 3-year warranty for the 24-206-214 Neo-Flex LCD Cart.
