Detailed Specifications

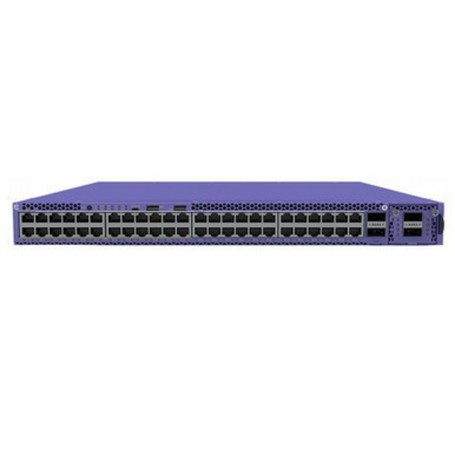

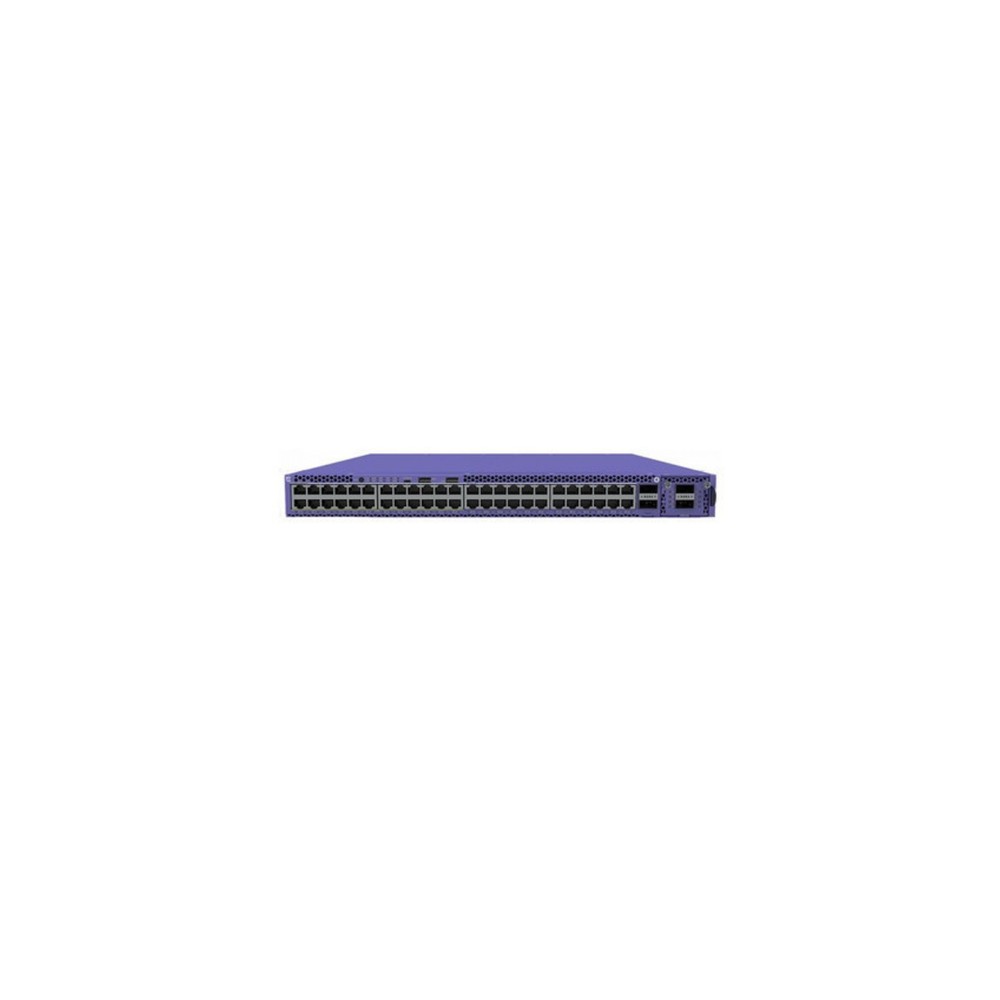

Extreme Networks 94311-X465I-48W Ethernet Switch
Overview :
The Extreme Networks 94311-X465I-48W (part of the X465 Series) is a premium, stackable Layer 3 managed switch engineered for high-performance enterprise edge and aggregation deployments.It provides 48 ports of Gigabit Ethernet connectivity with support for IEEE 802.3bt (90W) Power over Ethernet (PoE), making it an ideal back-end solution for high-density Wi-Fi 6 access points, IoT devices, and advanced edge infrastructure.
Powered by the ExtremeXOS operating system, this switch offers robust security through MACsec encryption, sophisticated routing capabilities, and versatile modular uplink options (10G/25G/40G) via a dedicated VIM5 slot.It is designed for resiliency, supporting up to 8-unit stacking via SummitStack-V160 technology.This model is intended for professional use in wiring closets and data centers where high availability and convergence-ready networking are required.
Key Features :
48 ports of 10/100/1000Base-T with 90W UPOE support.
Stackable architecture (up to 8 units) for high resiliency.
Modular uplinks via VIM5 slot (10G/25G/40G flexibility).
Enhanced security with 128/256-bit AES MACsec encryption.
Advanced real-time monitoring via Extreme Insight Architecture.
Specifications :
| Attribute | Detail |
| Brand | Extreme Networks |
| Part Number | 94311-X465I-48W |
| Product Type | Layer 3 Managed Stackable Switch |
| Network Ports | 48 x 10/100/1000Base-T (UPOE) |
| Stacking Ports | 2 x 40GbE QSFP+ |
| PoE Budget | Supports up to 90W per port (802.3bt) |
| Expansion Slot | 1 x VIM5 Module Slot |
| Switching Capacity | 364 Gbps |
| Forwarding Rate | 270.8 Mpps |
| Form Factor | 1U Rack-Mountable |
| RAM / Storage | 8 GB RAM / 120 GB SSD |
| Environmental | 0°C to 45°C operating temp |
