Overview

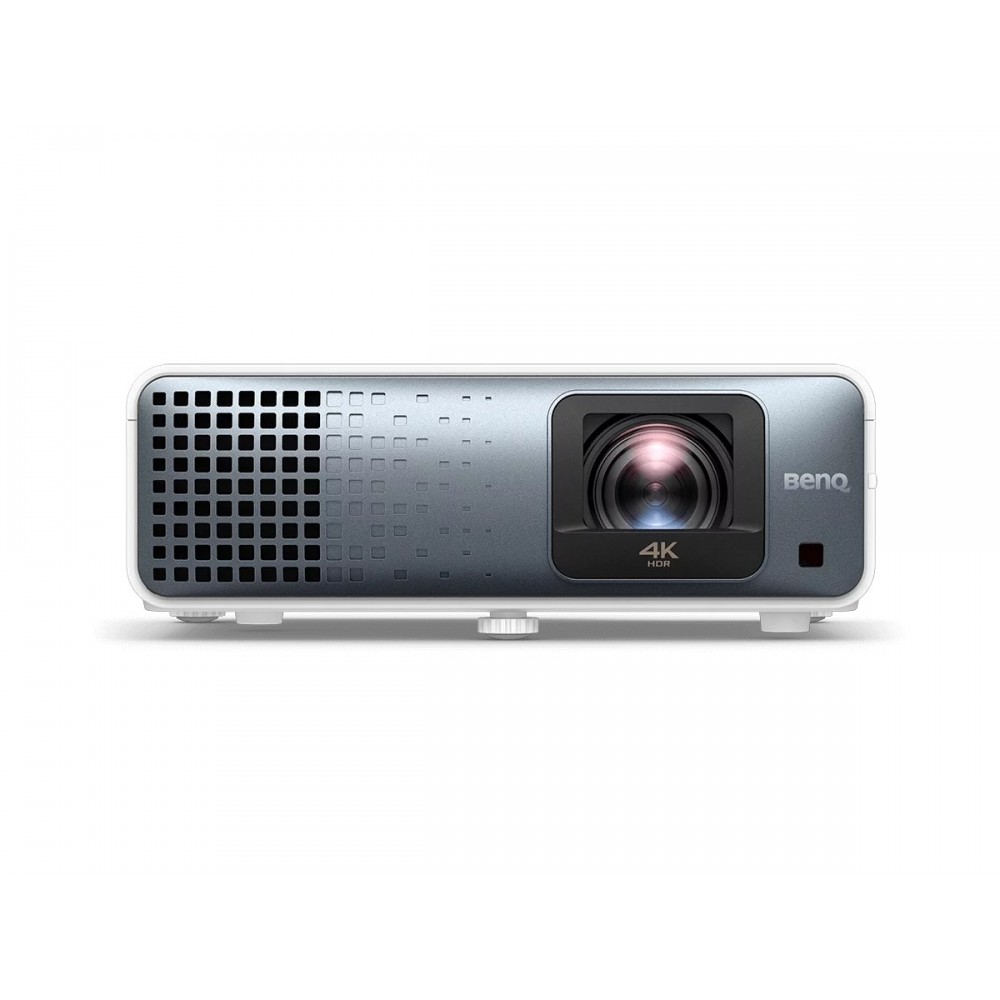

The BenQ TK710STi is a 4K UHD laser DLP projector designed for gaming, home entertainment, and golf simulation. Its short-throw optical system supports large-screen projection from a relatively short distance, while laser illumination provides a lamp-free light source. The projector combines HDR support, low input lag in supported gaming modes, and integrated Android TV functionality through the supplied QS02 dongle.
Projection and Image Quality
The projector uses 4K UHD resolution of 3840 × 2160 and produces 3,200 ANSI lumens of brightness. Its laser light source and stated 95% Rec. 709 color coverage support detailed images with a broad range of colors. HDR10 and HLG compatibility allows supported content to use high-dynamic-range picture information.
Short-Throw Optics and Placement
The 0.69–0.83 throw ratio and 1.2× optical zoom provide flexibility when positioning the projector relative to the screen. The projector supports image sizes up to 300 inches under suitable conditions. Vertical and horizontal keystone adjustment and picture rotation help correct image geometry when the projector cannot be positioned directly in front of the screen.
Gaming and Golf Simulation
BenQ specifies input lag as low as 4.2 ms at 1080p and 240 Hz, with supported gaming configurations. The projector also supports 4K at 60 Hz over its HDMI 2.0b inputs. For golf simulation, short-throw projection can help position the unit outside the hitting area, depending on screen dimensions, mounting location, and room layout.
Connectivity and Smart Features
Two HDMI 2.0b inputs with HDCP 2.2 support compatible video sources. Additional connections include a USB Type-A port, RS-232 control, and a 3.5 mm audio output. HDMI eARC supports compatible audio equipment, including Dolby Atmos pass-through where supported by the connected devices and signal format. The QS02 Android TV dongle provides smart streaming functionality.
Key Features
- 4K UHD DLP projection with 3,200 ANSI lumens of brightness.
- Laser light source rated for 20,000 hours in Normal and ECO modes according to the US specifications.
- Short-throw lens with a 0.69–0.83 throw ratio and 1.2× zoom.
- Gaming input lag as low as 4.2 ms at 1080p/240 Hz in the specified mode.
- Two HDMI 2.0b inputs, HDMI eARC, RS-232 control, and integrated QS02 Android TV dongle.
Applications
The TK710STi can be deployed in gaming rooms, home theaters, golf simulator installations, and presentation environments where a short-throw 4K laser projector is appropriate. Golf simulator installations should account for the screen size, hitting area, projector position, ambient lighting, and the output requirements of the simulation computer.
DC Supplies Product Note
Before installation, calculate the screen size and throw distance using the 0.69–0.83 throw ratio, and confirm the intended refresh rate and resolution are supported by the source device and HDMI connection. The listed dimensions are for the projector itself, not its packaging or mounting hardware.
Specifications
| Specification | Details |
|---|
| Brand | BenQ |
| Part Number / MPN | TK710STi |
| Product Type | 4K laser short-throw projector |
| Manufacturer Product Number | 9H.JSK77.17E (listed regional version) |
| Projection System | DLP |
| Native Resolution | 4K UHD, 3840 × 2160 |
| Brightness | 3,200 ANSI lumens |
| Native Aspect Ratio | 16:9 |
| Contrast Ratio | Up to 600,000:1 with light-source dimming (FOFO) |
| Display Colors | 30-bit, approximately 1.07 billion colors |
| Light Source | Laser |
| Light Source Life | 20,000 hours in Normal and ECO modes (US specification) |
| Throw Ratio | 0.69–0.83 |
| Optical Zoom | 1.2× |
| Rec. 709 Coverage | 95% |
| Maximum Projection Size | Up to 300 inches |
| Keystone Adjustment | Vertical ±30°, horizontal ±30°, rotation ±30° |
| HDMI Inputs | 2 × HDMI 2.0b with HDCP 2.2 |
| USB Interface | 1 × USB Type-A 2.0, 1.5 A power/service |
| Control Interface | 1 × RS-232, DB-9 |
| Audio Output | 3.5 mm mini jack |
| HDMI Audio Return | eARC |
| Built-in Speaker | 5 W |
| Smart TV Accessory | QS02 Android TV dongle listed by manufacturer |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Maximum Power Consumption | 275 W (110 V specification) |
| Standby Power Consumption | Less than 0.5 W |
| Operating Temperature | 0–40 °C |
| Acoustic Noise | 31 dB normal mode / 28 dB ECO mode |
| Dimensions (W × H × D) | 304.2 × 112.4 × 253.5 mm |
| Net Weight | 3.1 kg (approximately 6.8 lb) |
Frequently Asked Questions
Is the TK710STi a native 4K projector?
BenQ specifies 4K UHD output at 3840 × 2160 using its DLP projection system. The displayed image uses pixel-shifting technology to produce the specified 4K image resolution.
Is this projector suitable for a golf simulator?
Yes. BenQ markets the TK710STi for golf simulation. Confirm the throw distance, screen dimensions, mounting position, and simulator software output before installation.
Can the projector be used for gaming?
Yes. It supports 4K at 60 Hz and offers input lag as low as 4.2 ms at 1080p/240 Hz in the specified configuration. Actual performance depends on the selected resolution, refresh rate, source device, and operating mode.
Does it support external audio systems?
Yes. The projector provides a 3.5 mm audio output and HDMI eARC for compatible audio equipment. Confirm the required audio format and connection with the connected sound system.
Does the projector include an Android TV dongle?
The manufacturer lists the QS02 Android TV dongle among the accessories for the product. Confirm package contents for the exact regional SKU before purchasing.
