Product Overview

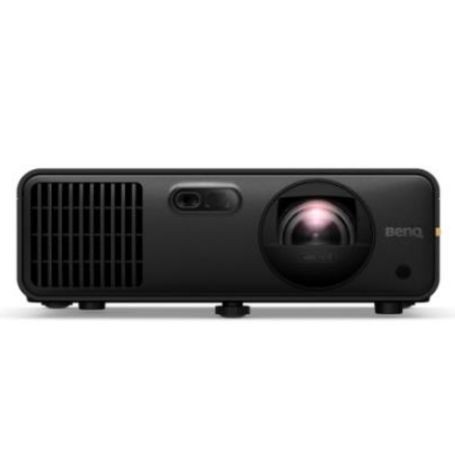

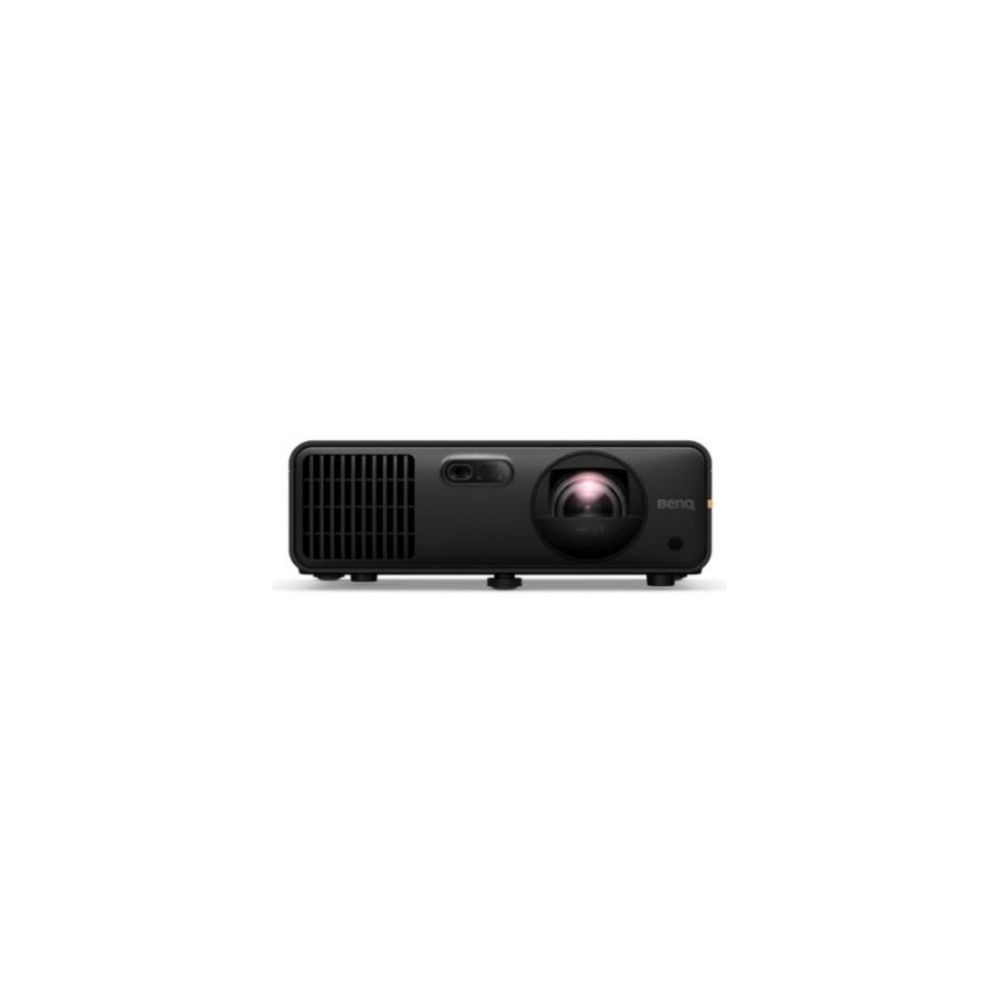

The BenQ AK700ST is a 4K UHD short-throw laser projector designed for golf simulators, home entertainment, sports viewing, and gaming. It combines 3840 × 2160 resolution with 4000 ANSI lumens of brightness, delivering detailed images for large projection screens.
Its 0.69–0.83 throw ratio and 1.2x motorized zoom provide flexibility when positioning the projector in a golf simulator room. Features such as Auto Screen Fit, Quick Focus, and 3D keystone correction help simplify image alignment during installation.
Key Features
- 4K UHD resolution: Displays detailed images at 3840 × 2160 resolution.
- 4000 ANSI lumens: Provides high-brightness projection for golf simulation and entertainment.
- Short-throw optics: A 0.69–0.83 throw ratio supports installation in rooms where projector placement distance is limited.
- Motorized zoom and focus: Includes 1.2x motorized zoom and Quick Focus to assist installation and image adjustment.
- Golf and entertainment modes: Dedicated Golf and Game modes, HDR10 and HLG support, and HDMI eARC audio return support versatile use.
Display and Projection Performance
The AK700ST uses a single-chip DLP projection system with a laser light source. It supports a native 16:9 aspect ratio and selectable screen-fill formats of 16:9, 16:10, 4:3, and 1:1.
BenQ specifies a 3,000,000:1 full-on/full-off contrast ratio and 95% Rec.709 colour coverage. HDR10 and HLG compatibility provides support for compatible high-dynamic-range content.
Golf Simulation and Gaming
The dedicated Golf Mode is designed to reproduce natural golf-course colours. Short-throw optics and flexible image adjustment features help accommodate golf simulator screens and different room layouts.
For gaming, BenQ specifies input lag of 16.7 ms at 1080p/120Hz and 8.4 ms at 1080p/240Hz. At 4K/60Hz, the specified input lag is 33.4 ms. Actual performance depends on the source signal and operating settings.
Connectivity and Audio
- 2 × HDMI 2.0b inputs with HDCP 2.2
- 2 × USB Type-A ports for service/power and an optional wireless dongle
- 1 × USB Type-C port supporting DisplayPort input and 5V/1A power output
- 1 × RS-232 control port (DB-9)
- HDMI eARC audio return supporting up to 7.1-channel audio
- Built-in 10W speaker
The HDMI eARC connection can send compatible audio to an external sound system. The built-in speaker provides onboard sound, while the USB ports support their specified service, power, and optional wireless-dongle functions.
Technical Specifications
| Specification | Details |
|---|
| Brand | BenQ |
| Part Number / MPN | AK700ST |
| Product Type | Short-throw laser golf projector |
| Projection System | Single-chip DLP |
| Native Resolution | 4K UHD, 3840 × 2160 |
| Brightness | 4000 ANSI lumens |
| Native Aspect Ratio | 16:9 |
| Contrast Ratio | 3,000,000:1 (FOFO) |
| Display Colour | 30-bit, up to 1.07 billion colours |
| Light Source | Laser |
| Light Source Life | Up to 20,000 hours |
| Throw Ratio | 0.69–0.83 |
| Zoom Ratio | 1.2x motorized zoom |
| Lens | F/2.53 (wide), f = 10.2 mm (wide) |
| Projection Offset | 102.5% of full image height |
| Keystone Correction | 3D correction; vertical ±30°, horizontal ±30°, rotation ±30° |
| Rec.709 Colour Coverage | 95% |
| HDR Support | HDR10, HLG |
| Supported Input Resolution | VGA through 4K UHD (3840 × 2160) |
| Input Lag | 16.7 ms at 1080p/120Hz; 8.4 ms at 1080p/240Hz; 33.4 ms at 1080p/60Hz and 4K/60Hz |
| HDMI Inputs | 2 × HDMI 2.0b, HDCP 2.2 |
| USB Connectivity | 2 × USB Type-A; 1 × USB Type-C with DisplayPort input and 5V/1A power output |
| Audio | Built-in 10W speaker; HDMI eARC, up to 7.1-channel audio |
| Control Interface | RS-232, DB-9 |
| Power Supply | AC 100–240V, 50/60Hz |
| Typical Power Consumption | 212W at 110V |
| Standby Power Consumption | Less than 0.5W |
| Operating Temperature | 0–40°C |
| Acoustic Noise | 32 dB normal mode; 29 dB economy mode |
| Dimensions (W × H × D) | 303.5 × 112.4 × 234.5 mm |
| Net Weight | Approximately 3.4 kg |
Installation and Compatibility
The AK700ST accepts supported video inputs up to 4K UHD resolution and is designed for 4K projection. Its short-throw lens, motorized zoom, Quick Focus, and screen-fit features provide options for adapting the projected image to the available room and screen.
Before installation, calculate the projector-to-screen distance for the desired image size and check the mounting position against the projector's 102.5% projection offset. For golf simulation, also consider ceiling height, the hitting area, and the golfer's swing clearance.
DC Supplies Product Note
For golf simulator installations, confirm your screen dimensions and mounting distance before ordering. The AK700ST's short-throw ratio and 1.2x motorized zoom offer positioning flexibility, but the final image size depends on the projector's placement and optical settings. An external audio system can be connected through compatible HDMI eARC equipment if additional sound output is required.
Frequently Asked Questions
Does the BenQ AK700ST support native 4K resolution?
Yes. Its specified native resolution is 3840 × 2160 (4K UHD), making it suitable for compatible 4K golf simulator content, movies, and other supported video sources.
Is the AK700ST suitable for golf simulators?
Yes. It is designed for golf simulation and includes a dedicated Golf Mode, short-throw optics, motorized zoom, and image-adjustment features to support simulator installations.
What is the throw ratio of the BenQ AK700ST?
The specified throw ratio is 0.69–0.83, with a 1.2x motorized zoom. Calculate the required projection distance using the intended screen dimensions before installation.
Can the AK700ST be used for gaming and movies?
Yes. It includes Game and Cinema picture modes, supports HDR10 and HLG, and offers published input-lag figures for several video modes. Performance depends on the selected resolution, refresh rate, and source device.
Can I connect an external sound system?
Yes. HDMI eARC supports audio return to compatible equipment, including systems supporting up to 7.1-channel audio. The projector also has a built-in 10W speaker.
Does the projector include wireless connectivity?
The specifications list support for an optional BenQ EZC-5201BS wireless USB dongle. Wireless functionality and the dongle's inclusion should be confirmed with the seller before purchase.
