Overview

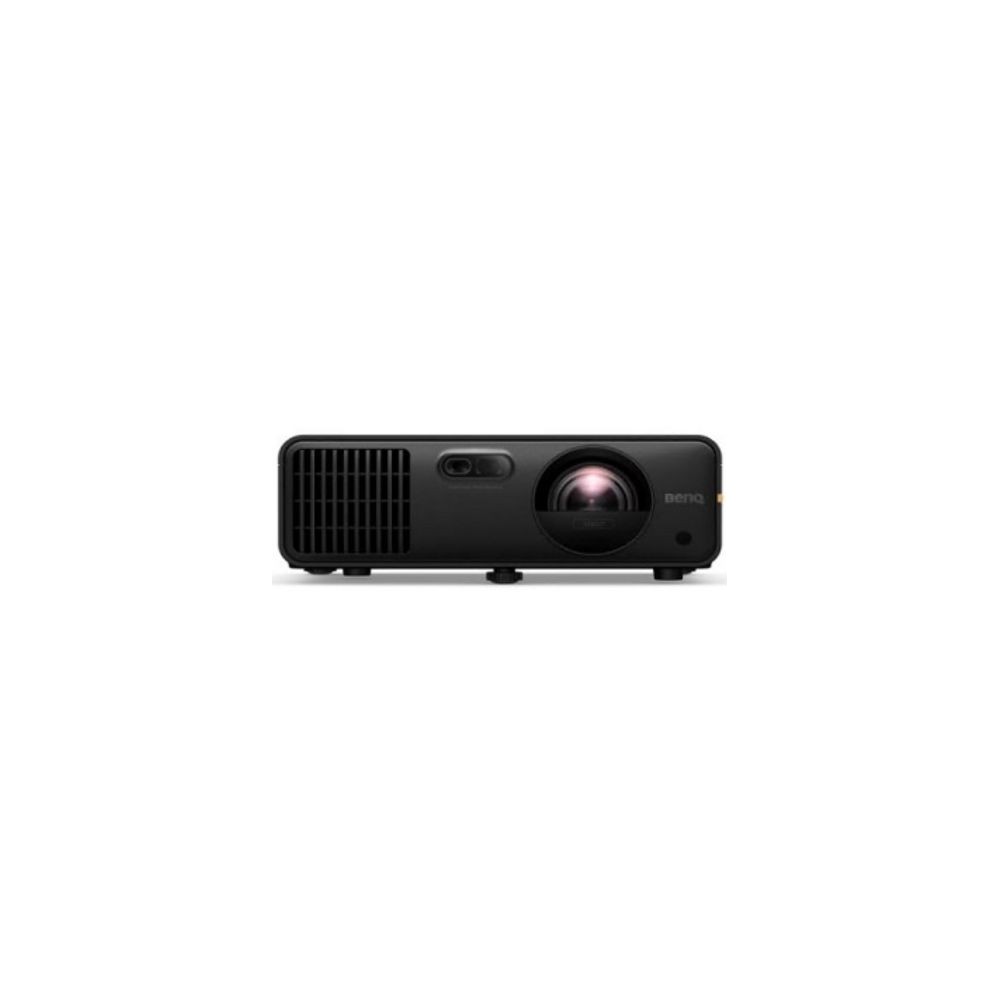

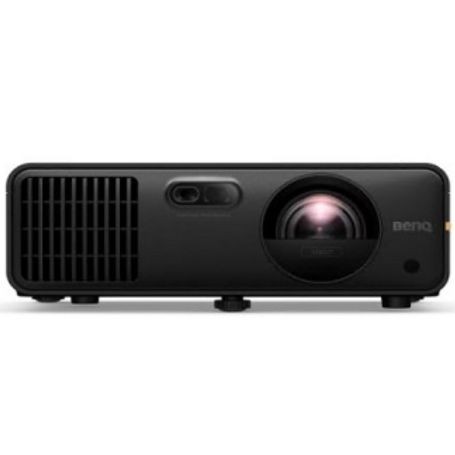

The BenQ AH700ST is a short-throw laser projector designed for golf simulation, sports, movies, and gaming. It combines 4000 ANSI lumens of brightness with native Full HD 1920 × 1080 resolution to deliver detailed images for indoor projection setups.
Its 0.69–0.83 throw ratio and 1.2x motorized zoom provide flexibility when positioning the projector in a golf simulator room or entertainment space. Automatic focus and screen-fit features help simplify installation, while the dedicated Golf Mode is designed to reproduce golf-course colours naturally.
Key Features
- 4000 ANSI lumens: Provides bright projection for large-screen indoor viewing.
- Native Full HD: Displays images at 1920 × 1080 resolution with a native 16:9 aspect ratio.
- Short-throw projection: The 0.69–0.83 throw ratio supports flexible positioning in golf simulator installations.
- Motorized zoom and setup assistance: Includes 1.2x zoom, automatic focus, and automatic screen-fit functionality.
- Golf and entertainment modes: Offers Golf Mode, Cinema Mode, HDR10 and HLG support, plus HDMI eARC audio return.
Technical Information
The AH700ST uses a single-chip DLP projection system with a laser light source rated for up to 20,000 hours. BenQ specifies a 3,000,000:1 full-on/full-off contrast ratio and 95% Rec.709 colour coverage.
For gaming, the projector supports an input lag of 16.7 ms at 1080p/120Hz and 33.4 ms at 1080p/60Hz. Actual performance depends on the input signal and configuration.
Connectivity
- 2 × HDMI 2.0b inputs with HDCP 2.2 support
- 1 × USB Type-A port for service and power supply
- 1 × USB Type-A port for an optional wireless dongle
- 1 × USB Type-C port with DisplayPort and 5V/1A power output
- 1 × RS-232 control port (DB-9)
- HDMI eARC audio return supporting up to 7.1-channel audio
The built-in 10W speaker provides onboard audio. HDMI eARC can be used with compatible external audio equipment for a more immersive sound setup.
Applications
- Golf simulators: Short-throw optics and Golf Mode support indoor golf simulation environments.
- Sports viewing: Full HD projection provides a large-screen option for watching sporting events.
- Home entertainment: Cinema Mode, HDR format support, and laser illumination suit movie viewing.
- Gaming: Supports 1080p/120Hz input with a specified 16.7 ms input lag.
- Dedicated simulator rooms: Motorized zoom and automatic setup functions help accommodate different room layouts.
Specifications
| Specification | Details |
|---|
| Brand | BenQ |
| Part Number / MPN | AH700ST |
| Product Type | Short-throw laser golf projector |
| Projection Technology | Single-chip DLP |
| Native Resolution | 1920 × 1080 (Full HD) |
| Brightness | 4000 ANSI lumens |
| Native Aspect Ratio | 16:9 |
| Contrast Ratio | 3,000,000:1 (FOFO) |
| Display Colour | 30-bit, up to 1.07 billion colours |
| Light Source | Laser |
| Light Source Life | Up to 20,000 hours |
| Throw Ratio | 0.69–0.83 |
| Zoom | 1.2x motorized zoom |
| Lens | F/2.53 (wide), f = 10.2 mm (wide) |
| Projection Offset | 102.5% of full image height |
| Keystone Correction | 2D; vertical ±30°, horizontal ±30° |
| Rec.709 Colour Coverage | 95% |
| HDR Support | HDR10, HLG |
| Input Lag | 16.7 ms at 1080p/120Hz; 33.4 ms at 1080p/60Hz |
| HDMI Inputs | 2 × HDMI 2.0b with HDCP 2.2 |
| USB Connectivity | 2 × USB Type-A; 1 × USB Type-C with DisplayPort and 5V/1A power output |
| Audio | Built-in 10W speaker; HDMI eARC supporting up to 7.1-channel audio |
| Control Interface | RS-232 (DB-9) |
| Power Supply | AC 100–240V, 50/60Hz |
| Typical Power Consumption | 192W at 110V |
| Standby Power Consumption | Less than 0.5W |
| Operating Temperature | 0–40°C |
| Noise Level | 32 dB normal mode; 29 dB economy mode |
| Dimensions (W × H × D) | 303.5 × 112.4 × 234.5 mm |
| Weight | Approximately 3.3 kg |
Compatibility
The AH700ST accepts input resolutions from VGA (640 × 480) through Full HD (1920 × 1080). The projector's native display resolution remains 1920 × 1080, so higher-resolution source content should not be interpreted as native 4K projection.
For external audio, use compatible equipment with HDMI eARC. The USB wireless-dongle connection is intended for an optional compatible BenQ wireless dongle; wireless functionality should not be assumed to be included as standard.
DC Supplies Product Note
Before purchasing for a golf simulator, check the projector-to-screen distance against the AH700ST's 0.69–0.83 throw ratio and confirm that the mounting position leaves sufficient clearance for the golfer's swing. The 1.2x motorized zoom offers adjustment flexibility, but the room layout and desired image size should still be planned in advance.
Frequently Asked Questions
Is the BenQ AH700ST a 4K projector?
No. Its native resolution is Full HD 1920 × 1080. It accepts supported input signals up to Full HD according to BenQ's published specifications.
Is this projector designed for golf simulation?
Yes. The AH700ST includes a dedicated Golf Mode and short-throw optics intended to support golf simulator installations. The final setup depends on the screen dimensions, room depth, mounting location, and simulator software.
What is the throw ratio of the AH700ST?
Its specified throw ratio is 0.69–0.83, with a 1.2x motorized zoom. Calculate the required projection distance for the intended screen size before finalising the installation.
Can I connect an external sound system?
Yes. The projector supports HDMI eARC audio return for compatible external audio equipment, including systems supporting up to 7.1-channel audio. Supported audio formats and playback depend on the connected devices and source.
Does it support high-refresh-rate gaming?
BenQ specifies an input lag of 16.7 ms at 1080p/120Hz. Confirm that the connected source and selected settings support the desired signal mode.
