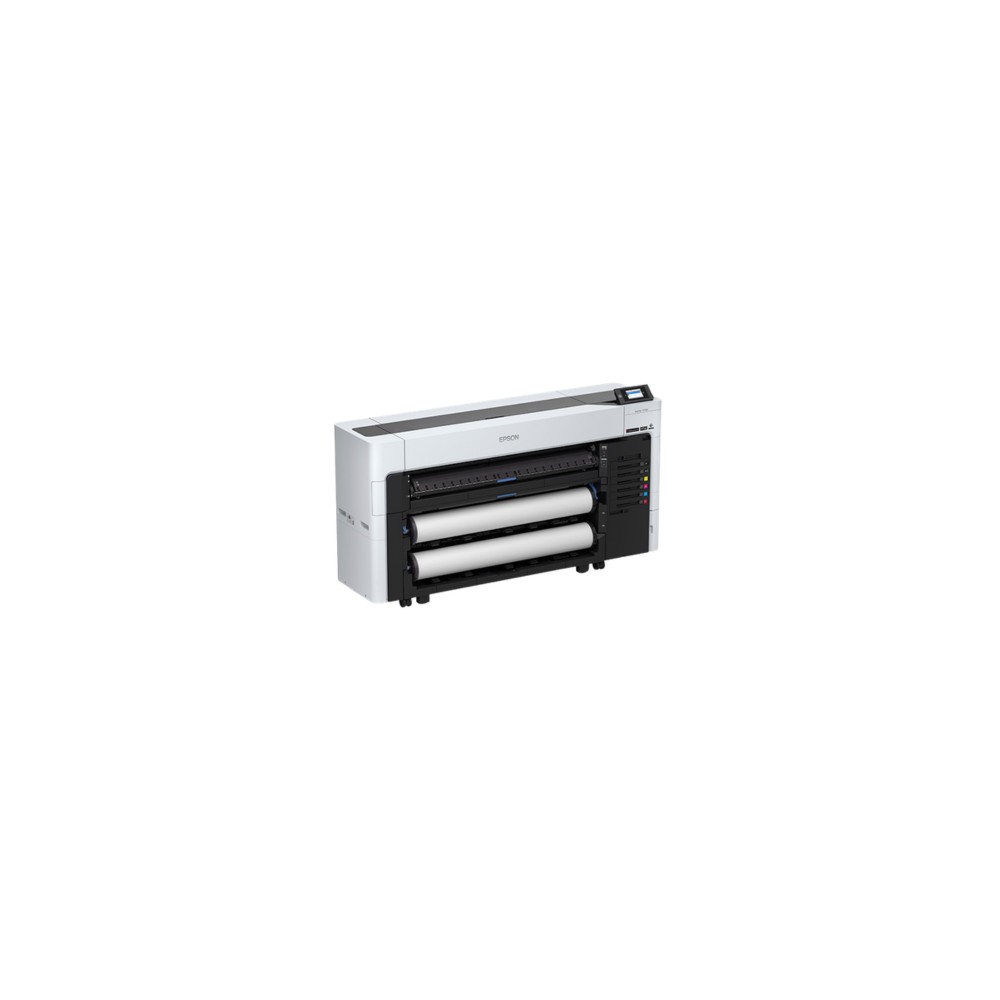

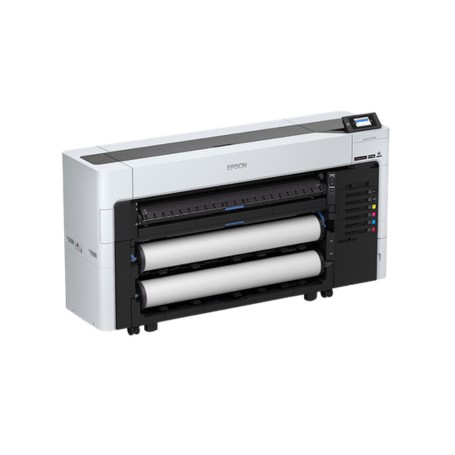

Epson SCT7770DM Multifunction Large-Format CAD Printer
Overview :
The Epson SCT7770DM SureColor T7770DM is a 44-inch large-format multifunction CAD, GIS, and production graphics printer designed for high-throughput engineering, architecture, construction documentation, and centralized reprographics workflows. It combines high-speed printing, scanning, and copying in a single integrated system to support end-to-end technical document production environments.
The system is built on Epson PrecisionCore MicroTFP printhead technology with UltraChrome XD3 six-color pigment ink, including a dedicated red ink channel for expanded color gamut and improved branding and technical graphics output. It delivers up to 2400 × 1200 dpi resolution and produces A1/D-size prints in as fast as 16 seconds for fast CAD and production workflows.
A key feature is the integrated 36-inch dual-light scanner that enables high-speed scanning and copying of wide-format documents without requiring separate hardware. The scanner supports high-speed monochrome and color capture with reduced document artifact visibility for improved accuracy in plan reproduction and archival digitization workflows.
The printer is designed for compact front-operation deployment, making it suitable for engineering offices, construction trailers, and centralized print rooms where space efficiency and workflow consolidation are critical. It supports wireless, Ethernet, and USB connectivity for integration into enterprise print infrastructures.
It is intended for CAD plotting, GIS mapping, posters, and technical production graphics. It is not designed for photographic fine-art reproduction or textile production environments requiring specialized ink systems or color-critical proofing workflows.
Key Features :
- Integrated 36-inch scan, print, and copy workflow system
- UltraChrome XD3 ink set with dedicated red channel support
- A1/D-size output in as fast as 16 seconds for CAD work
- 44-inch wide printing for large technical documents
- Compact front-access design optimized for office deployment
Specifications :
| Specification | Details |
|---|
| Brand | Epson |
| Part Number | SCT7770DM |
| Product Type | Multifunction Large-Format CAD Printer |
| Print Technology | PrecisionCore MicroTFP Inkjet |
| Maximum Print Width | 44 inches |
| Maximum Resolution | 2400 × 1200 dpi |
| Functions | Print, Scan, Copy |
| Ink System | UltraChrome XD3 Pigment Ink |
| Ink Colors | Cyan, Magenta, Yellow, Red, Photo Black, Matte Black |
| Print Speed | A1/D-size in as fast as 16 seconds |
| Scanner Type | 36-inch dual-light CIS scanner |
| Scan Resolution | Up to 600 dpi |
| Media Support | Roll and sheet media |
| Connectivity | USB, Ethernet, Wi-Fi |
