Detailed Specifications

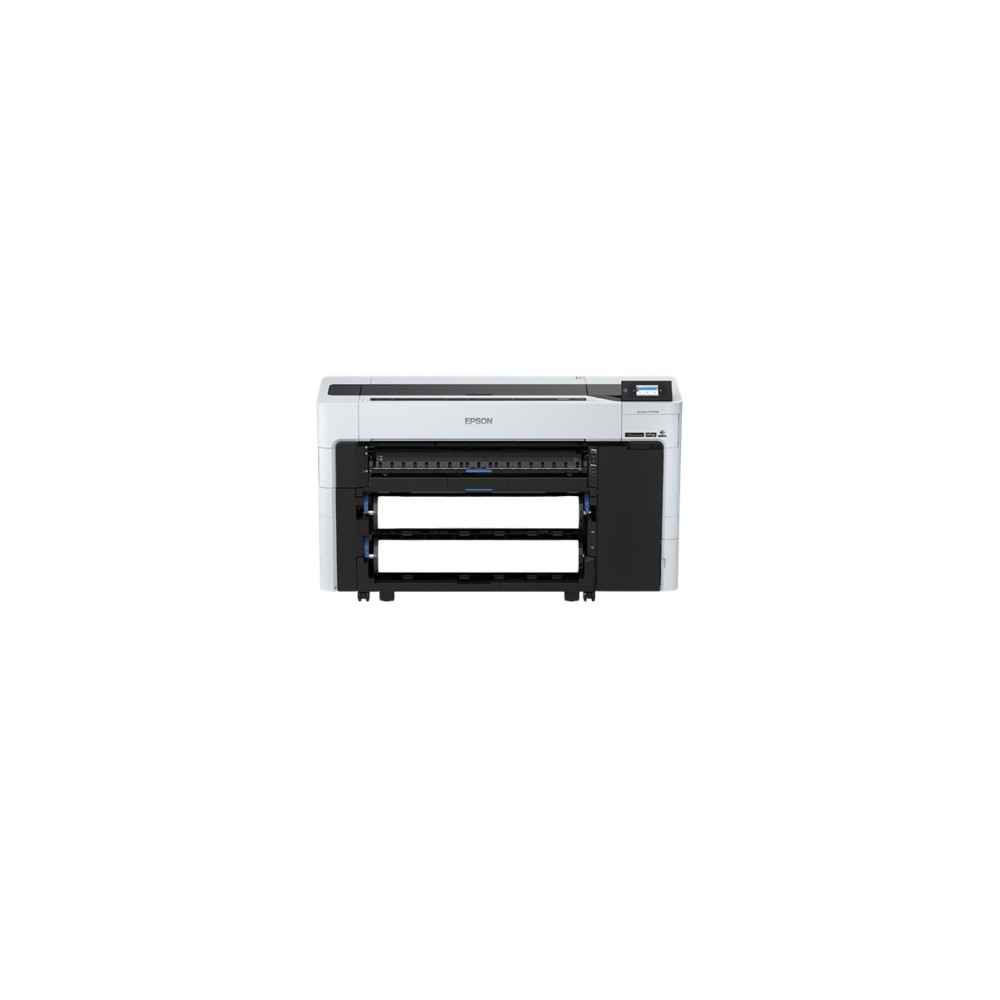

Epson SCT3770ESR Single-Roll CAD Technical Printer
Overview :
The Epson SCT3770ESR SureColor T3770E is a 24-inch single-roll large-format CAD and technical printer designed for engineering, architecture, construction documentation, GIS mapping, and office-based production printing environments. It focuses on compact deployment, high-speed output, and precise line accuracy for technical workflows where reliability and space efficiency are critical.
It is built on Epson's PrecisionCore MicroTFP printhead platform and uses UltraChrome XD3 pigment ink technology, enabling sharp line definition, durable prints, and expanded color performance with a dedicated red ink channel. The system supports high-resolution output up to 2400 × 1200 dpi and produces A1/D-size technical prints in approximately 16 seconds, supporting fast-turn CAD production workflows.
The printer features a compact, front-operating design optimized for small offices, construction site trailers, engineering departments, and decentralized workgroups. It supports roll media loading and is designed for straightforward operation with minimal maintenance overhead. Connectivity includes USB, Ethernet, and Wi-Fi for integration into standard enterprise IT environments.
This model is intended for single-roll environments where simplicity and cost efficiency are prioritized over multi-media or high-volume dual-roll production systems. It is not designed for photographic fine-art printing, textile workflows, or heavy production environments requiring continuous dual-roll operation.
Key Features :
- 2400 × 1200 dpi resolution for precise CAD output
- Single-roll design reduces system complexity and cost
- A1/D-size prints produced in ~16 seconds
- UltraChrome XD3 inks with dedicated red channel
- Compact footprint suitable for office deployment
Specifications :
| Specification | Details |
|---|
| Brand | Epson |
| Part Number | SCT3770ESR |
| Product Type | Single-Roll CAD Technical Printer |
| Print Technology | PrecisionCore MicroTFP Inkjet |
| Maximum Print Width | 24 inches |
| Maximum Resolution | 2400 × 1200 dpi |
| Ink Type | UltraChrome XD3 Pigment Ink |
| Ink Colors | Cyan, Magenta, Yellow, Red, Photo Black, Matte Black |
| Print Speed | A1/D-size in ~16 seconds |
| Roll System | Single Roll |
| Borderless Printing | Supported |
| Connectivity | USB, Ethernet, Wi-Fi |
| Media Support | Bond, matte, glossy, technical paper |
| Deployment Type | Office / Engineering Workgroup |
| Application | CAD, GIS, technical drawings |
