Detailed Specifications

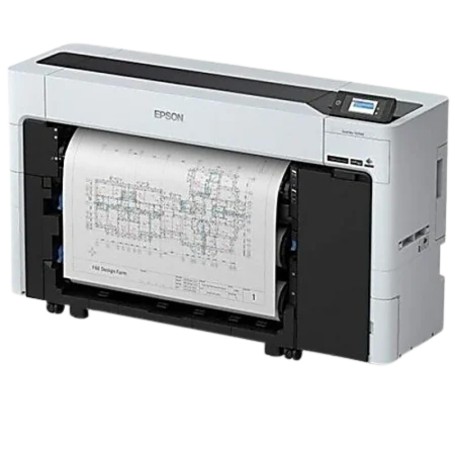

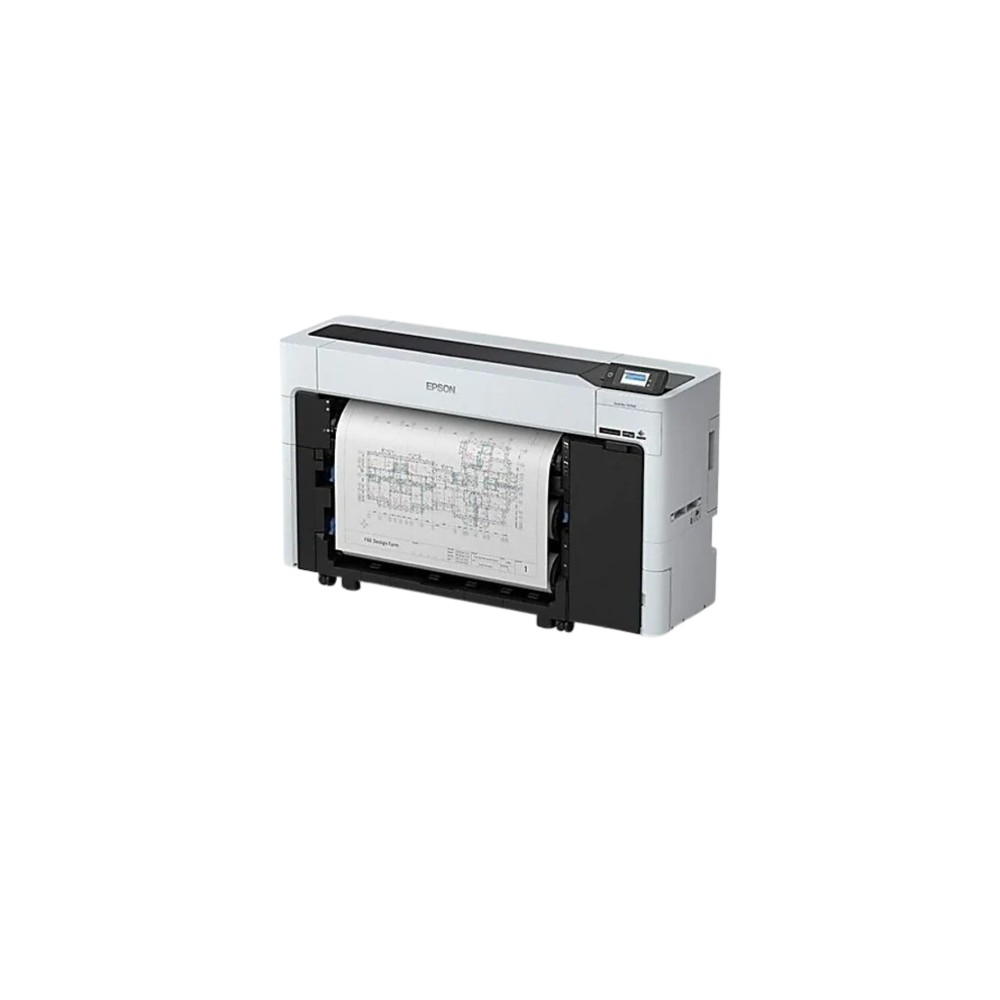

Epson SCT5770DR SureColor T5770DR 36-Inch Dual-Roll CAD/Technical Printer
Overview :
The Epson SCT5770DR SureColor T5770DR is a 36-inch large-format CAD and technical printer engineered for architecture, engineering, construction, GIS, and production graphics environments requiring high-speed output with advanced media flexibility. It is designed for enterprise print rooms, technical departments, and production-focused workflows where rapid document turnaround and color precision are critical.
The printer uses Epson PrecisionCore MicroTFP printhead technology with UltraChrome XD3 pigment inks, including dedicated red ink for enhanced branding graphics and color reproduction. It supports print resolutions up to 2400 × 1200 dpi and produces A1/D-size technical prints in as little as 16 seconds for high-volume CAD and graphics workflows.
Its integrated dual-roll system supports simultaneous loading of multiple media types or roll-to-roll production workflows using the integrated take-up reel. The compact all-front-access design simplifies installation and operation in constrained office spaces, centralized print environments, and distributed engineering departments. Adobe Embedded Print Engine support enables native PDF and PostScript processing for streamlined enterprise printing.
The printer supports glossy, matte, technical, bond, specialty media, and rigid posterboard up to 1.5 mm thick. It is suitable for CAD plotting, GIS mapping, posters, retail graphics, and presentation materials but is not intended for textile printing or photographic fine-art production workflows.
Key Features :
- Dual-roll system supports continuous media workflows
- 2400 × 1200 dpi output improves CAD precision
- Produces A1 technical prints in 16 seconds
- UltraChrome XD3 inks include dedicated red ink
- Adobe print engine improves PDF processing speed
Specifications :
| Specification | Details |
|---|
| Brand | Epson |
| Part Number | SCT5770DR |
| Product Type | Large-Format Dual-Roll CAD Printer |
| Print Technology | PrecisionCore MicroTFP Inkjet |
| Maximum Print Width | 36 inches |
| Maximum Resolution | 2400 × 1200 dpi |
| Ink Type | UltraChrome XD3 Pigment Ink |
| Ink Colors | Cyan, Magenta, Yellow, Red, Photo Black, Matte Black |
| Print Speed | A1/D-size print in 16 seconds |
| Roll Configuration | Dual Roll with Take-Up Reel |
| Media Thickness Support | Up to 1.5 mm |
| Borderless Printing | Supported |
| Connectivity | USB 3.0, Gigabit Ethernet, Wi-Fi |
| Printer Languages | Adobe PDF 1.7, PostScript 3, HP-GL/2 |
| Display | 4.3-inch touchscreen LCD |
