Detailed Specifications

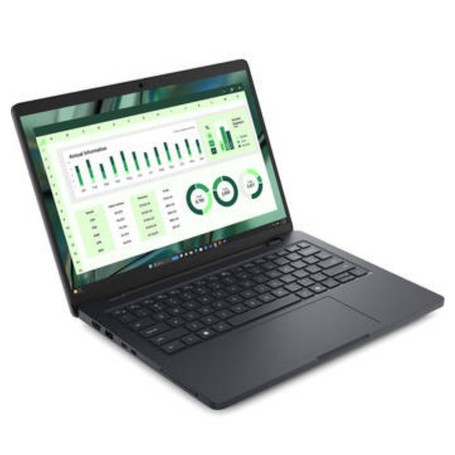

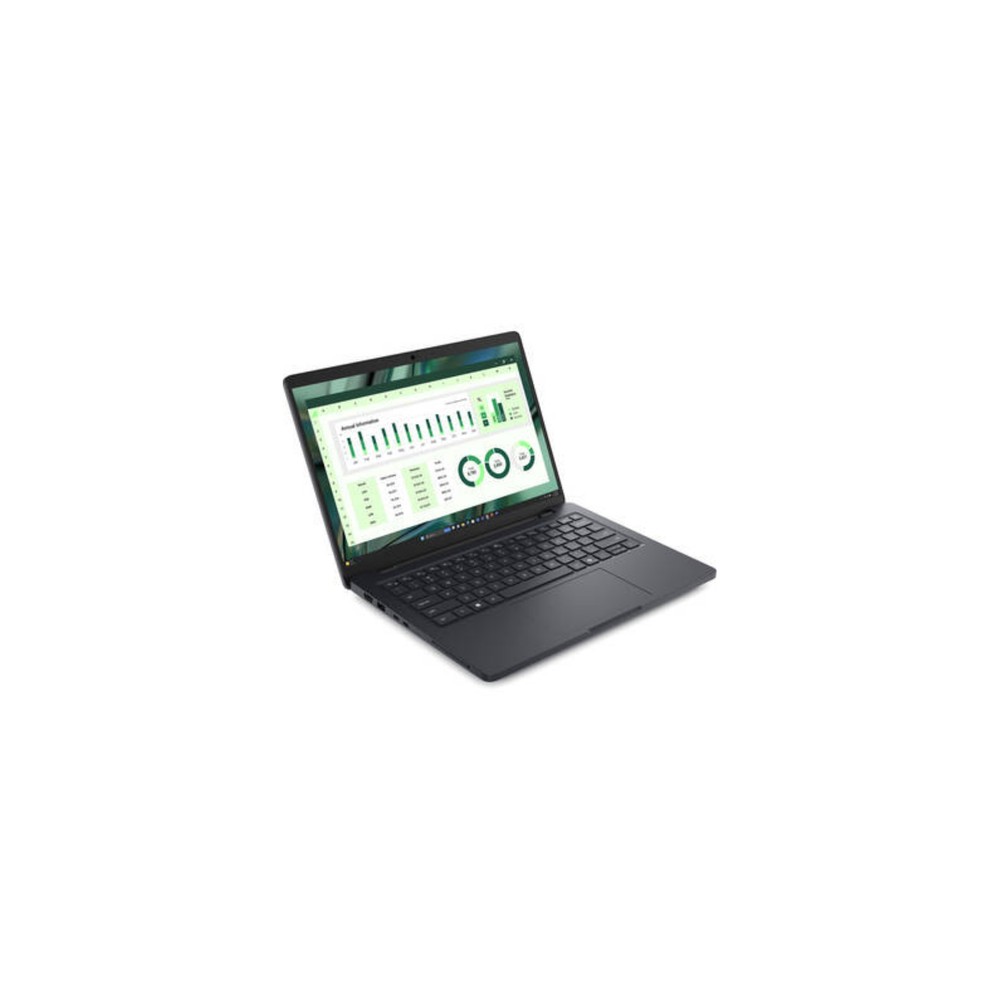

Dell WH1X1 Pro Max 14 MC14250 with Intel Core Ultra 5 225H
Overview :
The Dell WH1X1 is a high-performance 14-inch Pro Max 14 laptop engineered for professional AI acceleration and efficient mobile productivity. It is powered by the Intel Core Ultra 5 225H processor, a 14-core unit (6 Performance, 8 Efficiency, and 2 Low-Power Efficiency cores) designed for heavy multitasking. A core feature of this system is the integrated Intel AI Boost NPU, which provides 13 TOPS of localized performance. This dedicated AI engine facilitates smoother background management for video conferencing, real-time data security, and specialized AI creative tools without depleting primary CPU resources.
Technical specifications include 16GB of high-speed LPDDR5x-7500 memory utilizing the innovative LPCAMM (Low Power Compression Attached Memory Module) form factor, which is user-replaceable and supports future upgrades to 64GB. The system is equipped with a 256GB PCIe NVMe SSD. The 14-inch FHD+ (1920 x 1200) VA LCD display provides a 16:10 aspect ratio for increased vertical viewing area, 300 nits of brightness, and an anti-glare finish, making it a versatile tool for data analysis and content review.
Designed for professional-grade connectivity, the WH1X1 features next-generation Wi-Fi 7 and dual Thunderbolt 4 ports for 40Gbps data and docking. It includes a native RJ45 Gigabit Ethernet port, a rarity in modern 14-inch ultra-portables, ensuring reliable high-speed wired networking. With a 1080p HDR webcam, stereo speakers with Wave MAXXAudio Pro, and hardware-level TPM 2.0 security, this laptop is a complete solution for hybrid workers requiring elite AI hardware in a durable, managed platform.
Key Features :
Intel Core Ultra 5 225H 14-core CPU with integrated Intel AI Boost NPU
16GB LPDDR5x-7500 memory (LPCAMM) supports expansion up to 64GB
14" FHD+ 16:10 display with 300 nits and anti-glare for mobile productivity
Native RJ45 Gigabit Ethernet and dual Thunderbolt 4 ports for pro connectivity
Next-gen Wi-Fi 7 and Bluetooth 5.4 support the latest wireless standards
Specifications :
| Technical Specifications | Details |
| Brand | Dell |
| Part Number | WH1X1 |
| Product Type | Pro Max 14 MC14250 Laptop |
| Processor | Intel Core Ultra 5 225H (Series 2) |
| Core Count | 14-Core (6P + 8E + 2LPE) up to 4.9 GHz |
| NPU Performance | 13 TOPS (Intel AI Boost) |
| Standard Memory | 16 GB LPDDR5x 7500 MT/s (LPCAMM) |
| Storage | 256 GB M.2 PCIe NVMe SSD |
| Display | 14" FHD+ (1920 x 1200) VA LCD, 300 nits, Anti-glare |
| Graphics | Intel Arc Graphics 130T (Integrated) |
| Wireless | Wi-Fi 7 (802.11be), Bluetooth 5.4 |
| Interfaces | 2x Thunderbolt 4, 2x USB 3.2 Gen 1, 1x HDMI 2.1, 1x RJ45 |
| Camera | 1080p RGB + IR Camera with HDR and Shutter |
| Security | TPM 2.0, Facial Recognition, Wedge-shaped Lock Slot |
| Battery | 4-Cell 72 Wh with ExpressCharge |
