Detailed Specifications

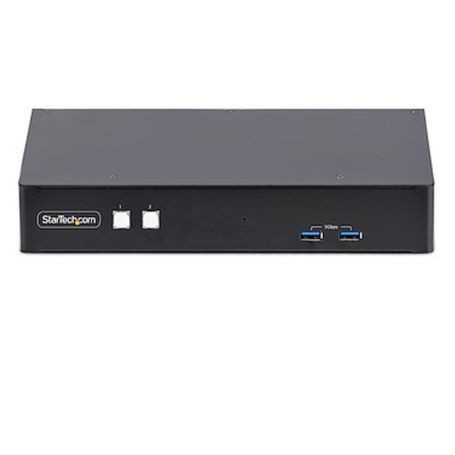

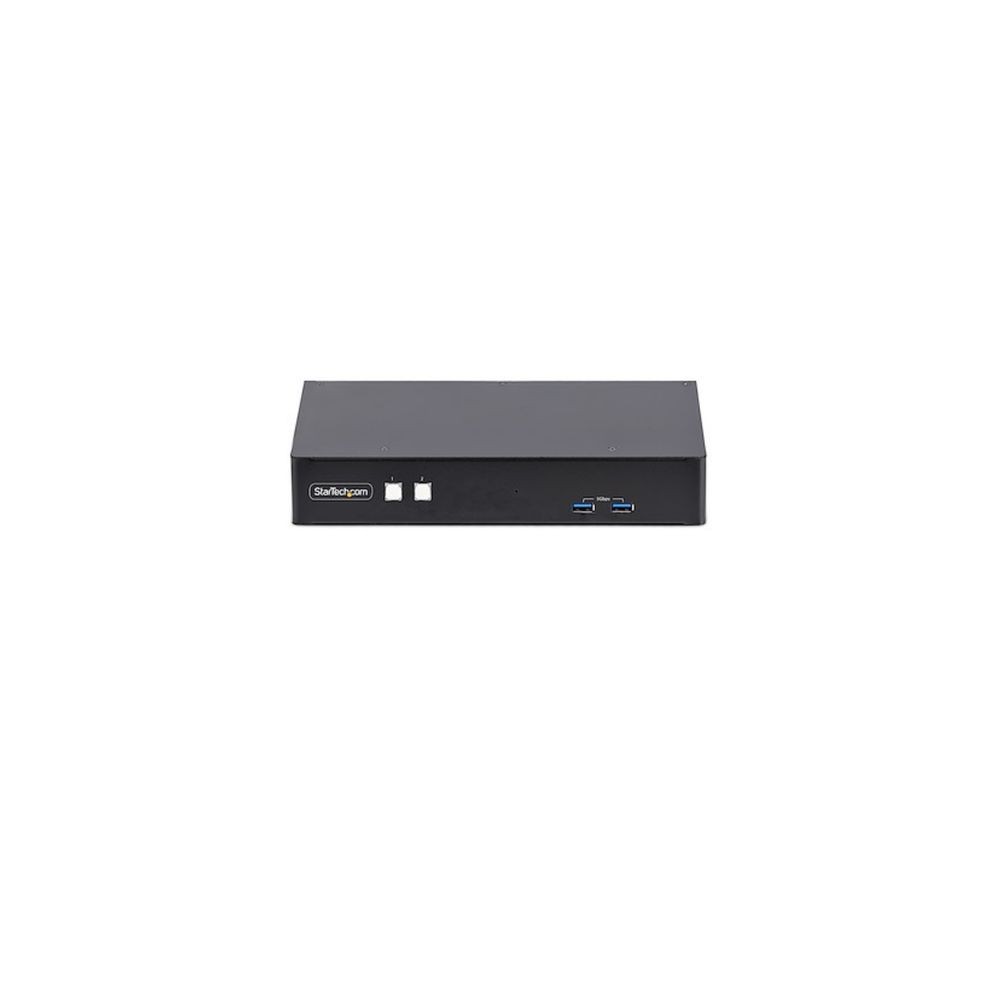

StarTech P2DD46A22-KVM-SWITCH 2-Port Dual Display 4K 60Hz KVM
Overview :
The StarTech P2DD46A22-KVM-SWITCH is a professional-grade TAA-compliant KVM designed for dual-monitor workstations requiring high-resolution video and peripheral sharing between two computers. It streamlines desk footprints by allowing a single set of dual DisplayPort monitors, keyboard, and mouse to control two distinct systems.
Equipped with a built-in 2-port USB 3.2 Gen 1 (5Gbps) hub and dedicated 3.5mm audio ports, it handles high-speed data peripherals and independent audio switching. The switch supports DisplayPort 1.2, providing consistent 4K performance at 60Hz across both screens without signal degradation.
Optimized for IT professionals, designers, and financial analysts, this unit is intended for desktop or lab bench deployment. It features versatile switching via front-panel buttons or keyboard hotkeys. Note that this passive video switch requires high-quality certified DisplayPort cables and is not compatible with HDMI-only monitors without active conversion.
key features :
Dual 4K 60Hz support provides high-resolution across two displays.
Integrated USB 3.2 Gen 1 hub for fast peripheral data transfers.
Front-panel buttons and hotkeys allow for rapid system toggling.
Independent audio switching prevents interruption of sound feeds.
TAA-compliant hardware ensures suitability for government contracts.
Specifications :
| Specification | Value |
| Brand | StarTech |
| Part Number | P2DD46A22-KVM-SWITCH |
| Product Type | KVM Switch |
| Number of Ports | 2 |
| Video Interface | DisplayPort 1.2 |
| Max Resolution | 3840 x 2160 @ 60Hz |
| USB Hub | 2x USB 3.2 Gen 1 (Type-A) |
| Console Interface | 2x DisplayPort, 2x USB 2.0 (HID), 2x Audio |
| Host Interface | 4x DisplayPort, 2x USB 3.0 (Type-B), 4x Audio |
| Audio Support | Yes (3.5mm Analog) |
| Switching Methods | Front-Panel Buttons, Hotkeys |
| Power Source | 12V DC External Adapter |
| Construction | Steel Enclosure |
| Compliance | TAA, CE, FCC, REACH |
