Detailed Specifications

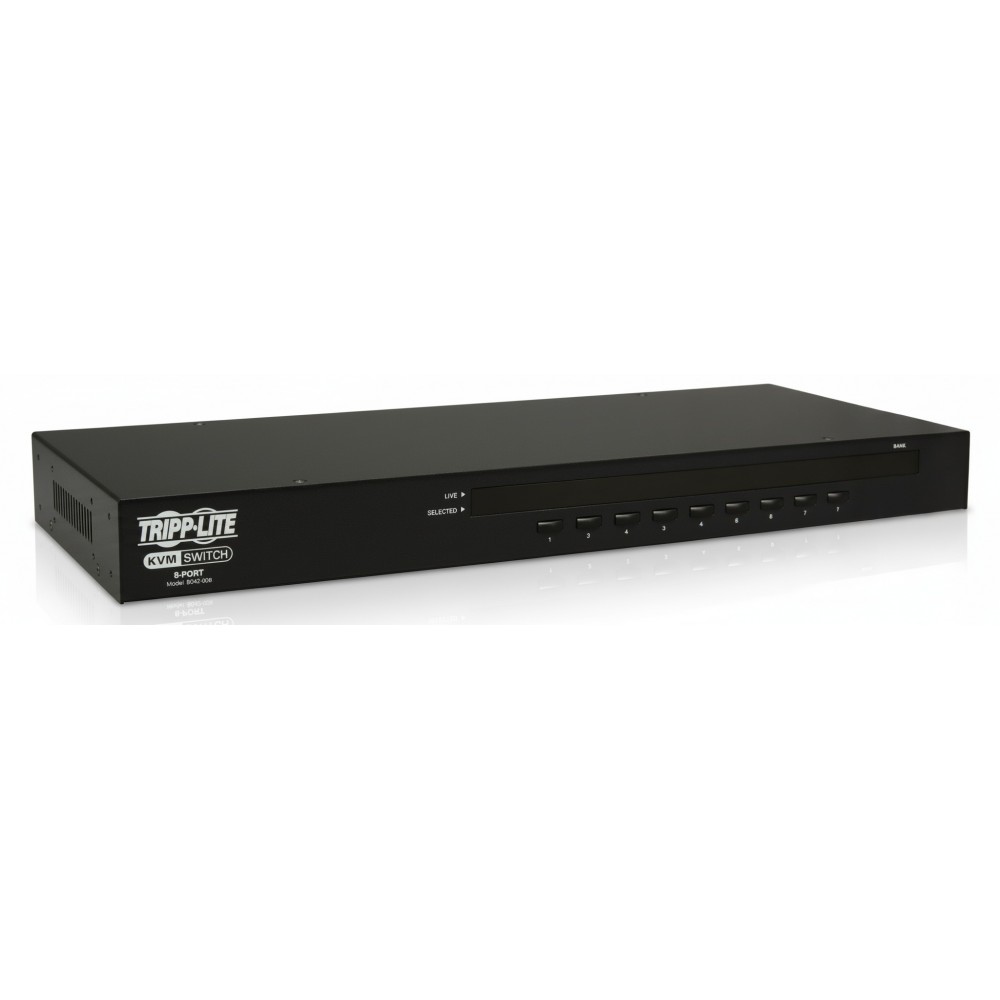

Eaton B042-008 - 8-Port Rackmount KVM Switch
Overview :
The Eaton B042-008 is an 8-port, 1U rack-mount KVM switch designed for data centers, server rooms, or network closets where multiple servers or PCs need consolidated control through a single console. It allows one user to manage up to eight computers with a single VGA monitor plus a USB or PS/2 keyboard and mouse, reducing rack complexity and keyboard-monitor clutter. The unit supports daisy-chaining: by connecting additional B042-series switches, it can control up to 248 systems, making it practical for small-to-medium server farms or lab/edge deployments. Built in a standard 19-inch rack form factor with a heavy-duty steel housing, it fits easily into typical rack infrastructures and integrates with standard VGA and USB/PS2 peripherals. Its support for all major operating systems and on-screen menu selection ensures compatibility across mixed environments and simplifies console management at the rack or edge.
Key Features
8 computer ports with USB or PS/2 keyboard and mouse control
Single VGA console supports up to 2048 × 1536 resolution
Daisy-chain up to 248 systems total with additional units
Rack-mountable 1U steel housing for standard server cabinets
Password protection, firmware upgradeable, hot-swappable ports
Technical Specifications
| Attribute | Value |
|---|
| Brand | Eaton (Tripp Lite) |
| Part Number | B042-008 |
| Product Type | Rack-mount KVM Switch |
| Number of Computer Ports | 8 |
| Console Interface | VGA monitor + USB or PS/2 keyboard & mouse |
| Max Video Resolution | 2048 × 1536 @ 60 Hz |
| Form Factor / Rack Height | 1U, 19-inch rack |
| Dimensions (HxWxD) | 1.8 × 16.1 × 6.5 in |
| Weight | 4.3 lb |
| Power Consumption | 6.4 W |
| Input Power | External adapter: 100-240 V AC → 9 V DC, 1.33 A |
| Operating Temperature | 32-104 °F (0-40 °C) |
| Storage Temperature | -4-140 °F (-20-60 °C) |
| Supported OS | All major operating systems (USB/PS2 and VGA) |
| Daisy-chain Capability | Yes × up to 248 total ports (15 additional units) |
| Housing Material | Heavy-duty steel |
