Detailed Specifications

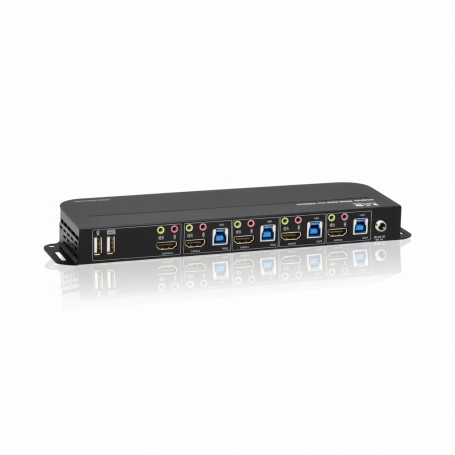

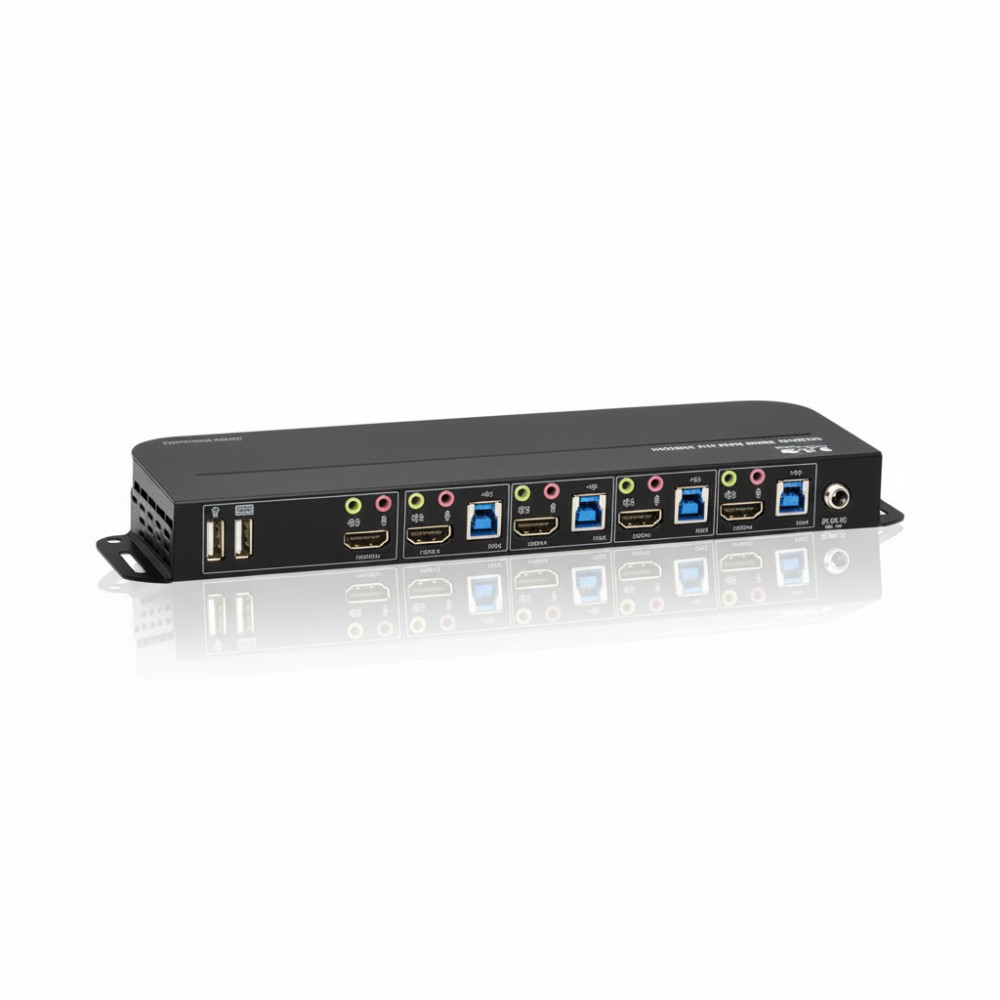

Eaton B005-HUA4 - 4 Port HDMI/USB KVM Switch
Overview :
The Eaton B005-HUA4 is a 4-port HDMI/USB KVM switch designed for IT engineers and infrastructure teams managing multiple HDMI-enabled computers or A/V devices. It allows one console (HDMI monitor + USB keyboard/mouse) to control up to four separate computers, simplifying deployments in multi-server workstations, control rooms or edge A/V aggregation points. The unit supports native UHD resolution up to 4096 × 2160 at 60 Hz with full 4:4:4 chroma subsampling, HDR and HDCP 2.2 compliance, making it capable of professional-grade video distribution. Its compact metal housing, included mounting brackets and plug-and-play operation make it suitable for branch offices, data-center workstations, campus AV racks or edge operator stations where space and flexibility matter. Compatible with Windows, macOS and Linux, it integrates into existing console workflows without special drivers.
Key Features :
Supports true 4K (4096×2160) @ 60 Hz with HDR and 4:4:4 chroma.
HDCP 2.2 compliance with 7.1-channel audio support.
Integrated USB hub allows sharing of peripherals across four computers.
Front-panel push-buttons, IR remote, hot-key and autoscan features for simple switching.
Specifications :
| Spec Category | Value |
|---|
| Brand | Eaton (Tripp Lite) |
| Part Number | B005-HUA4 |
| Product Type | 4-Port HDMI/USB KVM Switch |
| Maximum Video Resolution | 4096 × 2160 @ 60 Hz |
| Chroma Sub-Sampling | 4:2:0; 4:2:2; 4:4:4 |
| Color Depth | 36-bit Deep Color |
| Audio Specification | 7.1 Surround Sound |
| USB Hub Ports | 2 hub ports (USB 3.0 / USB 3.1 Gen 1 up to 5 Gbps) |
| External Power Supply Input | 100-240 V AC, 50/60 Hz, 0.5 A |
| External Power Supply Output | 5 V DC @ 3 A |
| Unit Dimensions (HxWxD) | 1.02" × 9.57" × 2.95" |
| Unit Weight | 1.107 lbs |
| Operating Temperature Range | 32 °F to 113 °F (0 °C to 45 °C) |
| Storage Temperature Range | 14 °F to 176 °F (-10 °C to 80 °C) |
| ESD Protection | ± 8kV air-gap discharge; ± 4kV contact |
