Detailed Specifications
Eaton B064-016-01-IPG - 16-Port Cat5 KVM over IP Switch
Overview
The Eaton B064-016-01-IPG is a Cat5 KVM over IP switch designed to provide centralized keyboard-video-mouse control of multiple servers or systems both locally and remotely. It is used by data center operators, server room administrators, and infrastructure teams where consolidated management of up to 16 systems from a single console×with remote access capability×is required. This unit is not a network router or Ethernet switch; it is a secure server console aggregation appliance with IP-based management.
This KVM supports up to 16 connected computers/servers over structured cabling (Cat5/5e/6) and allows one local user and one remote user to access and control those systems simultaneously. It provides BIOS-level access and supports virtual media functionality for remote software installation or diagnostics.

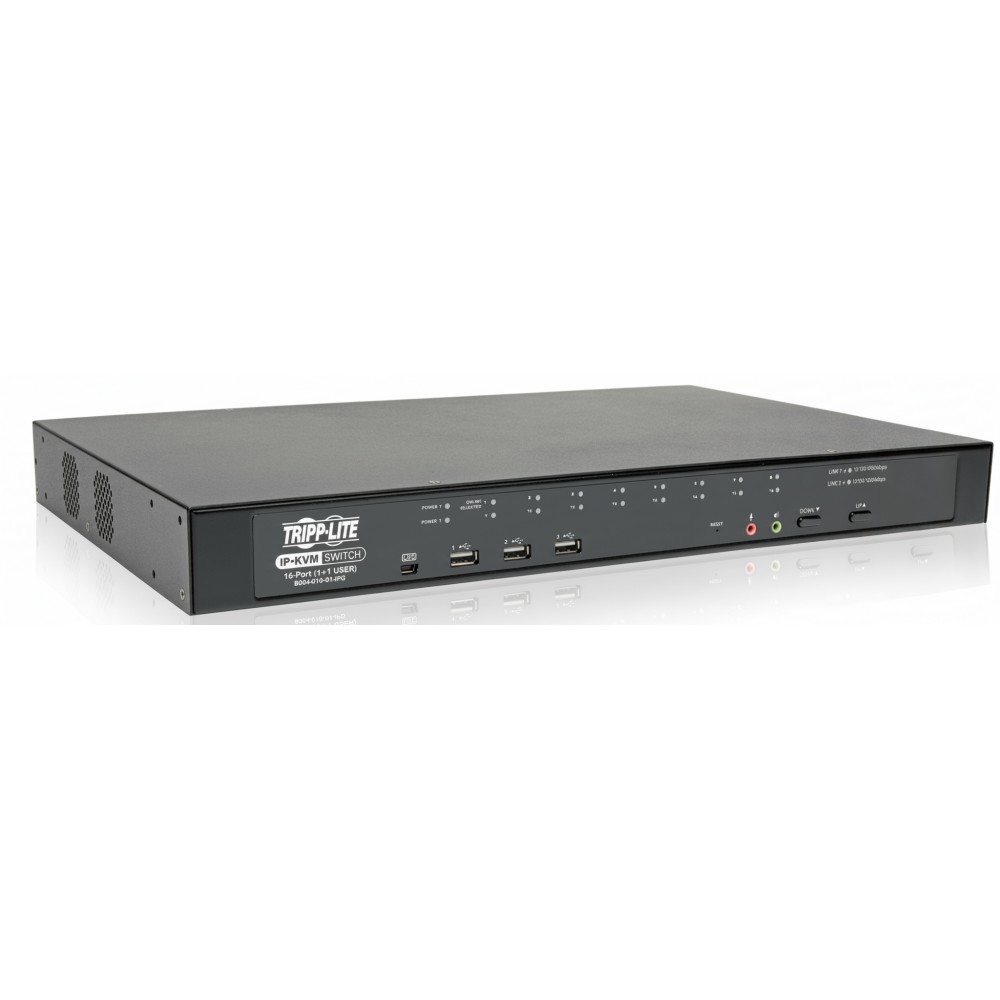

The device installs in a standard 1U rack position using included mounting hardware and has a metal chassis for durable deployment in server rooms and data closets. A laptop USB console (LUC) port and front-panel status indicators support local access and status visibility during setup or maintenance.
Communications are delivered over an Ethernet network interface supporting IPv4 and IPv6, enabling remote management without dedicated server-resident software. Virtual media support allows remote access to CD/DVD and USB mass storage devices as if locally attached.
A practical deployment is centralizing console access for a rack of blade servers or dense compute nodes in a colocation or enterprise IT environment to streamline rebooting, BIOS changes, or diagnostics. This unit should not be used where simple unmanaged KVMs suffice or where host systems lack supported interface types (USB/PS/2 for keyboard/mouse and VGA for video).
Key Features
- Supports up to 16 servers/systems over Cat5 cabling
- Local + remote simultaneous user access over IP
- Virtual media support for remote file/OS maintenance
- Dual redundant AC inputs for supply resilience
- 1U rack mount form factor with status LEDs
Specifications
| Specification | Value |
|---|
| Brand | Eaton (Tripp Lite series) |
| Part Number | B064-016-01-IPG |
| Product Type | KVM over IP Switch |
| Number of host systems supported | 16 |
| Local users | 1 |
| Remote users | 1 |
| Console interfaces | USB, PS/2 keyboard/mouse; VGA video |
| Video interface | VGA (HD15) |
| Network interface | Ethernet (IPv4 & IPv6) |
| Virtual media support | Yes |
| Redundant power inputs | Yes (dual IEC C14) |
| Input voltage range | 100-240 V AC, 50/60 Hz |
| Power consumption | ~1 A |
| Rack height | 1U |
| Form factor | 1U rack mount / desktop |
| Operating temp. range | 0 °C to 40 °C |
| Operating humidity | 0 %-80 % non-condensing |
| Dimensions (H×W×D) | ~1.72 in × 17.66 in × 10.42 in |
| Weight | ~7.76 lb (~3.52 kg) |
| Housing | Metal |
| Certifications/Compliance | TAA compliant, RoHS, REACH, FCC |
| Warranty | 3 year limited |
