Detailed Specifications
Eaton B002-DV1AC8-N4 - Secure DVI KVM Switch (NIAP PP4.0)
Overview
The Eaton B002-DV1AC8-N4 is an 8-port secure KVM switch designed to provide controlled keyboard, video, and mouse switching for up to eight isolated host systems from a single local console. It is deployed by security-focused operations, government, defense, and enterprise IT environments where data cross-contamination prevention and compliance with Common Criteria NIAP protection profiles are required. This is not a network switch × it is a hardware KVM switching appliance with isolated channels per port.
It supports DVI-I Dual-Link video and USB mouse/keyboard interfaces, delivering high-resolution display support to connected hosts. The unit operates from an external 100-240 V AC power adapter and includes interchangeable international power heads for global deployment.

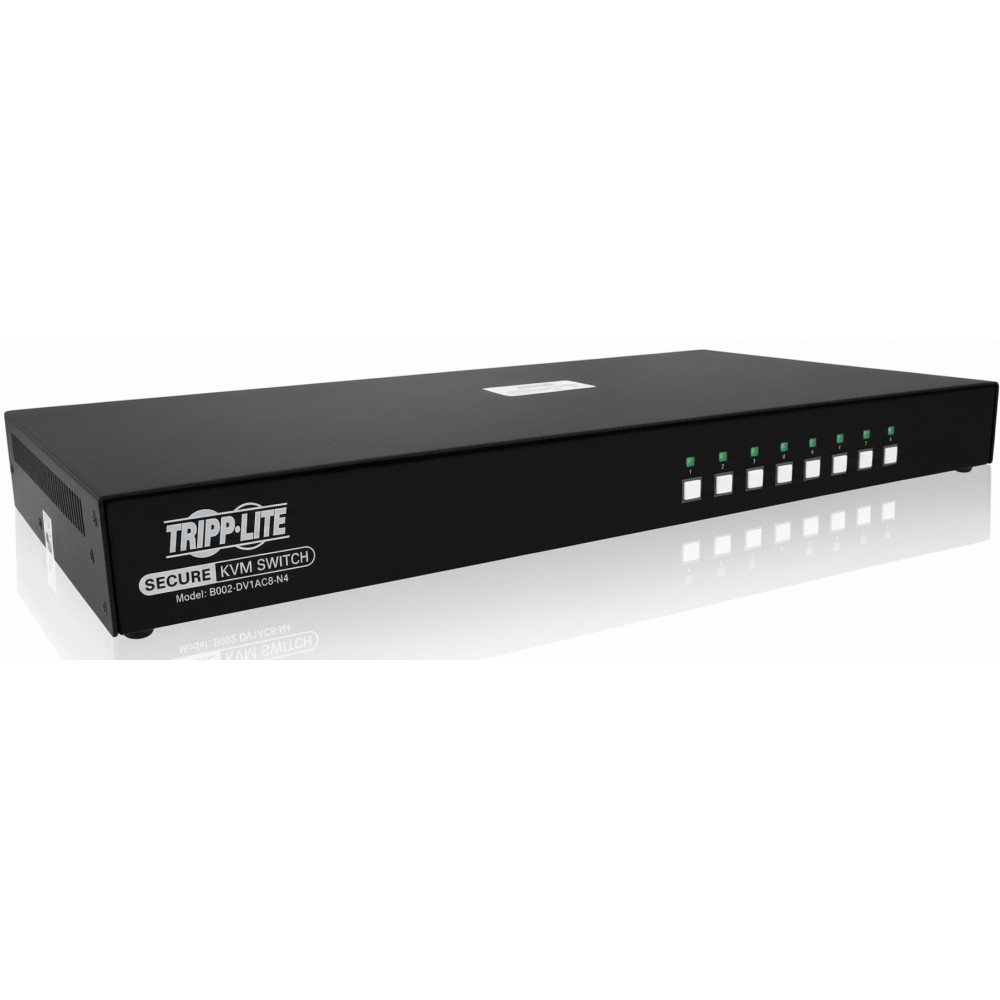

The device installs in standard rack or shelf environments and occupies 1U height. It provides front-panel push-button port selection with LED status indicators for visual feedback. The metal chassis is designed for secure facilities where physical and logical isolation of switches is part of compliance posture.
This KVM switch is certified to the NIAP Common Criteria Protection Profile for Peripheral Sharing Switches v4.0 (PP4.0) and is TAA compliant, making it suitable for procurement in federal and regulated sectors.
A practical deployment is in a secure operations center requiring logical separation between host machines of different classification levels while using a single console. It should not be used in unmanaged or non-secure consolidation scenarios where port isolation and NIAP certification are not mandated.
Key Features
- NIAP PP4.0 certified secure KVM with isolated port channels
- Supports up to 8 host computers via DVI-I + USB
- Single local console with push-button selection & LED status
- External 100-240 V AC power with international heads
- TAA compliant for federal procurement environments
Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | B002-DV1AC8-N4 |
| Product Type | Secure KVM Switch |
| Number of host ports | 8 |
| Console users | 1 |
| Video interface | DVI-I Dual-Link |
| USB interface | USB 2.0 (keyboard/mouse) |
| Maximum video resolution | Up to 2560 × 1600 @ 60 Hz |
| Power supply | External 100-240 V AC adapter |
| Power input range | 100-240 VAC, 50/60 Hz |
| Power consumption (adapter) | ~1.3 A input, 12 V DC output |
| Connectors - host | 8 × DVI-I, 8 × USB (per host) |
| Connectors - console | 1 × DVI-I, 2 × USB A |
| LED indicators | Status per port + console indicators |
| Form factor | 1U rack/shelf |
| Chassis material | Metal |
| Operating temp. | 0 °C to 40 °C |
| Relative humidity | 0 %-80 % non-condensing |
| Dimensions (H×W×D) | 1.76 in × 17 in × 8.69 in |
| Weight | ~6.3 lb |
| Certifications | NIAP PP4.0, TAA, RoHS, CE, FCC, UKCA, NOM |
