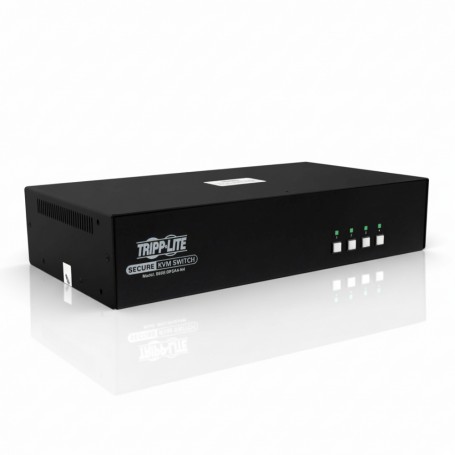

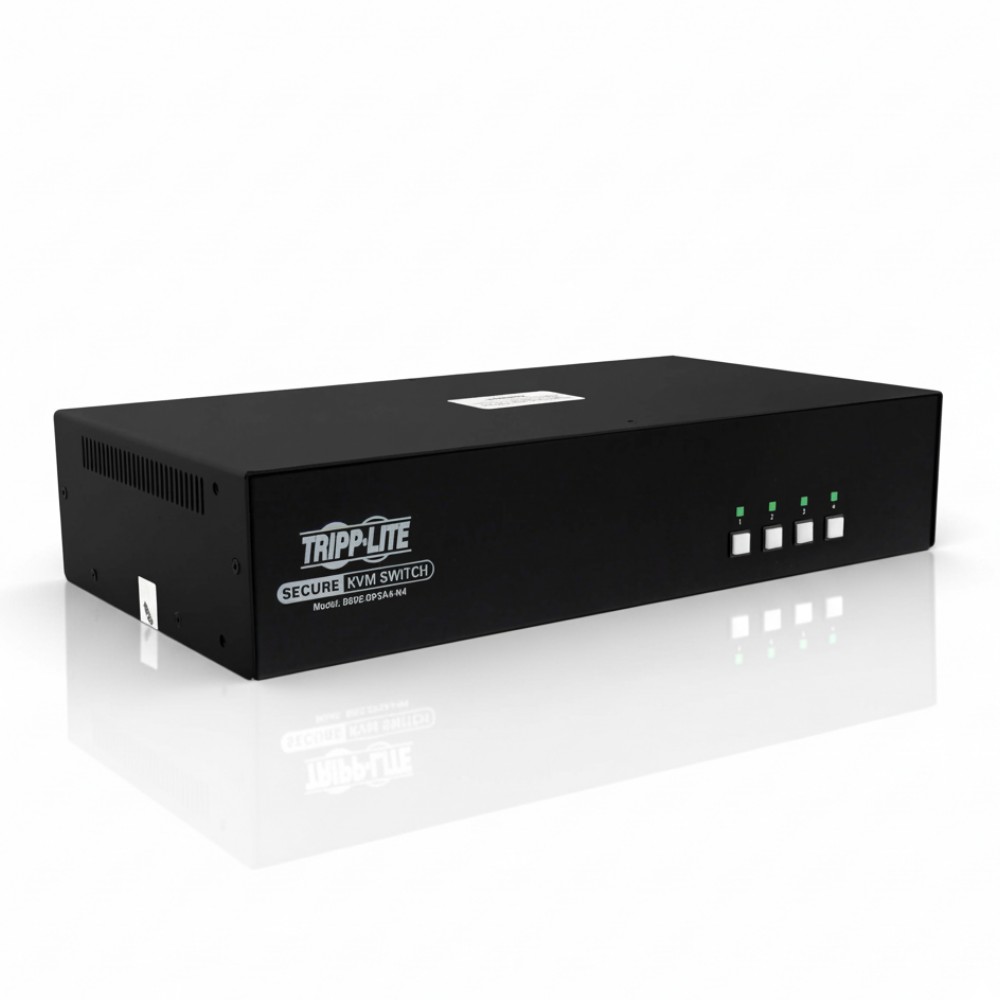

Eaton B002-DP2A4-N4 Tripp Lite 4 Port Dual Head DisplayPort Secure KVM Switch

Eaton B002-DP2A4-N4 Tripp Lite 4 Port Dual Head DisplayPort Secure KVM Switch

Overview

The Eaton B002-DP2A4-N4 is a high-security KVM (keyboard-video-mouse) switch engineered for environments where strict data isolation between systems is mandatory—such as military, government, finance or classified operations. It provides secure switching for up to 4 separate computers, each on its own isolated channel, meaning no data leakage can occur between ports. The switch supports dual-monitor setups via DisplayPort for each channel, making it suitable for applications where users need two displays per machine or high-resolution visual workflows.
With support for Ultra HD resolutions up to 3840×2160 (4K) at 30 Hz, it handles modern display needs without sacrificing performance. It carries NIAP/Common Criteria Protection Profile version 4.0 certification for Peripheral Sharing Switches, providing assurance against cross-system contamination or covert channel attacks. The unit is also TAA-compliant (Trade Agreements Act), which is important for government procurement and regulated-sector deployments.From a practical standpoint, you’d deploy the B002-DP2A4-N4 when you need a secure console to access up to four isolated systems from a single keyboard/mouse and dual monitors set-up—while meeting stringent security requirements. The device supports USB keyboard and mouse only (no USB hubs or flash drives allowed), includes anti-tamper protection, firmware lock-down, and full adherence to secure switching standards. It suits secure data rooms, control centres, network operations centres and other high-assurance facilities.

Key Features

• Provides secure switching for 4 isolated computer systems, each on its own channel, eliminating data transfer risk.

• Dual-monitor (dual-head) DisplayPort support with output up to 4K @30 Hz for high-resolution dual-display environments.

• Certified to NIAP PP4.0 for Peripheral Sharing Switches ensuring compliance with strict security and assurance standards.

• TAA-compliant and anti-tamper built-in hardware with USB-keyboard/mouse filtering ensures only approved peripherals interface and protects against firmware tampering.

Technical Specifications
