Detailed Specifications

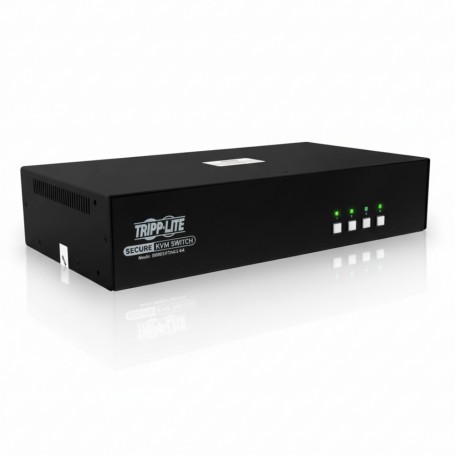

Eaton B002-DP2AC4-N4 - 4-Port Dual-Head DisplayPort Secure KVM Switch
Overview
The Eaton B002-DP2AC4-N4 is a high-security KVM (keyboard-video-mouse) switch designed for classified, government, defense, healthcare and finance environments where strict data separation is mandatory. It supports 4 discrete computer ports, each isolated to prevent data leakage between connected systems × this is certified to the NIAP Common Criteria Protection Profile version 4.0 for Peripheral Sharing Switches.It features dual-head DisplayPort video output so you can run two displays simultaneous for each port (ideal for high-resolution or productivity setups). It supports UHD resolution up to 3840 × 2160 (4K) at 30 Hz. For authentication and user access, the unit includes a CAC (Common Access Card) port that supports biometric or smart-card readers, and it strictly filters USB devices so only keyboard/mouse are allowed × eliminating risk of data-leak via flash drives or other peripherals.
In real-world deployment you'd place this switch in secure IT rooms or control centres controlling up to four isolated systems from one console (keyboard, mouse, dual monitors). The tamper-detect design, anti-reprogramming firmware and full card-reader support make it suitable for environments with elevated security policy requirements.
Key Features
NIAP PP4.0 certified (peripheral sharing) ensures each of the four computer channels is electronically isolated from the others and prevents data cross-flow.
Dual-head DisplayPort support (two monitors per port) with 4K@30Hz resolution capability×ideal for modern workstation displays.
CAC smart-card / biometric reader port plus filtered USB device access ensures only authorized peripherals connect and helps meet regulated-environment authentication.
Anti-tamper hardware lock and firmware protection prevent physical or logical tampering of the KVM logic and prevent reprogramming of the switch's firmware.
Technical Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | B002-DP2AC4-N4 |
| Product Type | Secure KVM Switch, 4-Port, Dual Head DisplayPort |
| Number of Ports | 4 |
| Video Interface | Dual DisplayPort per port (two monitors) |
| Max Video Resolution | 3840 × 2160 (4K) at 30 Hz |
| Input Power Adapter | 100-240 V AC, 50/60 Hz, 1.3A |
| Output Power Adapter | 12 V DC, 3 A |
| Dimensions (L×W×H) | ~12.48″ × 6.65″ × 2.70″ (317 × 169 × 68.5 mm) |
