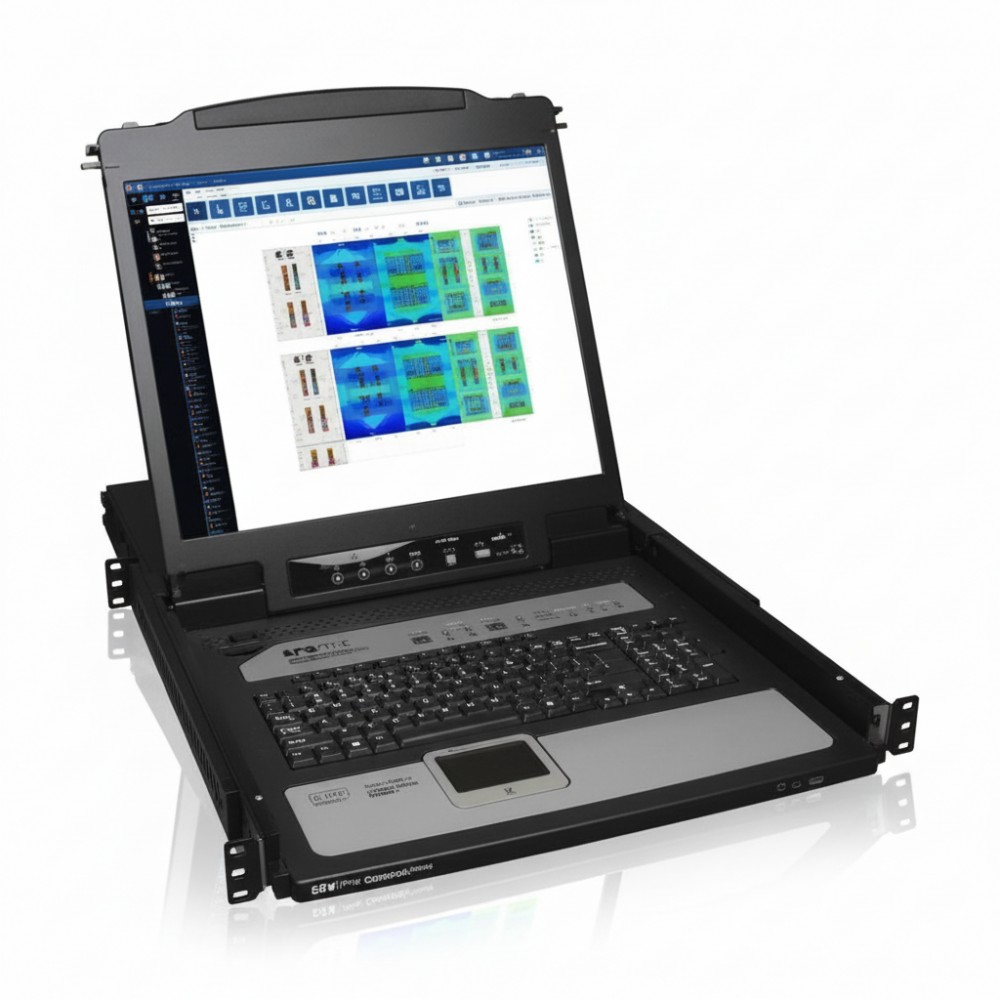

Eaton B020-U16-19-IP 16-Port LCD KVM Switch IP Access View larger

Eaton B020-U16-19-IP 16-Port LCD KVM Switch IP Access

B020-U16-19-IP

New

In Stock

16-Port Rackmount KVM Switch
×




$2,710.00

Detailed Specifications

Eaton B020-U16-19-IP – 16-Port Rackmount LCD KVM Switch with IP Access

Overview :

The Eaton B020-U16-19-IP is a 16-port rackmount LCD KVM switch designed for centralized server management in enterprise and data center environments. It integrates a 19-inch LCD monitor, keyboard, and touchpad in a single 1U rack console for streamlined control. The switch provides both local and remote (over IP) access, allowing IT administrators to manage multiple servers securely from anywhere. Ideal for network closets, server rooms, and co-location facilities requiring efficient multi-system administration.

Key Features :

• 16-port KVM with integrated 19" LCD
• Remote server access via IP interface
• Space-saving 1U rackmount design
• USB and PS/2 console compatibility

Specifications :

SpecificationDetails
Brand Eaton
Part Number B020-U16-19-IP
Product Type Rackmount LCD KVM Switch
KVM Ports 16
Display Type 19-inch LCD panel
Max Resolution 1280 x 1024
Local Console Interface VGA, USB, PS/2
Remote Access Over IP (TCP/IP)
Rack Height 1U
Cascade Support Up to 256 computers
Power Input 100–240V AC, 50/60Hz
Chassis Type Steel, rackmountable
Operating Temperature 0°C to 40°C
Dimensions (W x D x H) Approx. 480 x 700 x 44 mm
Weight Approx. 12 kg
