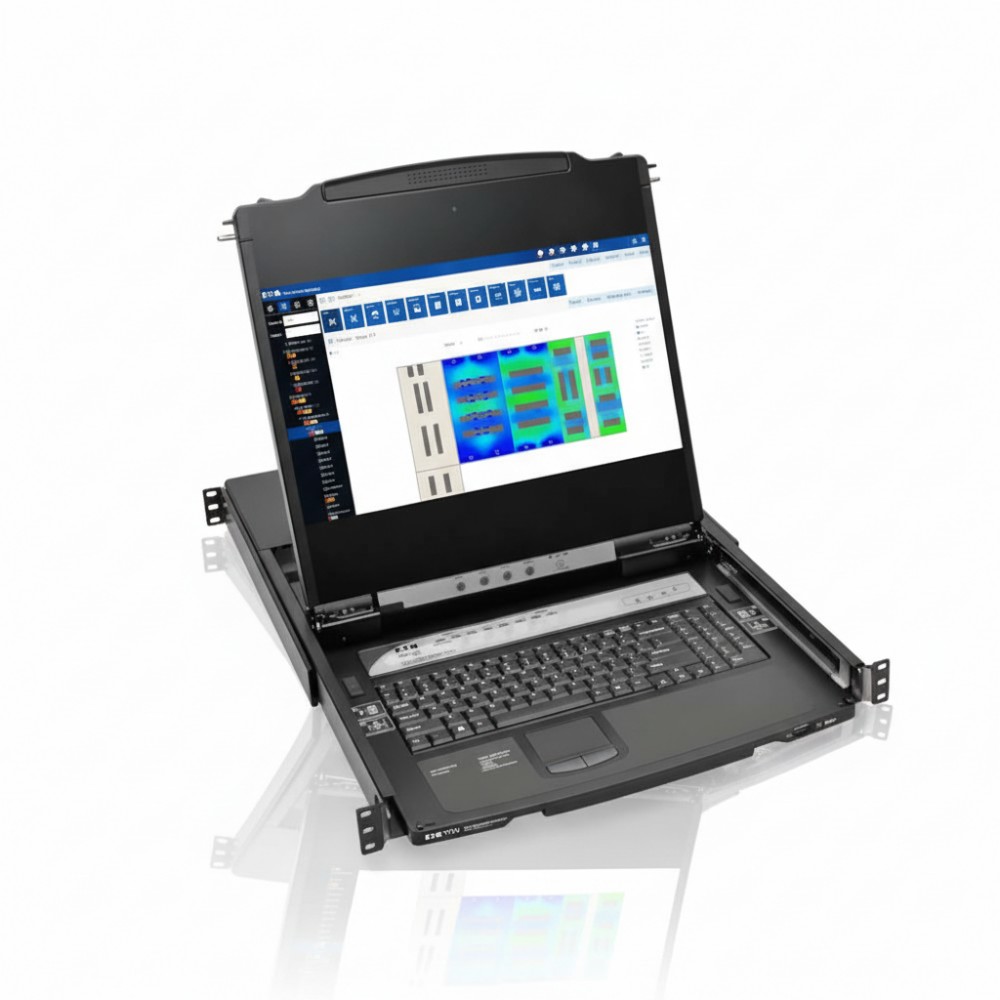

Eaton B030-008-17-IP - 8-Port HDMI KVM Console with LCD & IP Remote
Overview
The Eaton B030-008-17-IP is an integrated rack console and KVM switch that combines a built-in 17″ LCD display, keyboard, and touchpad with an 8-port HDMI KVM switch and IP remote access capability. It is used by data center technicians, network engineers, and infrastructure teams to provide centralized local and remote management of multiple servers and systems from a single access point. This unit is suited for environments requiring consolidated control of diverse host equipment without dedicating separate monitors/keyboards for each system.
The system supports up to eight HDMI-connected computers or servers, allowing local switching via on-console pushbuttons, on-screen display (OSD), or keyboard hotkeys. Its 17″ 1080p LCD panel gives sufficient visual real estate for standard administrative tasks, and the dual-rail design enables the keyboard/touchpad assembly to slide independently of the display for efficient rack access.
Remote access is enabled through an integrated Ethernet IP interface, supporting LAN, WAN, and internet connectivity. The unit can host up to 64 authorized user accounts with up to 32 concurrent remote sessions, providing scalable multi-user management and troubleshooting without physical presence at the rack.
Deployments typically include core or consolidation racks where visibility and remote control of multiple servers, storage controllers, and network appliances are required. The IP capability allows off-site administrators to perform maintenance or troubleshooting without travel. It also supports modern enterprise authentication methods (e.g., RADIUS, LDAP) for secure access control.
This console switch is not appropriate for small environments with few hosts or simple server clusters that do not justify a full 1U integrated console. For basic local KVM switching without IP access, smaller non-LCD KVM units may be more cost-effective. Similarly, environments where only serial console access is needed should consider dedicated serial console servers.
Key Features
- 8-port HDMI KVM switch with integrated 17″ LCD console
- IP remote access via Ethernet for remote management
- Dual-rail 1U rack design saves rack space
- Supports up to 64 users, 32 concurrent remote sessions
- USB keyboard, touchpad, DDC-compliant 1080p video support
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | B030-008-17-IP |
| Product Type | Rack LCD KVM Console Switch |
| Supported Hosts | 8 HDMI computers/servers |
| Display | 17″ LCD, 1920×1080 resolution |
| Console Ports | USB keyboard/mouse, HDMI video |
| Ethernet | 1 × RJ45 10/100/1000Base-T |
| Remote Protocols | IP remote access (HTTP/HTTPS, SSL, etc.) |
| Users Supported | Up to 64 authorized users |
| Concurrent Remote Sessions | Up to 32 |
| Switching Methods | Pushbuttons, hotkey, OSD, remote toolbar |
| Authentication | RADIUS, LDAP/S |
| Rack Mount | 1U, dual-rail |
| Input Power | 100-250 V AC, 50/60 Hz |
| Operating Temp | 0-40 °C |
| Storage Temp | -20-60 °C |
| Humidity | 0-80 % non-condensing |
| Dimensions (H×W×D) | 1.73″ × 18.9″ × 26.77″ |
| Weight | ~26 lb |
| Certifications | UL 60950-1, CSA C22.2, FCC Class A, CE, RoHS, TAA compliant |
| Package Includes | Power cord, USB & HDMI cables, rack mount kit |
