Detailed Specifications

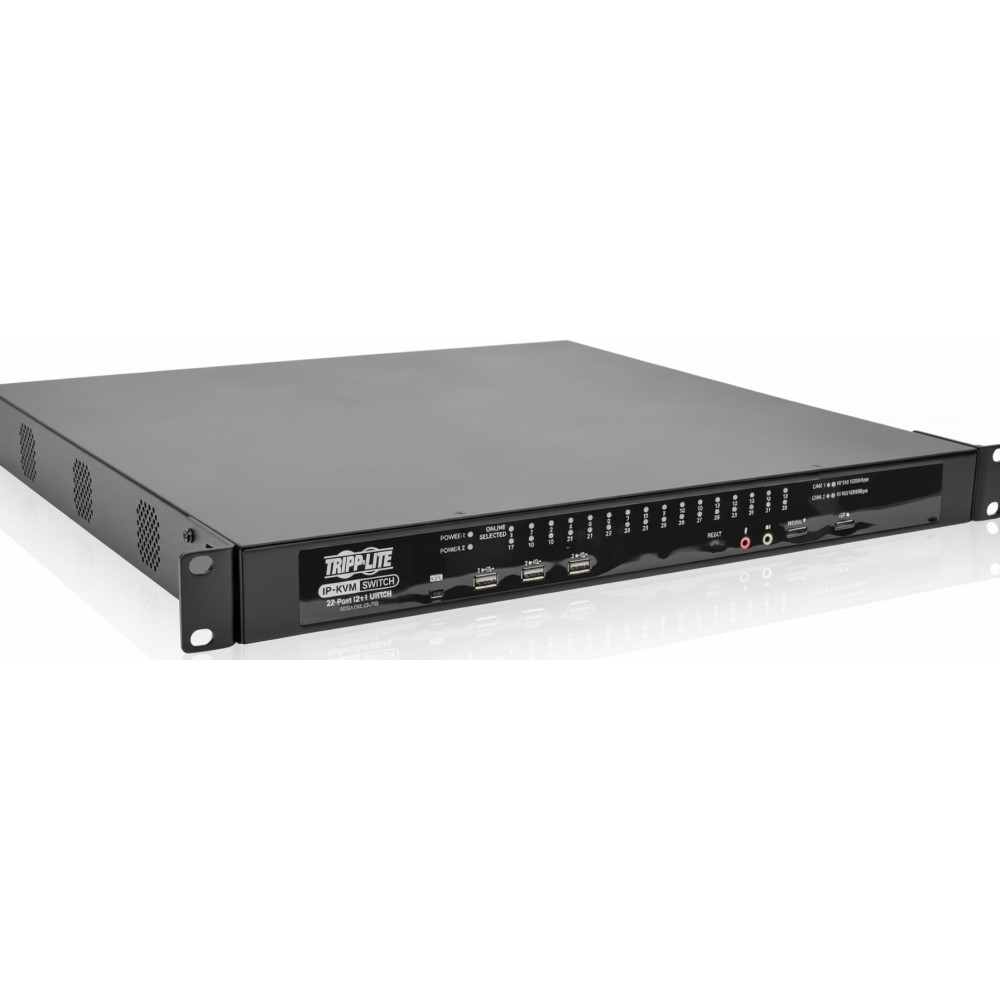

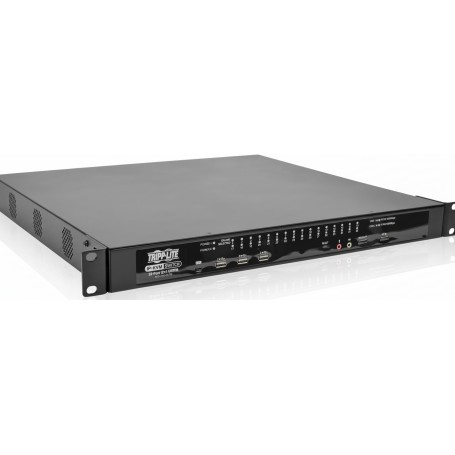

Eaton B064-032-02-IPG - 32-Port Cat5 IP KVM Switch
Overview :
The Eaton B064-032-02-IPG is a rack-mountable 32-port Cat5 KVM over IP switch designed for centralized server management in enterprise and data center environments. It allows IT administrators to control multiple servers from remote or local consoles using standard Cat5 cabling. This unit supports multi-user access with secure authentication and encryption for reliable out-of-band server management. Ideal for deployment in data centers, network closets, or remote management facilities where efficiency and security are essential.
Key Features :
32 Cat5 ports for multi-server access
Dual-user simultaneous remote control
Secure 128-bit SSL and AES encryption
Rack-mountable 1U metal chassis design
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | B064-032-02-IPG |
| Product Type | 32-Port Cat5 KVM over IP Switch |
| Number of Ports | 32 RJ45 (Cat5) KVM ports |
| User Access | 1 local + 1 remote user simultaneous |
| Video Resolution | Up to 1600 x 1200 @ 60 Hz |
| Port Connectors | RJ45 for server connections |
| Supported Cable Type | Cat5 / Cat5e / Cat6 |
| Authentication | LDAP, RADIUS, and local user accounts |
| Encryption | 128-bit SSL and AES |
| Form Factor | 1U rack-mountable |
| Power Supply | 100-240V AC, 50/60 Hz |
| Operating Temperature | 0°C to 40°C |
| Dimensions (W x D x H) | Approx. 43.8 × 16.4 × 4.4 cm |
| Weight | Approx. 3.5 kg |
