Detailed Specifications

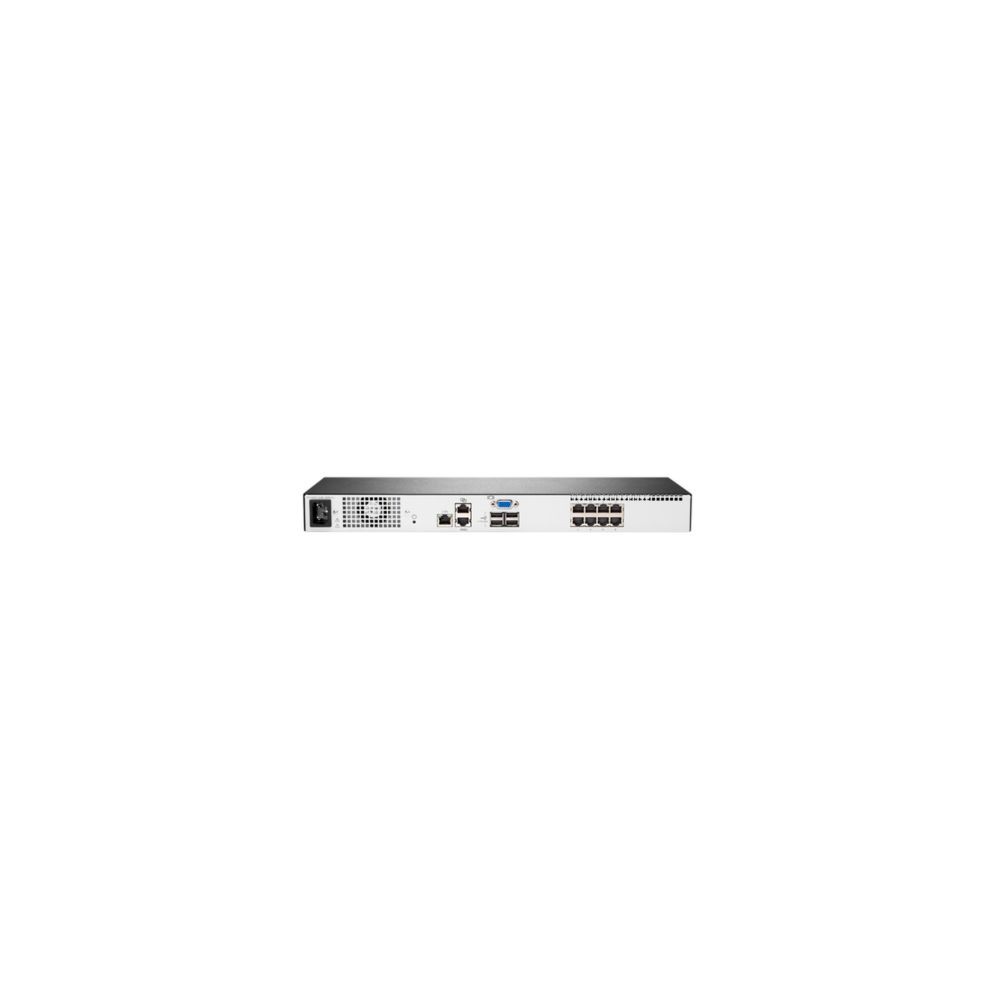

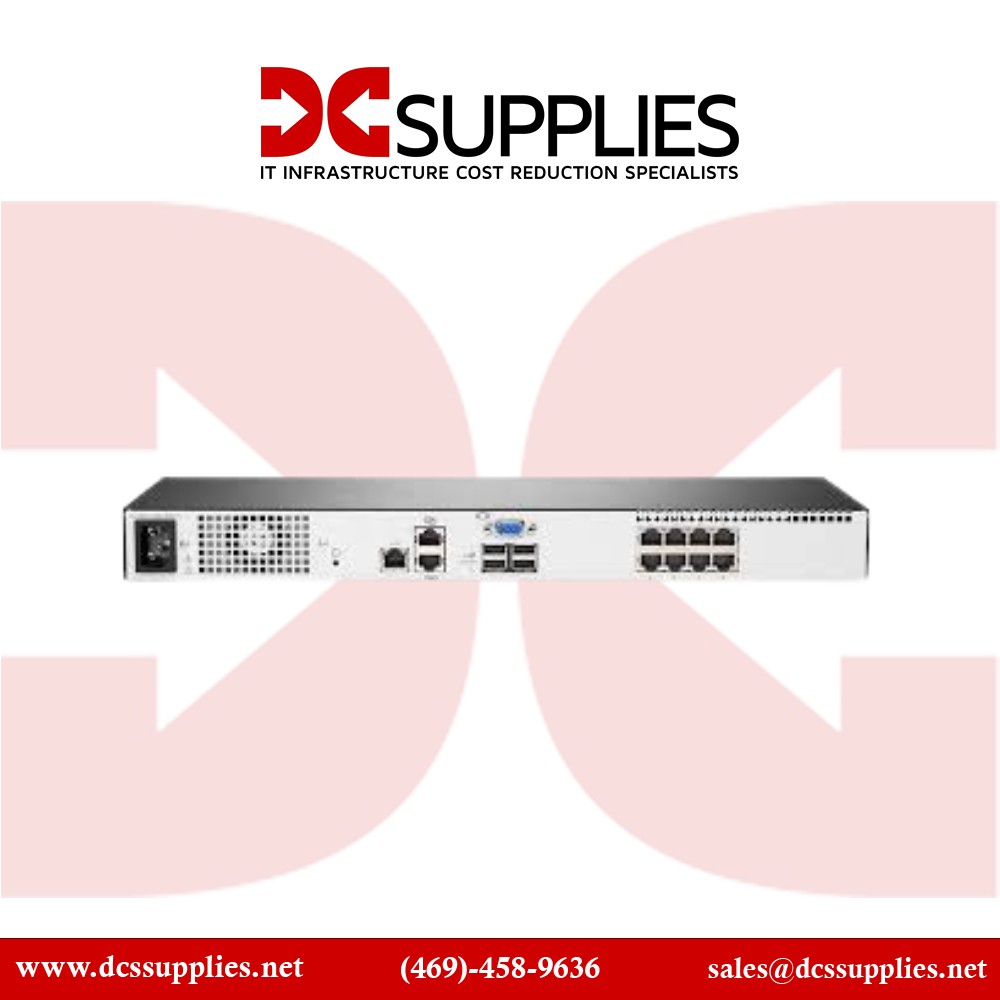

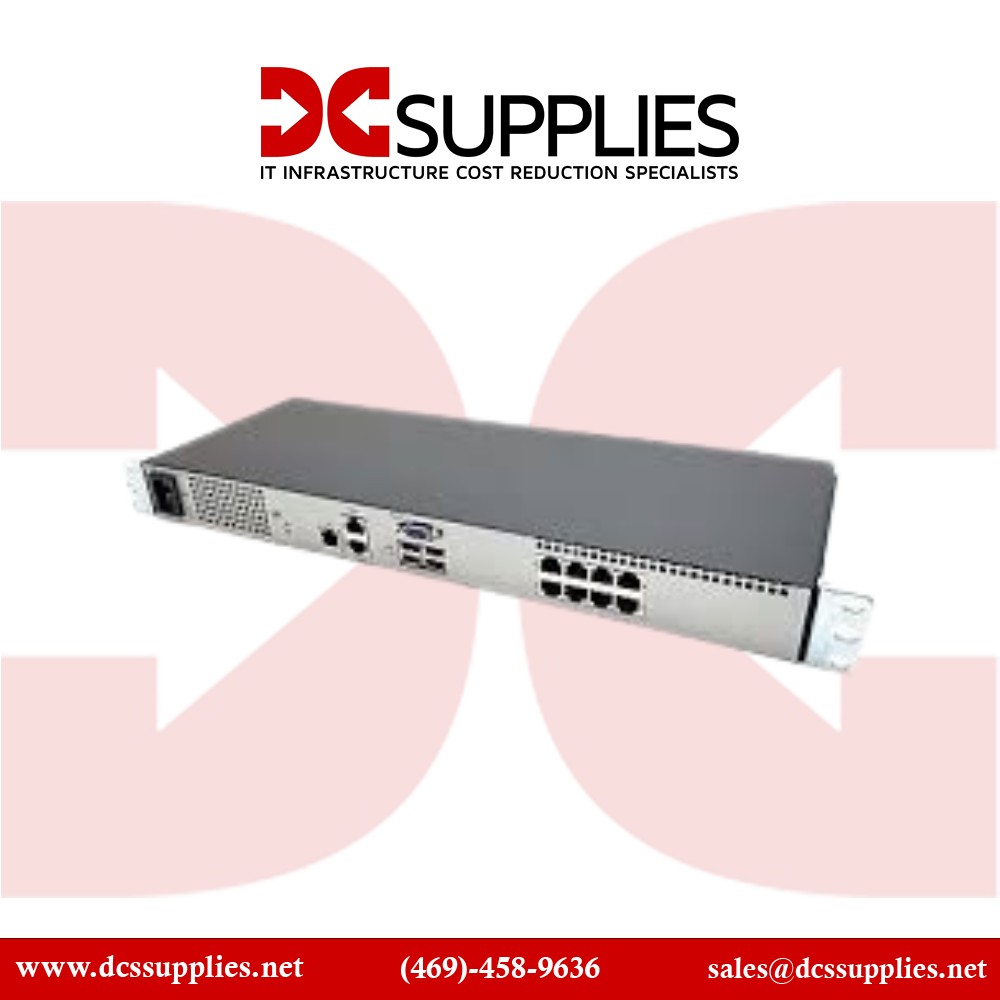

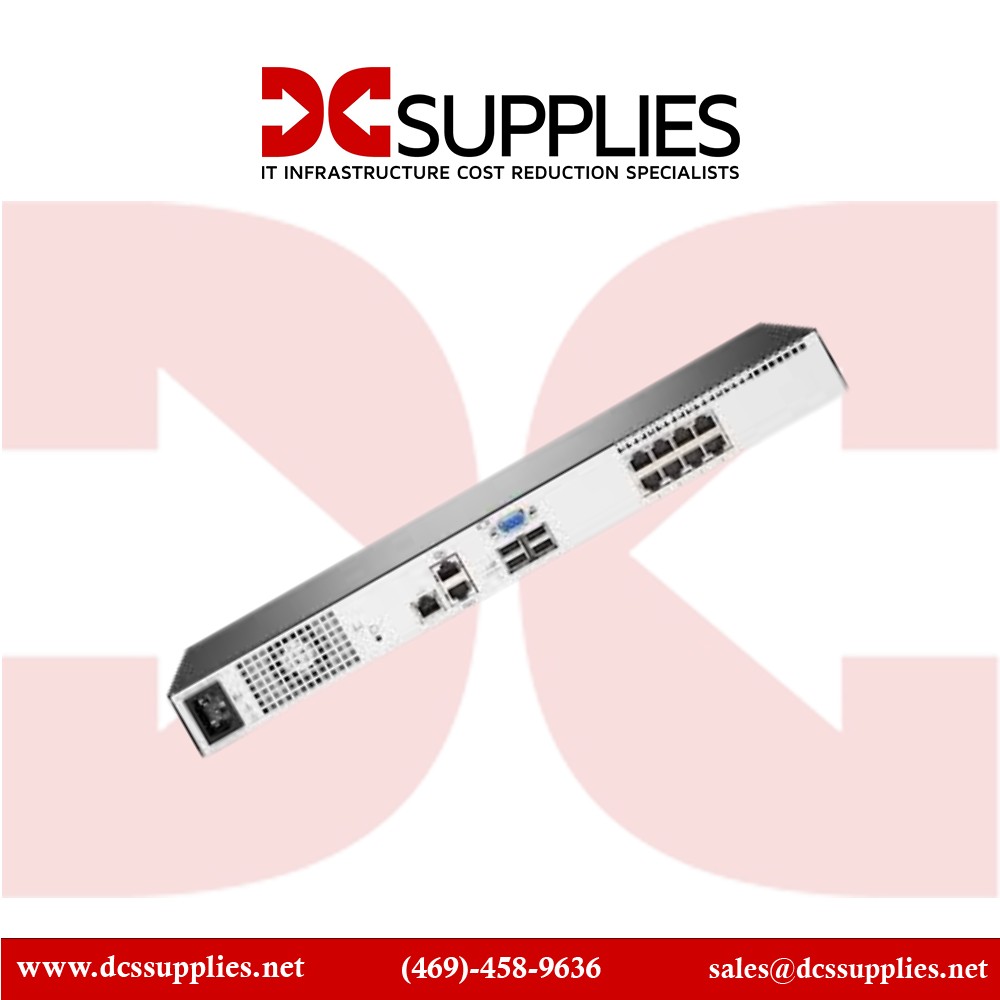

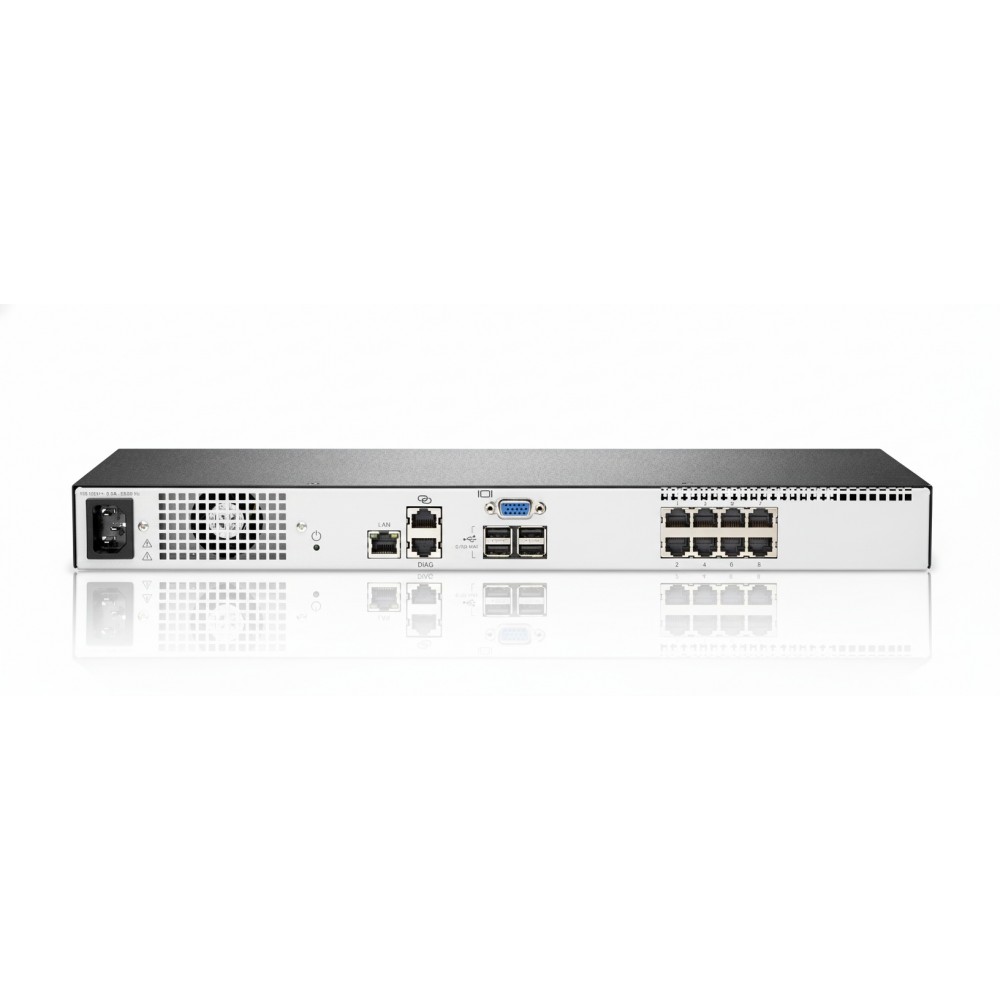

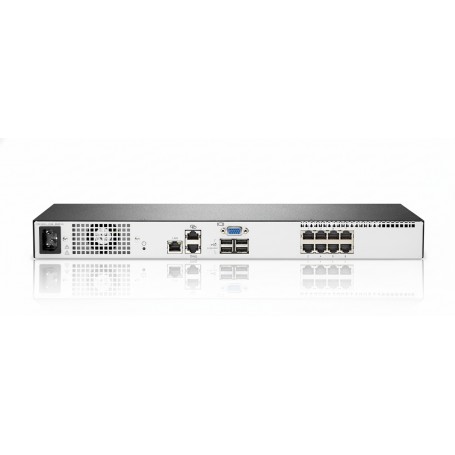

HPE Q1P54A 1×1×8 G4 IP KVM Console Switch
Overview
The HPE Q1P54A is an enterprise-grade IP KVM console switch, designed for data centre or rack-mount environments where remote and local access to multiple servers is required. It provides control over up to 8 connected servers or devices with one local console and one IP user, while supporting cascading for up to 256 servers via two tiering levels. The device fits into a 1 U rack mount or 0 U rear- or side-mount in HPE racks, and is powered via 100-240 V AC auto-sensing input at 50/60 Hz, consuming up to 100 W maximum. Ideal for server rooms with mixed physical and remote operations, it enables virtual media support, browser-based management and integration into an existing rack solution. Dimensions are approximately 1.72″ H × 17.0″ W × 6.69″ D and the unit weighs around 4.4 lb, making it suitable for standard 19-inch rack environments with constrained depth.
Key Features
8 independent server ports plus 1 local and 1 remote user simultaneous access.
Tiering support for up to 256 servers via cascading two levels.
100-240 V AC auto-sensing input; max power consumption 100 W (approx).
1 U rack-mountable or 0 U side/rear mount compatible with HPE racks.
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | Q1P54A |
| Product Type | 1×1×8 G4 IP KVM Console Switch |
| Server Port Count | 8 |
| User Access | 1 local user + 1 IP user simultaneous |
| Cascading Support | Up to 256 servers (two-level tiering) |
| Input Voltage | 100-240 V AC auto-sensing (50/60 Hz) |
| Maximum Power Consumption | 100 W |
| Heat Output | ~340 BTU/hr |
| Dimensions (H×W×D) | 1.72″ × 17.0″ × 6.69″ |
| Weight | ~4.4 lb |
| Rack Mount Form Factor | 1U standard 19-inch or 0U rear/side mount |
| Cable Included | One power jumper cable |
| Warranty | 3-year limited |
| Ambient Operating Conditions | Typically 0 °C to 50 °C (per rack equipment) |
| Management Features | Virtual media, browser-based OBWI, local OSD |
