Detailed Specifications

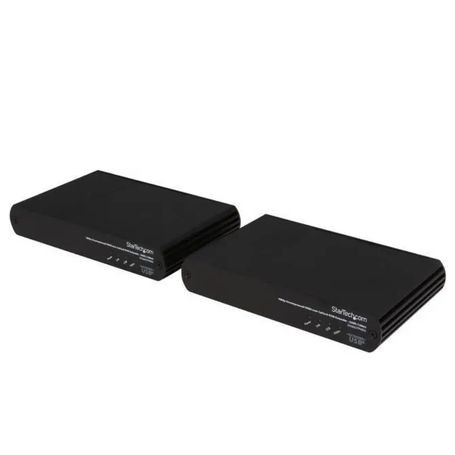

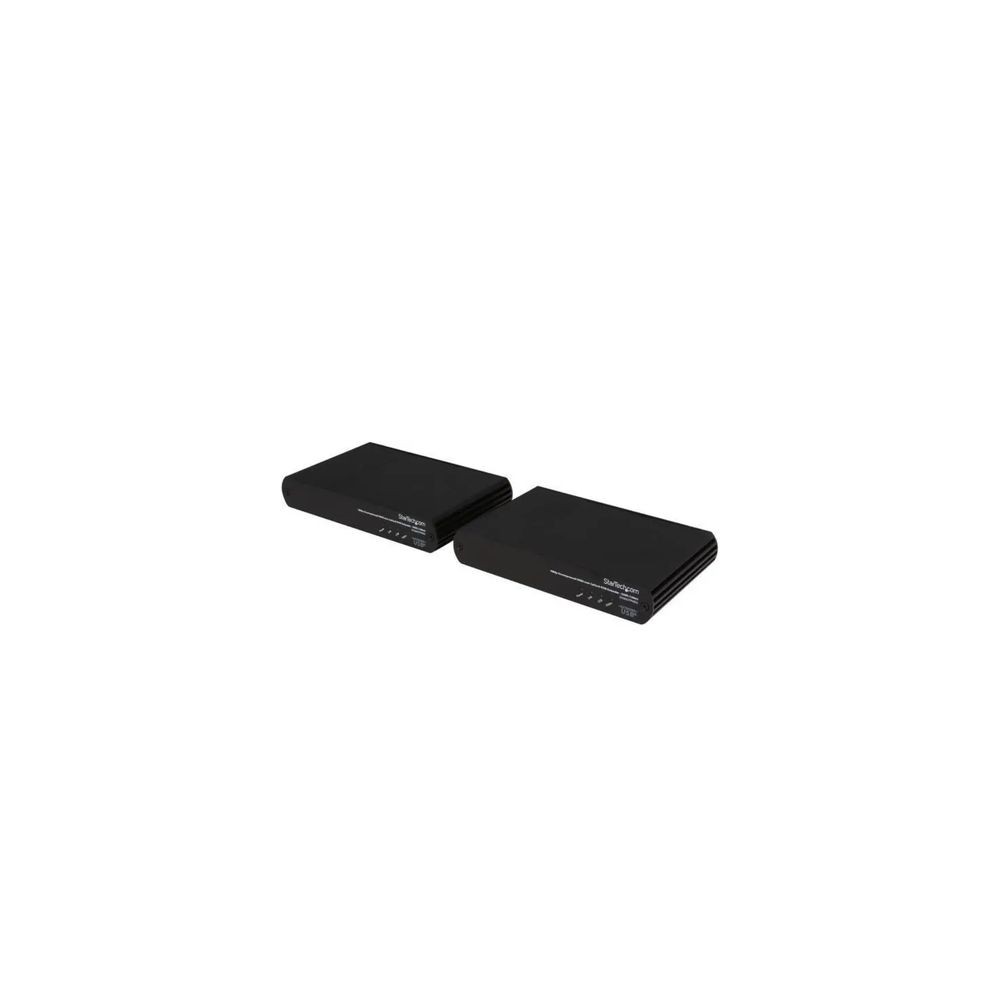

StarTech SV565UTPHDU - USB/HDMI KVM Extender 1080p Uncompressed
Overview :
The StarTech SV565UTPHDU is a USB and HDMI KVM console extender that transmits uncompressed 1080p or 1920×1200 video alongside USB peripheral connectivity up to 100 m over a single Cat5e/Cat6 cable. It enables remote control of a host system from a distant console using existing structured cabling infrastructure, suitable for data centers, control rooms, labs, and secure facilities where direct cabling is impractical.
This solution integrates transmitter and receiver units with HDMI video and multiple USB 2.0 ports for keyboard, mouse, and other low-speed USB devices. It is OS-independent with no drivers required and supports HDCP, CEC, and lip-sync pass-through for accurate display rendering.
Deploy in rack or wall-mounted environments where distance extension without signal compression is critical. Not intended for network switching or IP routing; it requires point-to-point Cat5e/6 connectivity.
Key Features :
- Extends HDMI video & USB up to 100 m over Cat5e/Cat6
- Uncompressed 1080p / 1920×1200 video support
- 3x USB 2.0 ports for keyboard/mouse/peripherals
- OS-independent, no drivers required
- Supports HDCP, CEC, and lip-sync pass-through
Specifications :
| Specification | Details |
|---|
| Brand | StarTech |
| Part Number | SV565UTPHDU |
| Product Type | USB/HDMI KVM Extender |
| Video Resolution | Up to 1920×1200 (1080p) |
| Maximum Distance | 100 m (330 ft) |
| Video Interface | HDMI Type-A |
| USB Ports | 3 × USB-A (remote), 1 × USB-B (local) |
| Transmission Cable | Cat5e / Cat6 |
| Supported USB | USB 2.0 |
| HDCP/CEC Support | Yes |
| Power Input | 5 VDC |
| Power Consumption | 15 W |
| Form Factor | Transmitter + Receiver |
| Operating Temperature | 0 °C to 40 °C |
| Compliance | CE, FCC, RoHS |
