Black Box AVU5020A Wizard Multimedia VGA USB Audio over CAT x Dual-Access Extender Kit View larger

Black Box AVU5020A Wizard Multimedia VGA USB Audio over CAT x Dual-Access Extender Kit

AVU5020A

New

Black Box AVU5020A Wizard Multimedia VGA USB...

×




dc supplies, AVU5020A, Black Box AVU5020A, Wizard Multimedia Extender Kit, black boxDual-Access Extender Ki

Detailed Specifications

Black Box AVU5020A Wizard Multimedia VGA USB Audio over CAT x Dual-Access Extender Kit

Overview :

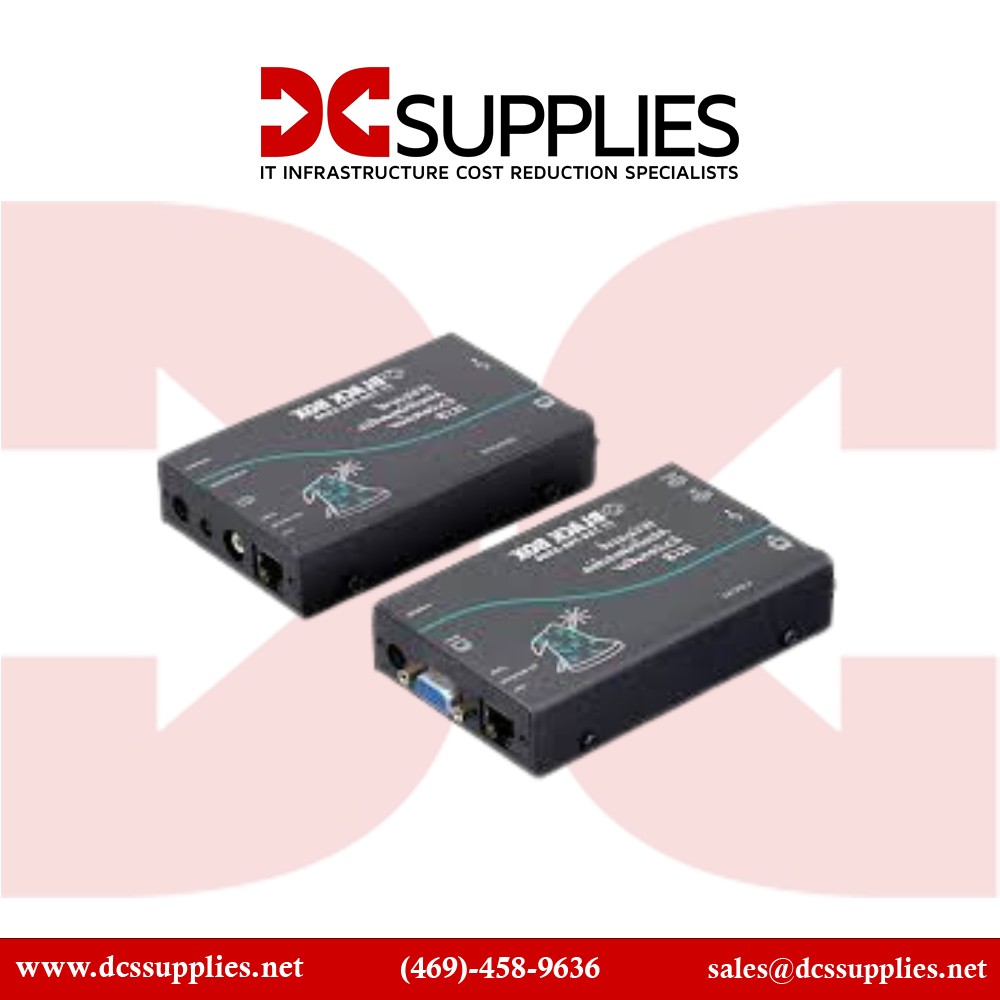

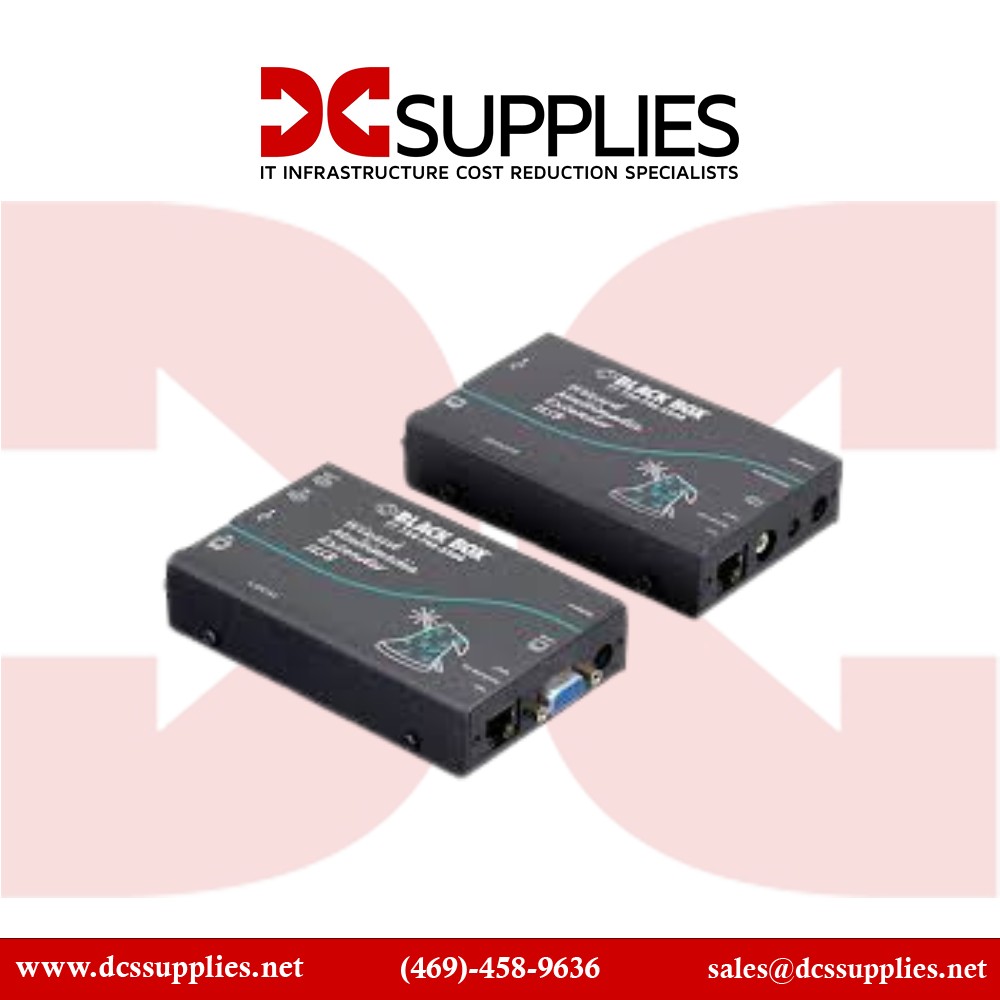

The AVU5020A Wizard Multimedia (VGA/USB/Audio) over CAT x Dual-Access Extender Kit by Black Box, comprised of a local transmitter unit and a remote receiver unit, extends VGA, USB, and stereo audio signals up to 164' over a CAT x cable (CAT5 or higher), at a video resolution of up to 1920 x 1200. Being a dual-access model, the local unit also features video and audio outputs which enable local control of remote devices. DDC is fully supported. Four full-speed USB 2.0 devices, such as touch screens, speakers, and keyboards can be connected simultaneously to the integrated 4-port USB hub on the remote unit; USB devices can be disconnected and reconnected at any time without causing errors. Stereo 44.1kHz CD-quality audio is transmitted digitally along with the VGA signals over CAT x. User-adjustable video compensation enables image fine-tuning. This extender can be used with any operating system and any USB devices. Operation is fully transparent.

Specification :

Resolution
1920 x 1200 maximum
Transmission Range
164' (50 m) maximum

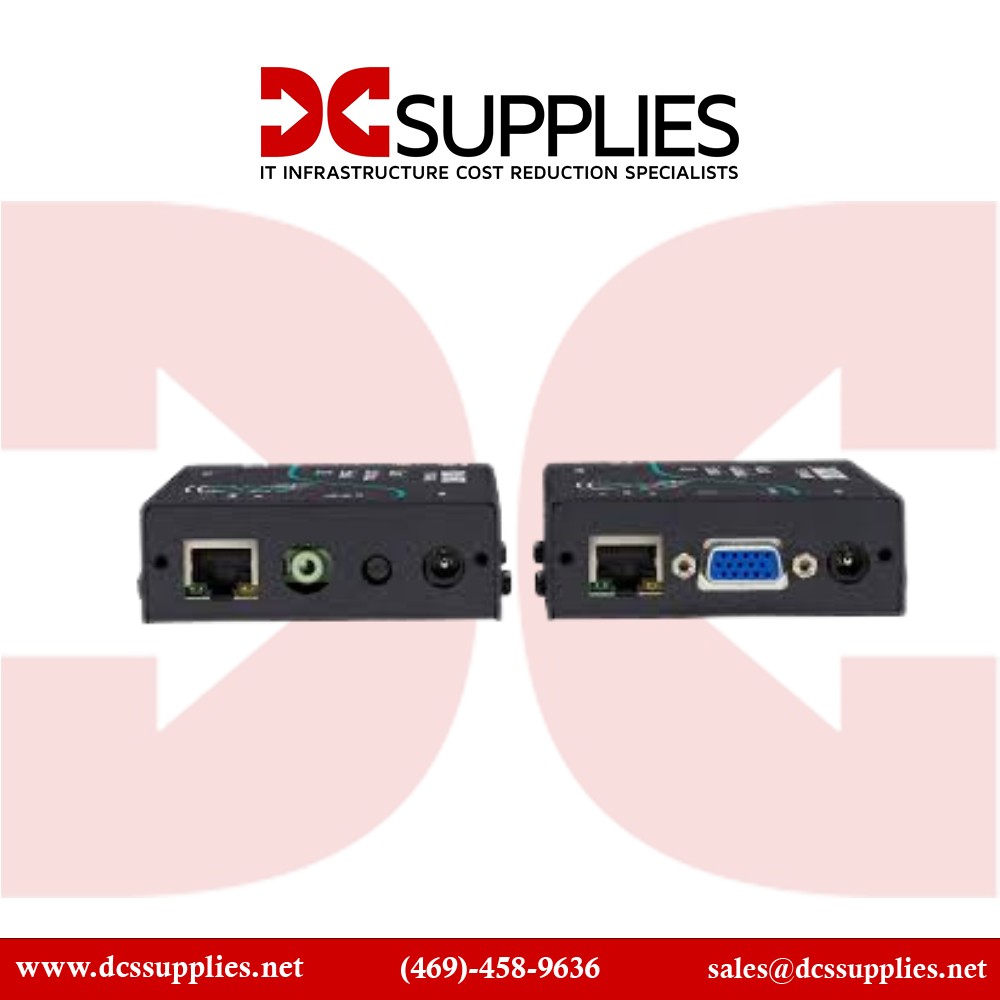

Connectors
Local Unit:
1 x 15-pin Sub-D female, video input
1 x 15-pin Sub-D female, video output
1 x USB type B
2 x 3.5 mm phone jack, audio
1 x RJ-45, interconnect
1 x 2.5 mm DC power
Remote Unit:
1 x 15-pin Sub-D female, video output
4 x USB type A
1 x 3.5 mm phone jack, audio
1 x RJ-45, interconnect
1 x 2.5 mm DC power
Power
100 - 240 VAC, 50 - 60 Hz, autosensing
Dimensions
Local Unit: 1.7 x 4.7 x 3" (4.4 x 12 x 7.5 cm)
Remote Unit: 1.7 x 4.7 x 3" (4.4 x 12 x 7.5 cm)
Weight
Local Unit: 1 lb (0.5 kg)
Remote Unit: 1 lb (0.5 kg)
