Eaton B030-DP08-17DIP - 8-Port DisplayPort KVM Console Switch
Overview

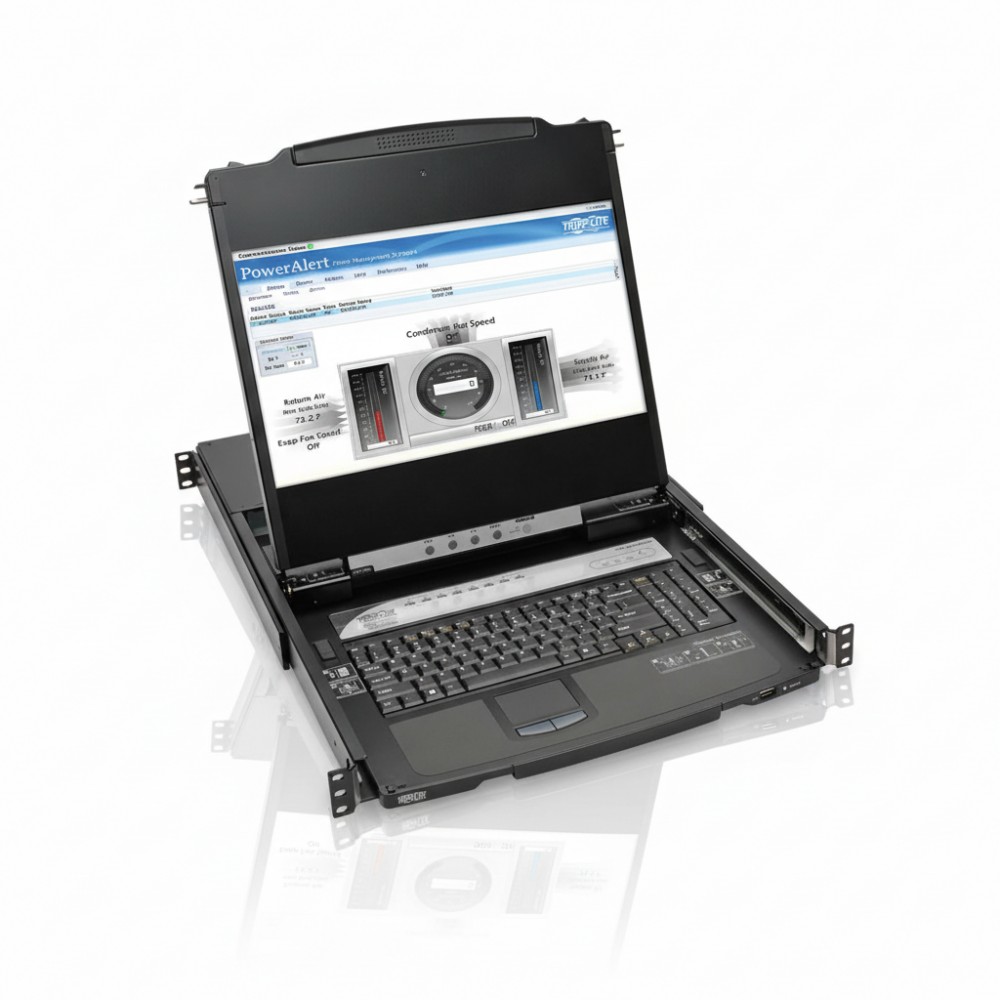

The Eaton B030-DP08-17DIP is an integrated LCD rack console and KVM (Keyboard-Video-Mouse) switch designed for centralized management of multiple servers and systems from a single user interface. It is deployed by data center engineers, network administrators, and infrastructure teams where space-efficient access to multiple host systems is required, such as in core racks, consolidation points, and remote hosting cabinets. The unit combines an 8-port DisplayPort KVM switch with a built-in 17-inch LCD display, keyboard, and touchpad to provide both local access and remote connectivity.
This console supports up to eight servers or computers with DisplayPort interfaces, enabling control and configuration without separate monitors and keyboards for each device. A 17-inch 1080p LCD display with a dual-rail design allows the keyboard/touchpad assembly to slide independently of the screen, preserving rack space and optimizing aisle access.
Deployment use cases include consolidated management of virtualization hosts, server clusters, SAN control stations, and network appliances in data centers, enterprise IT closets, and remote facilities. The included IP remote access functionality enables secure management over LAN/WAN/Internet connections, enabling troubleshooting and control from off-site locations.
Integration with enterprise authentication systems (e.g., RADIUS, LDAP, Active Directory) provides multi-level access control, and the unit supports multiple remote users simultaneously. Its On-Screen Display (OSD), pushbutton controls, and hotkey navigation deliver flexible local control, while built-in encryption and security options protect remote sessions.
Typical deployments involve managing diverse server fleets across converged infrastructure racks, significantly reducing physical access requirements and cabling complexity. The console is not recommended in deployments with fewer than 4 hosts where lower-cost, lower-port KVM solutions suffice, or where only simple USB-to-serial management is required. Remote management routers and software-only tools may substitute for scenarios without console-level access needs.
Key Features
- 8-port DisplayPort KVM switch with integrated LCD console
- 17″ 1080p LCD with dual-rail slide design
- Built-in keyboard and touchpad for local access
- IP remote access via LAN/WAN/Internet
- Enterprise-grade authentication support (LDAP, RADIUS)
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | B030-DP08-17DIP |
| Product Type | Rack LCD KVM Switch Console |
| Display | 17″ LCD, 1920×1080 @ 60 Hz |
| Supported Hosts | 8 DisplayPort computers/servers |
| KVM Ports | 8 × RJ45 for Cat5e/6 extenders |
| Local Interfaces | DisplayPort, USB keyboard/mouse |
| Remote Access | IP remote via Ethernet |
| USB Ports | 10 total (host/device support) |
| Mounting | 1U rack mount |
| Keyboard | Integrated rack keyboard |
| Pointing Device | Integrated touchpad |
| Network Speed | 10/100/1000 Mbps |
| Authentication | RADIUS, LDAP, LDAPS, MS Active Directory |
| Operating Temp | 0-40 °C |
| Dimensions (H×W×D) | 1.73″ × 18.9″ × 26.77″ |
| Weight | ~31 lb |
| Compliance | RoHS, REACH, TAA compliant |
