Detailed Specifications

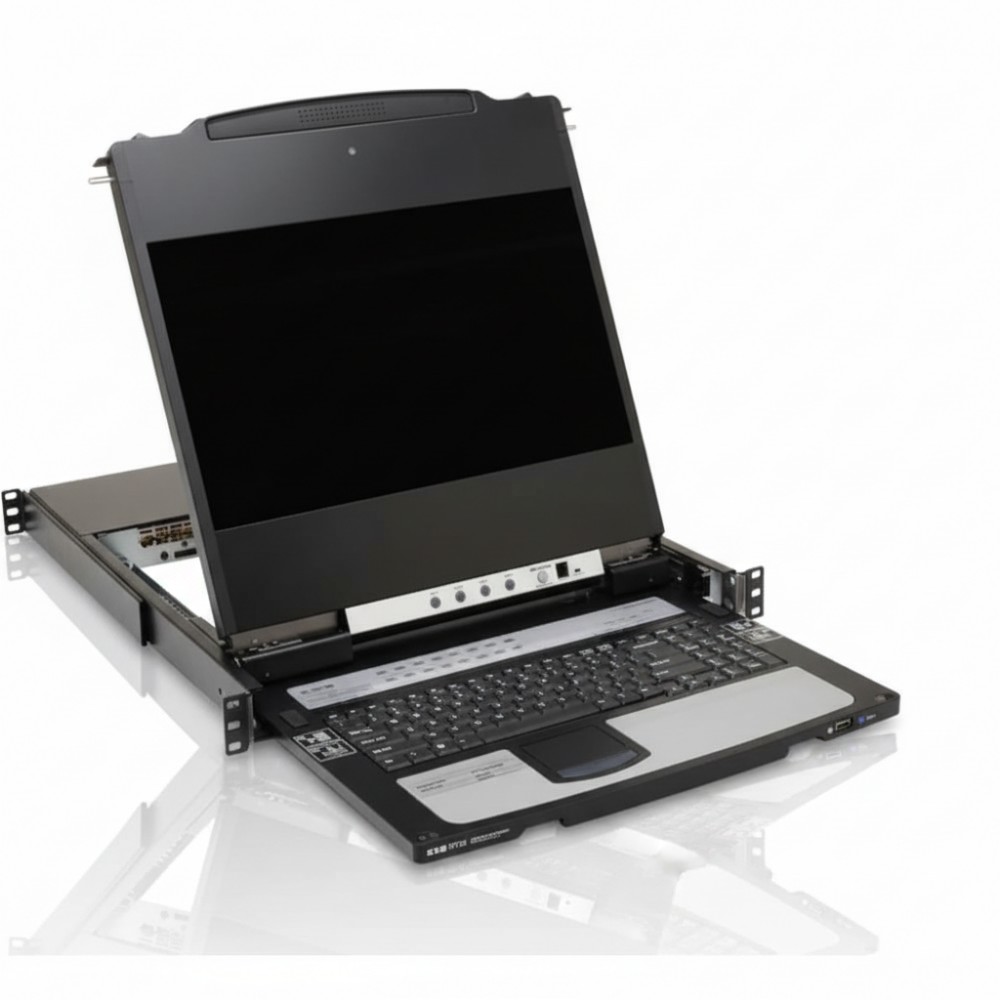

Eaton B030-DP16-17D - 16-Port Dual Rail LCD KVM Switch
Overview :
The Eaton B030-DP16-17D is a rack-mounted dual rail KVM console featuring a 17-inch LCD display with integrated 16-port DisplayPort KVM switching. Designed for secure and efficient access to multiple servers from a single console, it simplifies data center and enterprise rack management. Dual rail design allows the LCD and keyboard/touchpad to slide independently for space optimization. Ideal for IT administrators managing multi-server environments in data centers and server rooms.
Key Features :
• 17-inch LCD with independent dual rail design
• 16-port DisplayPort KVM switching capability
• USB console with integrated touchpad and keyboard
• Mounts in standard 1U rack configuration
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | B030-DP16-17D |
| Product Type | Dual Rail LCD KVM Switch |
| Display Size | 17-inch LCD |
| Display Resolution | 1280 x 1024 |
| KVM Ports | 16 x DisplayPort |
| Console Interface | USB keyboard and touchpad |
| Video Input Type | DisplayPort |
| Mounting Type | 1U rackmount |
| Rail Design | Dual rail (independent LCD/keyboard) |
| Power Input | 100-240V AC, 50/60 Hz |
| Operating Temperature | 0°C to 50°C |
| Dimensions (H x W x D) | Approx. 44 x 482 x 700 mm |
| Weight | Approx. 17 kg |
| Compatibility | Multi-platform (Windows, Linux, UNIX) |
