HPE AF630A

Rack-Mountable KVM Console Kit (LCD8500 18.5", 60 Hz)

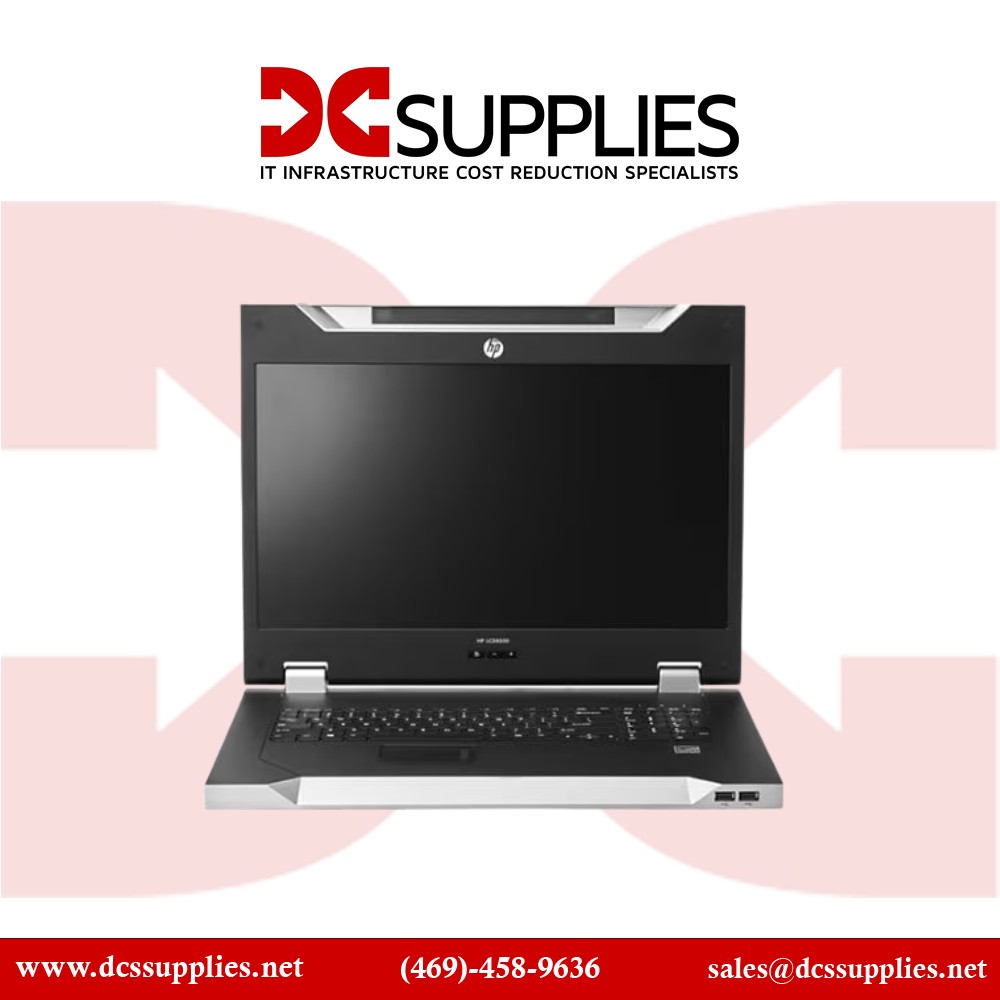

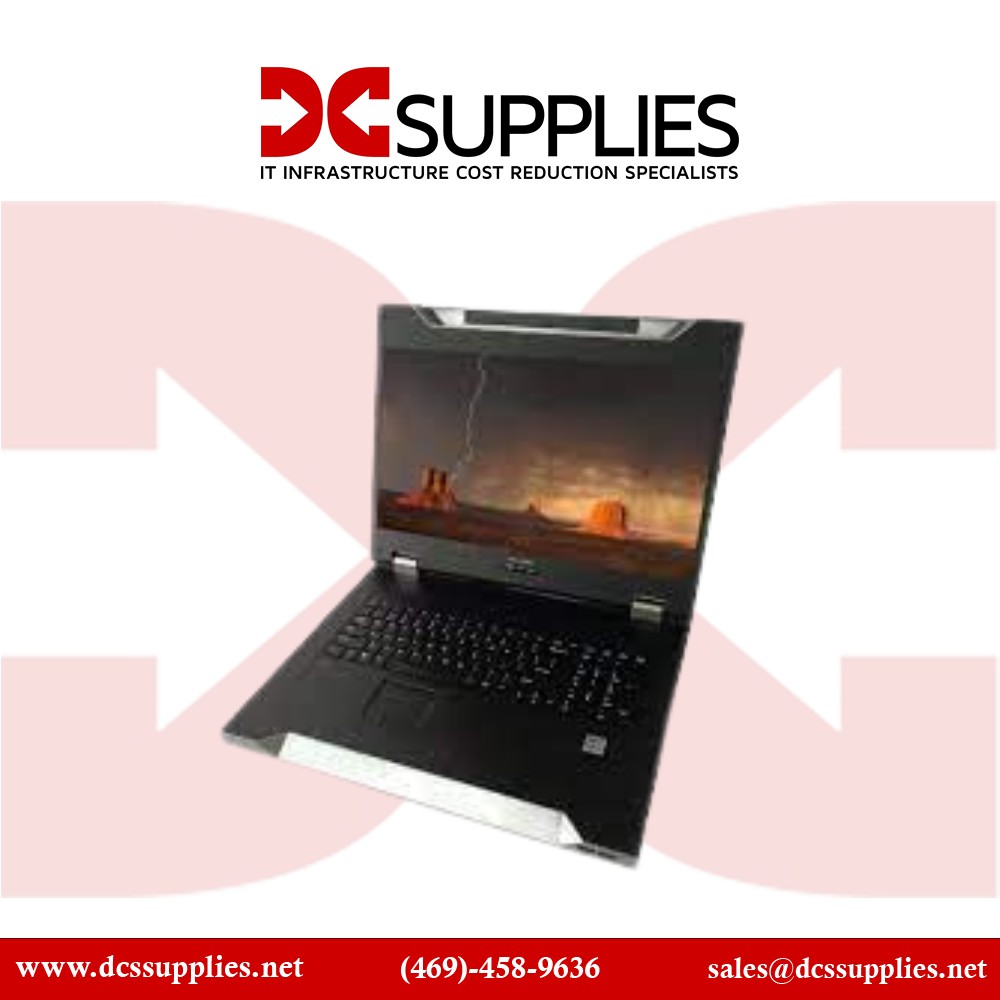

The HPEAF630A, also known as the LCD8500 1U Rackmount Console Kit, is a space-efficient KVM Console integrating a bright 18.5″ WXGA+ display with a full keyboard and touchpad×all in a single 1U chassis. Designed for HPEserver racks, it enables quick access for monitoring and maintenance without the need for external peripherals. The crisp BrightView LCD provides up to 1600 × 1200 resolution at a fluid 60-75 Hz refresh rate, while its durable silver-metal enclosure ensures durability and easy rack identification. Ideal for dense environments, it supports tool-less installation and includes front-mounted USB ports for easy connections.

Features

The AF630A is tailored for data centers that require immediate rack access without sacrificing space or performance. Its high-quality Active Matrix TFT LCD supports common resolutions×from VGA to 1600 × 1200×ensuring compatibility with various server outputs. Integrated front USB ports enable convenient attachment of virtual-media-capable KVM switches. Its ergonomic design includes a three-button touchpad, scroll keys, and Windows shortcut keys for intuitive navigation. The "lid switch" automatically switches the display off when closed and powers it back on upon opening, conserving backlight life. Tool-less rails simplify rack installation, and the console is built to support standard 11000 G2, ProLiant DL20 Gen9, ML110 Gen9, ML350p Gen8, MicroServer Gen8, and similar systems.

Advanced Options

With a power draw of approximately 36 W (AC 120/230 V, 50/60 Hz), the AF630A offers efficiency in energy-sensitive environments. The bright silver finish enhances visibility in dense racks, while the sturdy 1U construction supports additional KVM modules behind it, ensuring streamlined rack organization. Built for daily operations, the AF630A delivers reliable performance in harsh rack-mounted environments. The inactive backlight preserves component lifespan via the lid-switch function×ideal for long deployment cycles. Active Matrix TFT ensures minimal display lag and crisp visuals, vital for accurate server management.

Product Key Features

• 18.5″ BrightView LCD display (WXGA+ up to 1600 × 1200)

• Integrated keyboard with touchpad and scroll keys

• Lid-switch auto backlight control

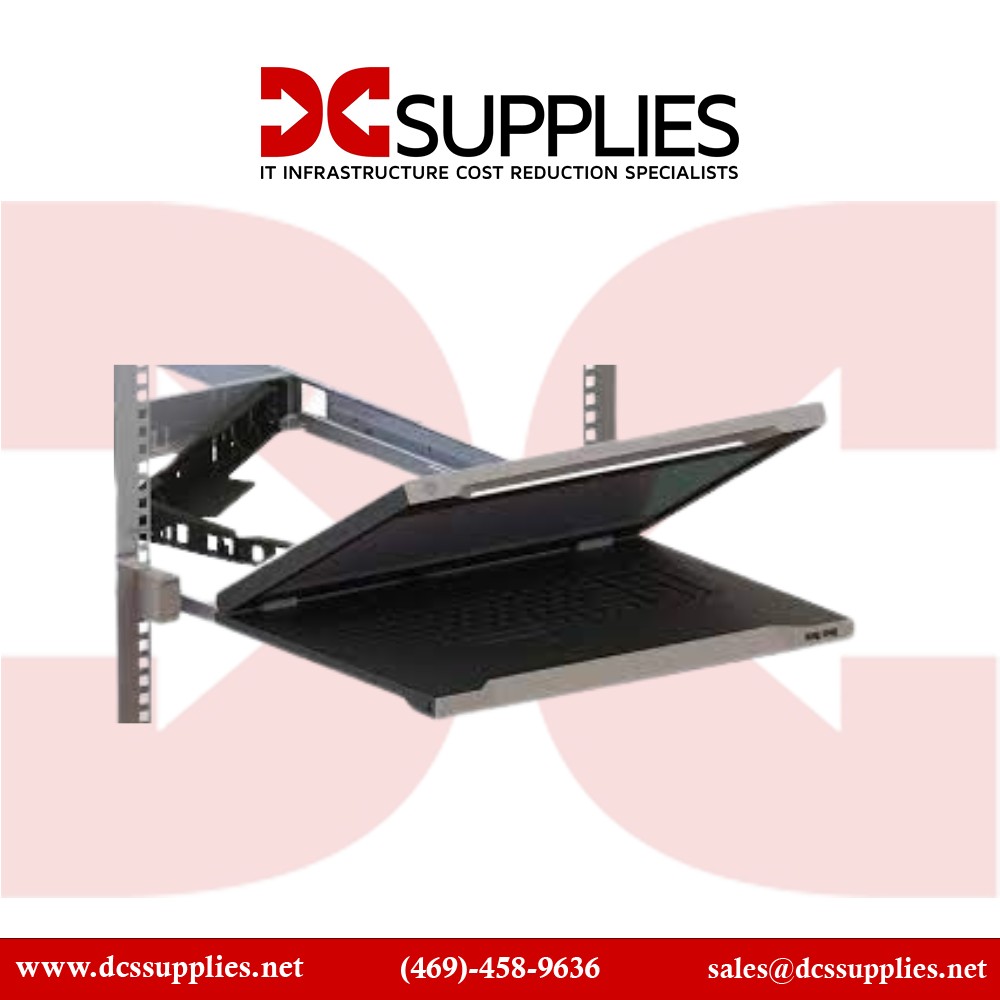

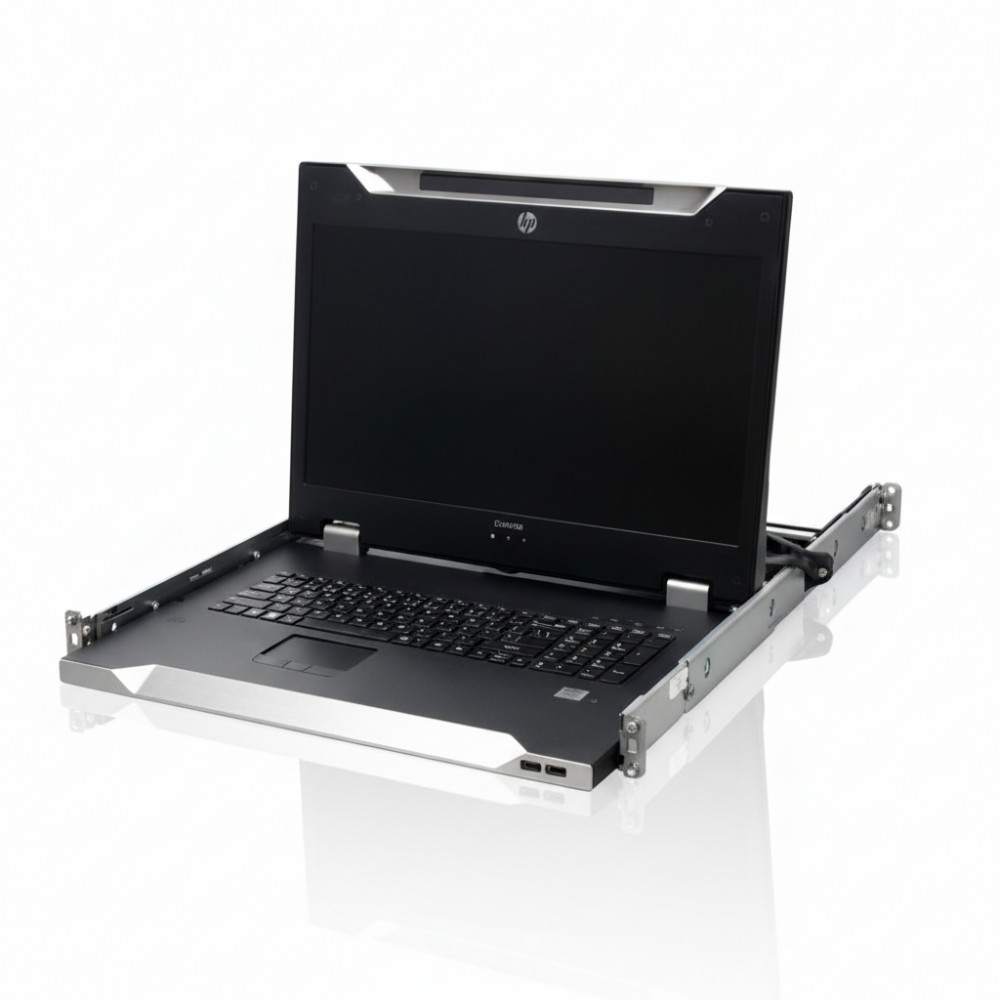

• Tool-less 1U rack installation rails included

• Front USB 2.0 ports for virtual media support

• Silver enclosure for easy rack visibility

• Compatible with various HPEservers and KVM switches

• Approx. 36 W power consumption

• New or refurbished models available (90-day warranty)

---

Reliability & Performance

Designed to support adjacent KVM modules, it focuses on rack density and ease of access. Front USB ports enable virtual media functionality, enhancing remote diagnostics and updates. The included rails streamline deployment, reducing downtime during maintenance. Refurbished units, often rigorously tested and supported by warranty, provide a budget-friendly alternative with reliable performance.

Key Features :

• • 18.5″ display up to 1600×1200 @ 60 Hz

  • Built-in keyboard and touchpad with scroll keys

  • Auto display off/on with lid switch

  • Tool-less 1U rack installation

  • Front USB ports for virtual media

  • Space-saving design supporting rear KVM modules

  • Efficient power usage (~36 W)

  • Durable silver chassis, easy to locate in racks

  • Refurbished with 90-day warranty option

Specification	Details
Model Number	AF630A (LCD8500 Rackmount Console Kit)
Type	1U KVM Console (LCD + Keyboard + Touchpad)
Display	18.5″ WXGA+ TFT LCD BrightView
Resolution	Up to 1600 × 1200 @ 60-75 Hz
Input Devices	US Keyboard, 3-button Touchpad, Scroll keys
Interfaces	2 × USB 2.0 ports
Special Features	Lid-switch power control, Tool-less mounting
Power Consumption	~36 W (AC 120/230 V)
Form Factor	1U Rack Mountable
Compatibility	HPEservers (e.g., DL20 Gen9, ML110 Gen9, etc.)
Color	Silver
Condition / Warranty	New or Refurbished (90-day)
Weight & Dimensions	Approx. 11.4 lbs; 17.xx" × 17.xxx" × 1.66"
