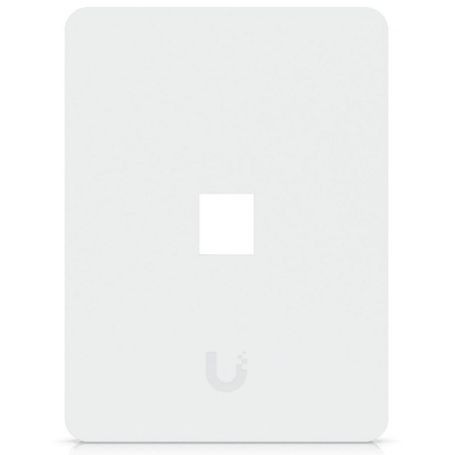

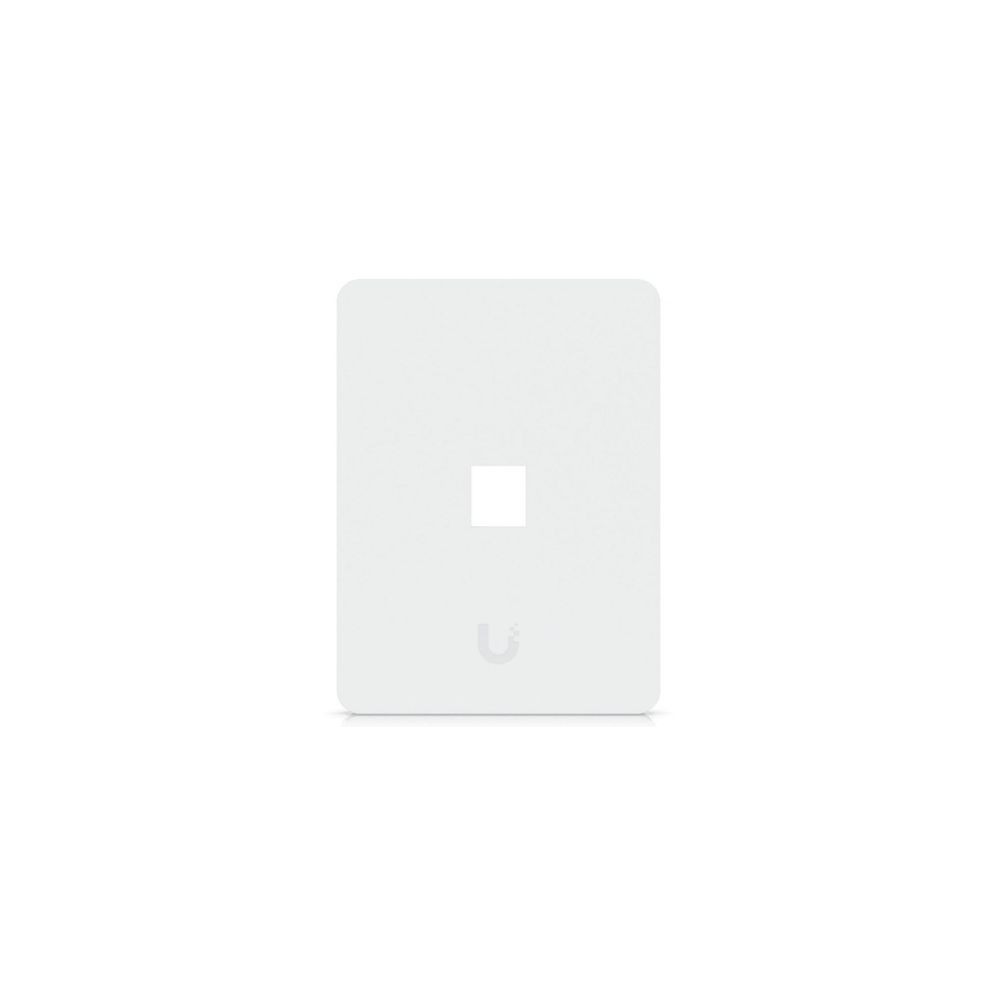

Ubiquiti UACC-WP-KEYSTONE-V-1P – Universal Vertical 1-Port Paintable Keystone Wall Plate, 4-Pack
Overview
The Ubiquiti UACC-WP-KEYSTONE-V-1P is a universal vertical 1-port keystone wall plate designed for structured cabling and low-voltage installations. Its paintable cover provides a customizable finish while the universal keystone opening accommodates a compatible keystone module.
The product is supplied as a 4-pack, providing four single-port wall plate assemblies for multi-outlet installations or spare inventory. The construction combines a polycarbonate front panel with an SGCC steel mounting plate.
Technical Information
- Vertical 1-port keystone configuration
- Universal keystone wall plate design
- Paintable front cover for customizable installation finishes
- Polycarbonate front panel with SGCC steel mounting plate
- Supplied as a 4-pack
Compatibility
The UACC-WP-KEYSTONE-V-1P is designed for compatible standard keystone modules and supported single-gang mounting boxes. Published compatibility includes US/CA 2" x 4", EU/UK 86 x 86 mm, and EU 60 mm mounting configurations.
The keystone module itself is not included with the wall plate.
Applications
This wall plate is intended for network, AV, telecommunications, and other low-voltage structured cabling installations requiring a single keystone connection. Its vertical orientation is suitable where the available wall-box arrangement or installation design calls for a vertically oriented port.
Key Features
- Single vertical keystone port
- Paintable cover for a customizable finish
- Universal keystone wall plate design
- Polycarbonate front panel with SGCC steel mount
- Four wall plates supplied per pack
DC Supplies Product Note
This is a passive wall-termination accessory and does not provide network connectivity by itself. A compatible keystone module must be installed separately for the required connection type.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-WP-KEYSTONE-V-1P |
| Product Type | Universal Paintable Keystone Wall Plate |
| Configuration | 1-Port |
| Orientation | Vertical |
| Pack Quantity | 4 Wall Plates |
| Front Panel Material | Polycarbonate |
| Mount Material | SGCC Steel |
| Gangbox Mount Dimensions | 111.6 x 81.5 x 3.2 mm |
| Front Panel Dimensions | 118 x 88 x 9.6 mm |
| Gangbox Mount Weight | 43 g |
| Front Panel Weight | 43 g |
| Supported Mounting | US/CA 2" x 4", EU/UK 86 x 86 mm, EU 60 mm |
| Cover | Paintable |
FAQs
How many keystone ports does each UACC-WP-KEYSTONE-V-1P wall plate have?
Each wall plate provides one vertical keystone port.
How many wall plates are included?
The UACC-WP-KEYSTONE-V-1P is supplied as a 4-pack.
Are keystone modules included?
No. The compatible keystone module must be purchased separately.
Can the wall plate be painted?
Yes. The front cover is designed with a paintable surface for customization.
What materials are used?
The front panel is made from polycarbonate and the mounting plate is made from SGCC steel.
