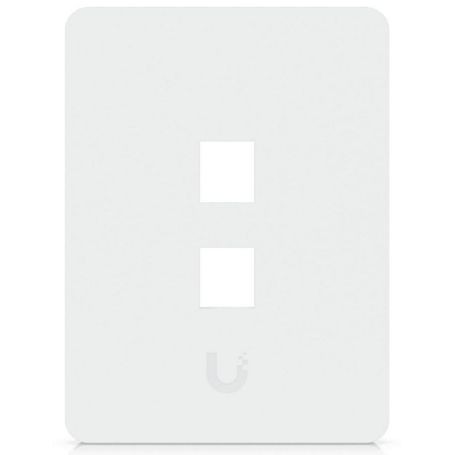

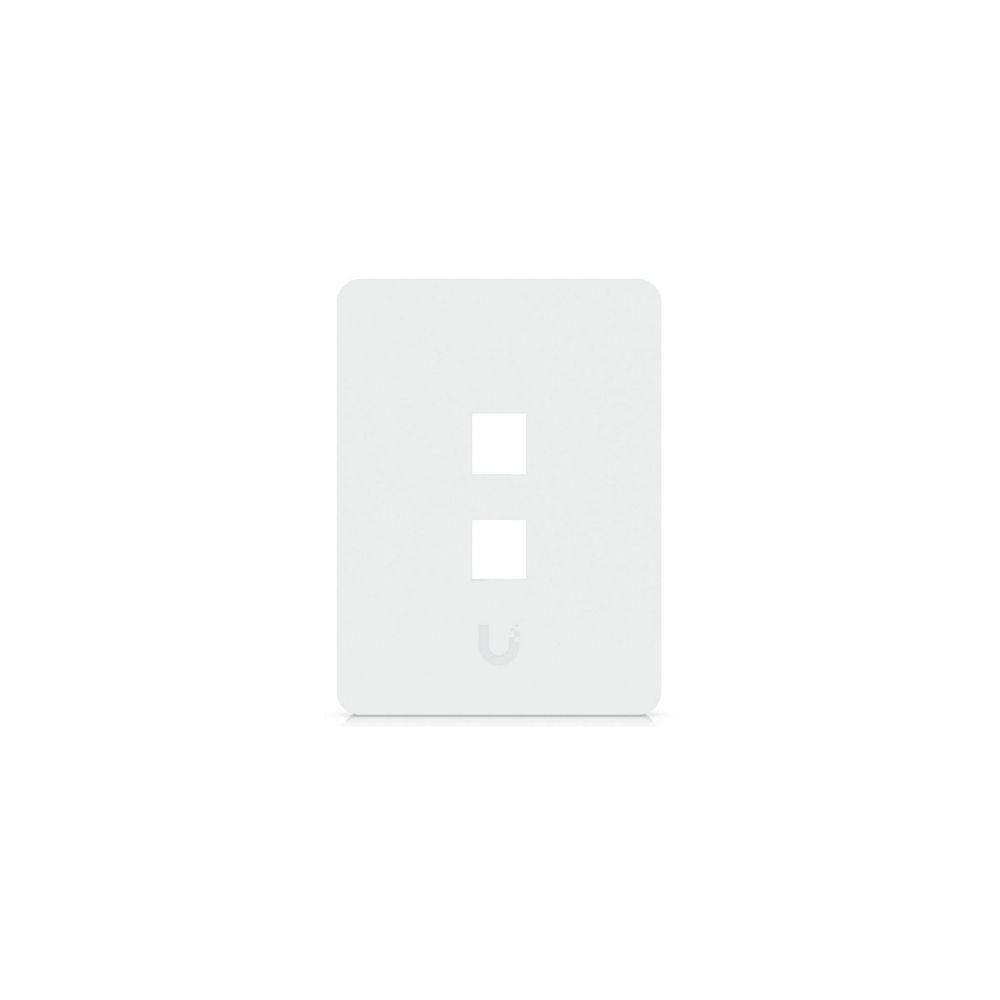

Ubiquiti UACC-WP-KEYSTONE-V-2P – Universal Paintable Vertical 2-Port Keystone Wall Plate, 4-Pack
Overview
The Ubiquiti UACC-WP-KEYSTONE-V-2P is a universal vertical 2-port keystone wall plate designed for structured cabling and low-voltage installations. It provides two keystone openings in a single-gang wall plate configuration and includes a paintable cover for a customizable finished appearance.
The 4-pack is suited to installations requiring multiple wall outlets for Ethernet, AV, or other compatible keystone modules. The plate uses a polycarbonate front panel with an SGCC steel mounting component.
Technical Information
- Two vertical keystone openings in a single-gang wall plate
- Paintable cover for matching installed wall finishes
- Polycarbonate front panel construction
- SGCC steel mounting plate
- Supplied as a 4-pack
Compatibility
The UACC-WP-KEYSTONE-V-2P is designed for compatible standard keystone modules and single-gang electrical boxes. The exact module must be selected separately according to the required connection type, such as Ethernet or other supported keystone formats.
Applications
This wall plate is intended for structured cabling, network, AV, and other low-voltage installations where two keystone connections are required at a wall outlet. Its vertical orientation and paintable cover support installations where appearance and cable termination are both considerations.
Key Features
- Two-port vertical keystone wall plate
- Paintable cover for customizable wall finishes
- Polycarbonate front panel with SGCC steel mounting plate
- Compatible with standard single-gang mounting configurations
- Four wall plates supplied per pack
DC Supplies Product Note
This is a passive wall-termination accessory; keystone modules are not included. Select the appropriate compatible keystone inserts separately for the required network or AV connection.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-WP-KEYSTONE-V-2P |
| Product Type | Vertical 2-Port Keystone Wall Plate |
| Orientation | Vertical |
| Port Capacity | 2 Keystone Ports |
| Pack Quantity | 4 |
| Front Panel Material | Polycarbonate |
| Mounting Material | SGCC Steel |
| Front Panel Dimensions | 118 x 88 x 9.6 mm |
| Gangbox Mount Dimensions | 111.6 x 81.5 x 3.2 mm |
| Front Panel Weight | 43 g |
| Mounting | Single-Gang Wall Mount |
| Cover | Paintable |
| Color | White |
FAQs
How many wall plates are included?
The UACC-WP-KEYSTONE-V-2P is supplied as a 4-pack.
How many keystone modules does each wall plate support?
Each vertical wall plate provides two keystone openings.
Are the keystone modules included?
No. Compatible keystone modules are installed separately.
Can the wall plate cover be painted?
Yes. The product has a paintable cover intended to allow customization to the surrounding wall finish.
What are the front panel dimensions?
The front panel measures 118 x 88 x 9.6 mm.
