Detailed Specifications

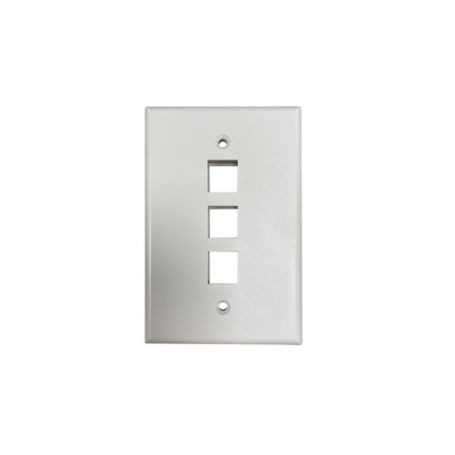

Eaton N042AB-003-IVM Tripp Lite Safe-IT 3-Port Single-Gang Keystone Wall Plate
Overview
The Eaton N042AB-003-IVM is a Tripp Lite Safe-IT 3-Port Single-Gang Keystone Wall Plate with an ivory matte finish. It provides three universal keystone openings for terminating in-wall audio/video, voice and data connections. Compatible keystone formats include Cat5/5e, Cat6, Cat6a, HDMI, DisplayPort, HDBaseT and USB 2.0.
The wall plate uses high-impact ABS plastic with an antibacterial material tested to ISO 22196:2011 for effectiveness against E. coli and Staphylococcus aureus. This makes it suitable for installations in offices, schools, healthcare facilities, hospitality environments and other shared spaces where additional surface protection is desirable.
The N042AB-003-IVM is also TAA compliant and uses a standard single-gang form factor. Two mounting screws are included.
Key Features
- 3-port single-gang design accepts standard keystone jacks.
- Antibacterial material tested against E. coli and staph according to ISO 22196:2011.
- Supports Cat5/5e, Cat6, Cat6a, HDMI, DisplayPort, HDBaseT and USB 2.0 keystone applications.
- High-impact ABS construction with UL 94V-0 flame-retardant material.
- Ivory matte finish with TAA compliance for qualifying government procurement.
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Model | N042AB-003-IVM |
| Product Line | Safe-IT |
| Product Type | Keystone Wall Plate / Faceplate |
| Wall Plate Type | Single-Gang |
| Number of Ports | 3 |
| Keystone Compatibility | Universal Keystone |
| Supported Technologies | Cat5/5e, Cat6, Cat6a, HDMI, DisplayPort, HDBaseT, USB 2.0 |
| Material | High-Impact ABS Plastic |
| Antibacterial | Yes |
| Antibacterial Standard | ISO 22196:2011 |
| Flame Rating | UL 94V-0 |
| Color | Ivory Matte |
| Mounting | Wall / Single-Gang Box |
| Mounting Hardware | 2 Screws Included |
| Height | 4.84 in |
| Width | 3.11 in |
| Depth | 0.44 in |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -40°C to 68°C |
| Operating Humidity | 10%-90% RH, Non-Condensing |
| Storage Humidity | 10%-90% RH, Non-Condensing |
| Certifications | UL, CSA |
| Compliance | TAA, RoHS, REACH |
| UPC | 037332269119 |
| Warranty | Lifetime Limited |
