Detailed Specifications

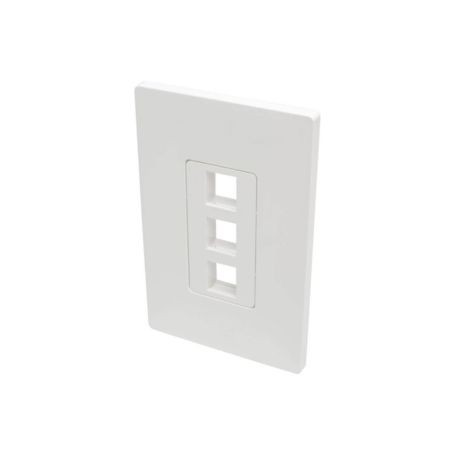

Eaton N080-103 Tripp Lite 3-Port Single-Gang Universal Keystone Wallplate
Overview
The Eaton N080-103 is a Tripp Lite by Eaton 3-Port Single-Gang Universal Keystone Wallplate designed to provide a clean, organized termination point for audio/video, voice and Ethernet connections at the wall. The three openings accept compatible modular keystone jacks for applications including Cat5e/6/6a, USB, HDMI, DisplayPort and RCA.
The wallplate is made from high-impact polycarbonate and is finished in white for standard commercial and office installations. It fits mid-sized or standard single-gang boxes and includes mounting hardware for installation.
Designed for structured cabling and AV installations, the N080-103 is a passive faceplate rather than an active networking or signal-conversion device. The three keystone cutouts allow installers to select the appropriate modular connector for the required application.
Key Features
- Provides 3 universal keystone openings in a single-gang wallplate
- Supports keystone modules for Cat5e/6/6a, USB, HDMI, DisplayPort and RCA applications
- Fits standard or mid-sized single-gang electrical boxes
- Constructed from durable high-impact polycarbonate
- Includes mounting hardware and is TAA compliant
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Series | Tripp Lite by Eaton |
| Model | N080-103 |
| Product Type | 3-Port Universal Keystone Wallplate |
| Wallplate Style | Single-Gang |
| Number of Ports | 3 |
| Port Type | Keystone Jack Cutouts |
| Supported Applications | Cat5e/6/6a, USB, HDMI, DisplayPort, RCA |
| Material | High-Impact Polycarbonate (PC) |
| Color | White |
| Mounting | Single-Gang Wall Box |
| Compatible Box | Standard or Mid-Sized Single-Gang Box |
| Mounting Hardware | Included |
| Technology | Passive Faceplate |
| TAA Compliant | Yes |
| RoHS | Yes |
| Country of Origin | Taiwan |
| Shipping Dimensions | 0.50 × 4.80 × 3.10 in |
| Shipping Weight | 0.10 lb |
| Warranty | Lifetime Limited Warranty |
| UPC | 037332195555 |
