Overview

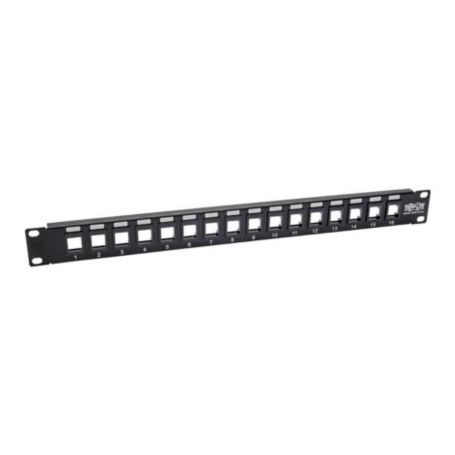

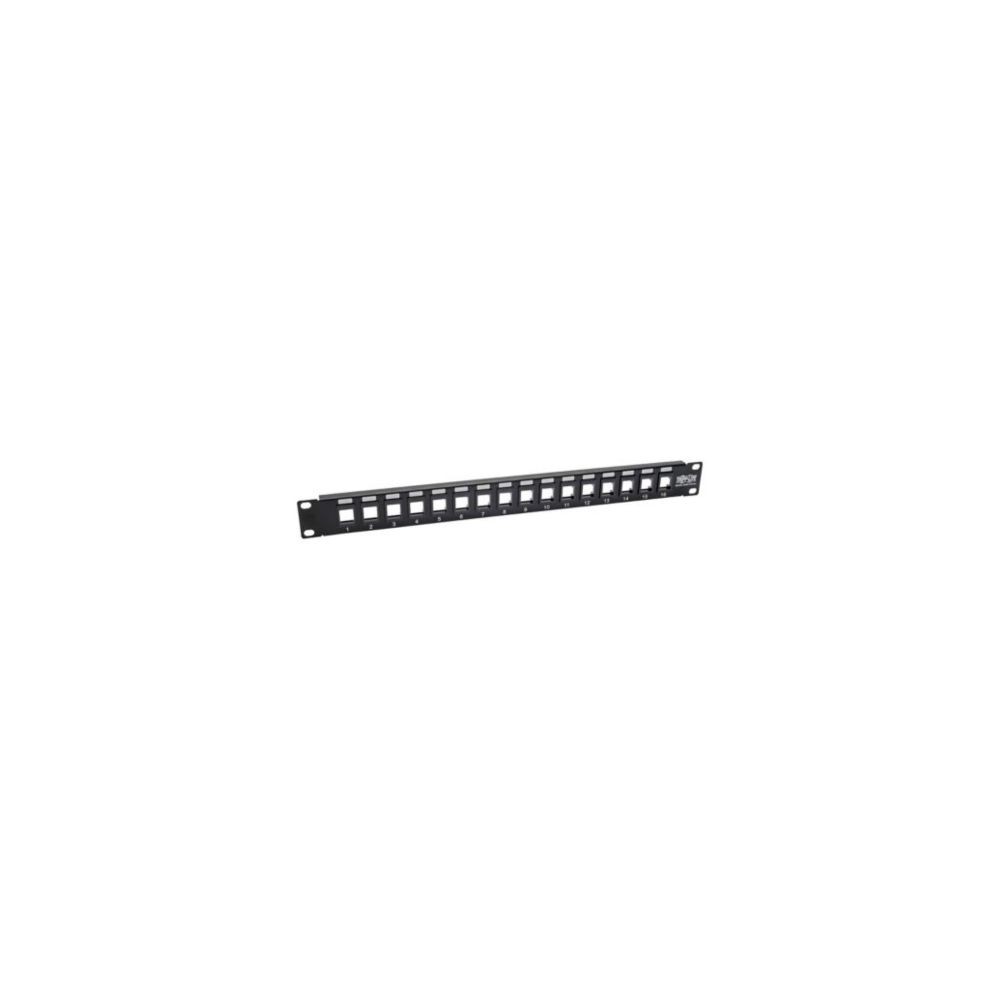

The Tripp Lite N062-016-KJ is a 16-port, 1U rack-mount unshielded blank keystone/multimedia patch panel designed to organize and terminate a variety of cabling connections. Its 16 blank cutouts accept compatible keystone jacks for Ethernet, voice, HDMI audio/video, USB, and other applications.
Technical Information
The panel is constructed from heavy-duty cold-rolled steel and uses a standard 19-inch rack width. Each of the 16 positions is clearly numbered for easier connection identification. The blank modular design allows the installed keystone modules to determine the specific connectivity provided by the finished patch panel.
Compatibility
The N062-016-KJ mounts into 1U of an EIA-standard 19-inch two-post rack or wall-mount rack enclosure. The 16 openings are designed for compatible keystone jacks, including Tripp Lite keystone jacks and other compatible keystone modules. Supported application types include RJ45 Ethernet, Cat5e/Cat6/Cat6a cabling, HDMI, DisplayPort, USB, and voice connections, depending on the installed keystone modules.
Key Features
- 16 blank keystone jack cutouts
- 1U rack-mount format for standard 19-inch installations
- Unshielded modular design for flexible multimedia connectivity
- Numbered ports for connection identification
- Heavy-duty cold-rolled steel construction
Applications
- Structured Ethernet cabling installations
- Voice and telephone cabling organization
- HDMI and other audio/video patching
- USB and multimedia connectivity systems
- Network racks and wall-mount rack enclosures
DC Supplies Product Note
The N062-016-KJ is a blank patch panel rather than a pre-populated RJ45 panel. Keystone jacks are installed separately, allowing the 16 positions to be configured according to the connectivity requirements of the installation.
Specifications
| Specification | Details |
|---|
| Brand | Tripp Lite |
| Part Number / MPN | N062-016-KJ |
| Product Type | Rack-Mount Blank Keystone/Multimedia Patch Panel |
| Series | Copper Panels |
| Number of Positions | 16 |
| Rack Height | 1U |
| Rack Width | 19 in. |
| Panel Type | Unshielded, blank keystone |
| Construction | Heavy-duty cold-rolled steel |
| Color | Black |
| Compatible Technologies | Cat5/5e, Cat6, Cat6a, DisplayPort, HDMI, USB, USB 2.0, USB 3.0 |
| Compatible Applications | Ethernet, voice, audio/video, USB and multimedia |
| Mounting | EIA-standard 19-inch 2-post rack or wall-mount rack |
| Port Identification | Numbered positions |
| Grounding | Grounding wire included |
| UPC | 037332193575 |
| Compliance | RoHS |
| Warranty | Lifetime limited warranty |
Package Contents
- N062-016-KJ 16-Port 1U Rack-Mount Unshielded Blank Keystone/Multimedia Patch Panel
- Grounding wire
FAQs
How many keystone positions does the N062-016-KJ provide?
The panel provides 16 blank keystone jack positions.
Does the patch panel include RJ45 keystone jacks?
No. The N062-016-KJ is a blank panel, so compatible keystone jacks are installed separately.
What rack size does it fit?
It mounts into 1U of an EIA-standard 19-inch two-post rack or wall-mount rack enclosure.
What types of connections can be installed?
Compatible keystone modules can support Ethernet, voice, HDMI, DisplayPort, USB, and other multimedia applications.
Is the panel shielded?
No. The N062-016-KJ is an unshielded blank keystone patch panel.
