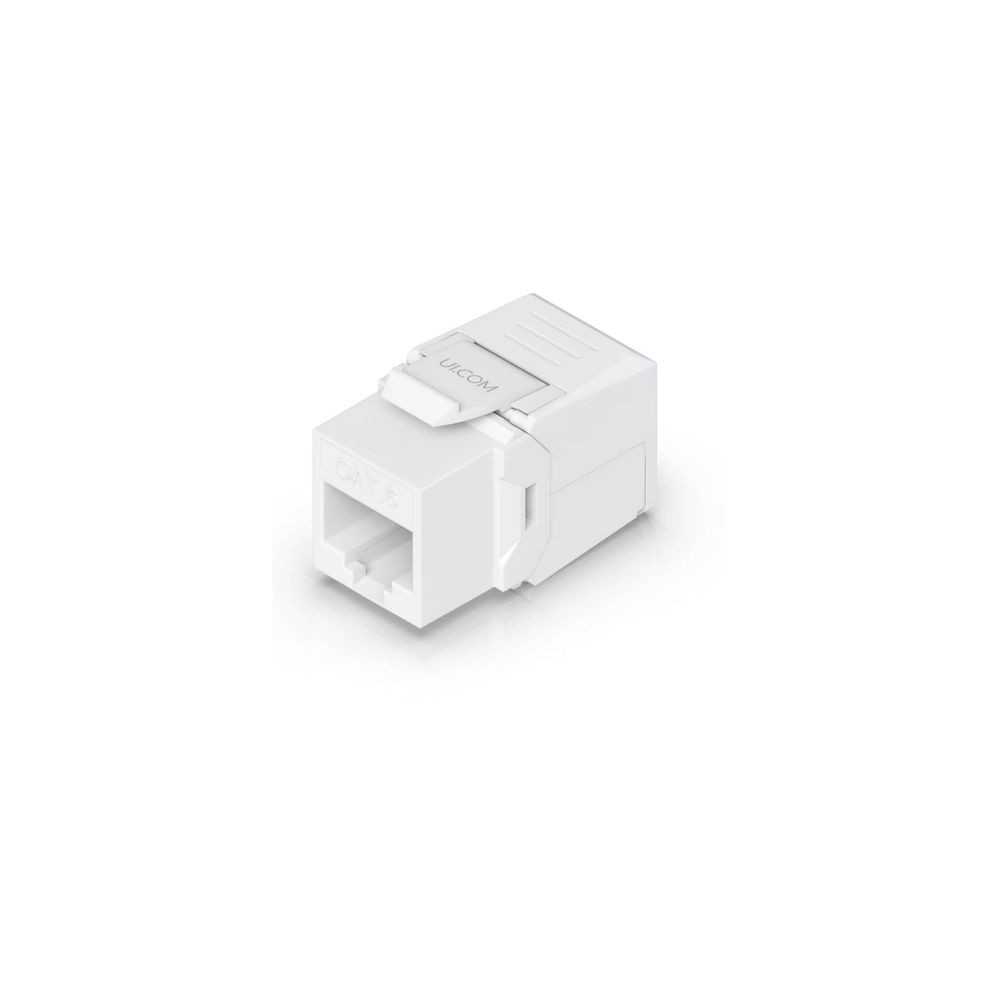

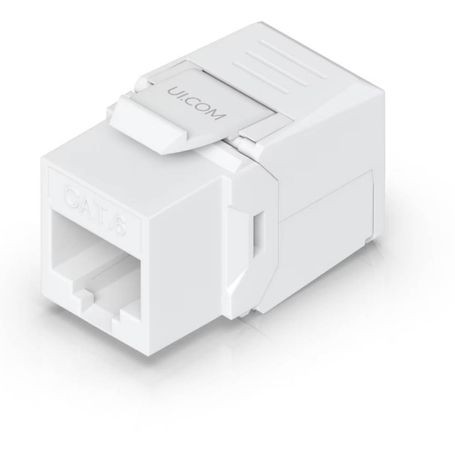

Ubiquiti UACC-KEYSTONE-JACK-C6 – UniFi Cat6 Toolless Keystone Jack 12-Pack for Ethernet Cable Termination
Overview
The Ubiquiti UACC-KEYSTONE-JACK-C6 is a Category 6 toolless keystone jack designed for terminating Ethernet cable without a punch-down or crimping tool. It provides a compact modular connection point for structured cabling installations using compatible Cat6 cable.
The jack supports both TIA-568A and TIA-568B wiring configurations and accepts 23–26 AWG cable. Its polycarbonate construction, flush-mount design, and 34.8 x 14.5 x 16.1 mm dimensions make it suitable for compatible keystone patch panels and other structured cabling hardware. The product is supplied in a 12-pack.
Technical Information
- Category 6 Ethernet keystone jack
- Toolless cable termination without punch-down or crimping tools
- TIA-568A and TIA-568B wiring compatible
- Supports 23–26 AWG cable
- 12 keystone jacks included per pack
Cat6 Connectivity
The UACC-KEYSTONE-JACK-C6 is designed to terminate compatible Cat6 Ethernet cable into a modular keystone connection. Its toolless design allows the cable conductors to be positioned in the jack and secured without requiring a conventional punch-down or crimping tool.
Wiring Compatibility
The keystone jack supports both TIA-568A and TIA-568B wiring standards, allowing it to be incorporated into structured cabling installations using either standard. Ubiquiti specifies a recommended cable gauge range of 23–26 AWG.
Mounting and Installation
The UACC-KEYSTONE-JACK-C6 uses flush-mount installation and is designed for snap-in installation into compatible keystone openings. Ubiquiti specifically identifies easy snap-in installation on a blank patch panel, making the jack suitable for modular patch-panel deployments.
Construction and Physical Design
The jack uses polycarbonate construction and measures 34.8 x 14.5 x 16.1 mm (1.4 x 0.6 x 0.6 inches). Each jack weighs 7.3 g (0.3 oz). The compact keystone form factor is designed for installation within compatible structured cabling panels and hardware.
Applications
The UACC-KEYSTONE-JACK-C6 is intended for structured Ethernet cabling installations requiring modular Cat6 cable termination. It can be used with compatible blank patch panels and other keystone-compatible mounting locations where a tool-free Cat6 termination method is required.
Key Features
- Cat6 Ethernet keystone jack for structured cabling
- Toolless termination without punch-down or crimping tools
- TIA-568A and TIA-568B wiring compatible
- Supports 23–26 AWG Ethernet cable
- 12-pack with flush-mount polycarbonate construction
DC Supplies Product Note
The UACC-KEYSTONE-JACK-C6 is a passive structured-cabling component and does not provide switching, routing, PoE, power delivery, or active signal processing. It is a cable termination jack rather than a pass-through coupler, so it is intended for terminating compatible Ethernet cable at a keystone connection point.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-KEYSTONE-JACK-C6 |
| Product Type | Cat6 Keystone Jack |
| Product Family | UniFi |
| Category | Category 6 |
| Termination Type | Toolless |
| Wiring Standard | TIA-568A and TIA-568B Compatible |
| Suggested Cable Gauge | 23–26 AWG |
| Material | Polycarbonate |
| Mounting | Flush Mount Installation |
| Dimensions | 34.8 x 14.5 x 16.1 mm (1.4 x 0.6 x 0.6") |
| Weight | 7.3 g (0.3 oz) |
| Pack Quantity | 12-Pack |
| Compatible Patch Panel | UACC-Rack-Panel-Patch-Blank-24 |
FAQs
What is the Ubiquiti UACC-KEYSTONE-JACK-C6?
The UACC-KEYSTONE-JACK-C6 is a Category 6 toolless keystone jack for terminating compatible Ethernet cable in structured cabling installations.
Does the UACC-KEYSTONE-JACK-C6 require a punch-down tool?
No. Ubiquiti describes it as a toolless keystone that terminates Cat6 Ethernet cable without a punch-down or crimping tool.
Which wiring standards does the UACC-KEYSTONE-JACK-C6 support?
The jack is compatible with both TIA-568A and TIA-568B wiring configurations.
What cable gauge does the UACC-KEYSTONE-JACK-C6 support?
Ubiquiti specifies a suggested cable gauge of 23–26 AWG.
How many UACC-KEYSTONE-JACK-C6 units are included?
The product is supplied as a 12-pack containing 12 Cat6 keystone jacks.
What are the dimensions of the UACC-KEYSTONE-JACK-C6?
Each jack measures 34.8 x 14.5 x 16.1 mm (1.4 x 0.6 x 0.6 inches) and weighs 7.3 g (0.3 oz).
