Overview

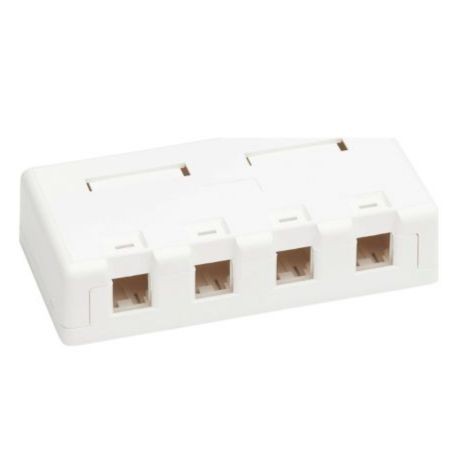

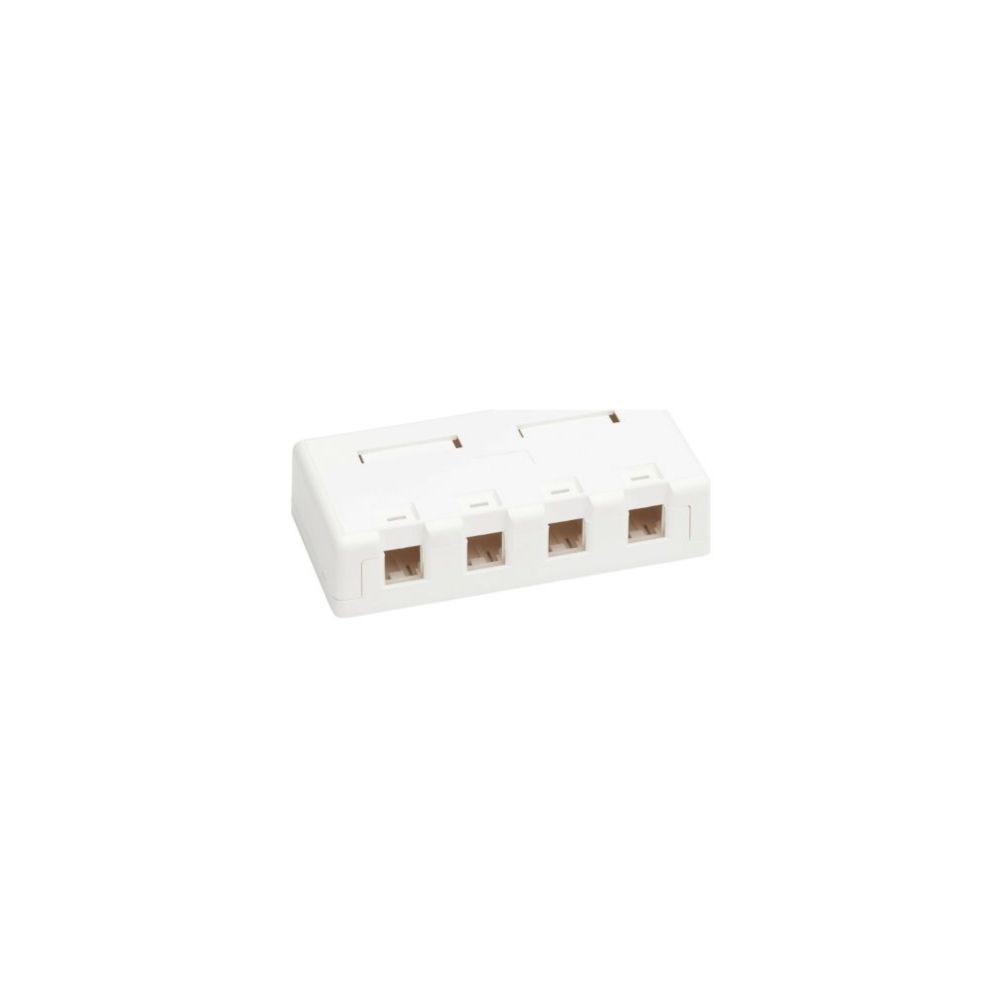

The Tripp Lite N082-004-WH is a four-port surface-mount box designed to provide a convenient mounting location for modular keystone jacks. Its surface-mount design is useful where installing an in-wall electrical box is impractical or unavailable, including wall, ceiling and baseboard installations.
Keystone Compatibility
The four openings accept common keystone-style modules. Compatible applications can include Cat5e, Cat6 and Cat6a data connections as well as HDMI, DisplayPort, RCA and USB keystone modules, depending on the specific module selected. The box itself does not provide an Ethernet, video or USB connection; the appropriate keystone jacks are installed separately.
Installation and Cable Routing
The enclosure uses a snap-open top cover for access to the keystone openings. Rear routing slots allow cabling to enter from behind while the box remains mounted against a wall, ceiling or baseboard. Mounting hardware and double-sided tape are provided for installation.
Key Features
- Four keystone module openings
- Surface-mount design for wall, ceiling or baseboard installation
- White flame-resistant ABS construction
- Rear cable-routing slots for flush installation
- Supports a range of modular keystone applications
Applications
The N082-004-WH can be used for structured cabling, home theater connections, VoIP installations and Ethernet wiring where a surface-mounted termination point is preferred. It can also accommodate compatible audio, video and USB keystone modules.
DC Supplies Product Note
Because the N082-004-WH is a mounting box rather than a pre-terminated connectivity product, select the individual keystone modules according to the cable type and connection standard required for the installation.
Specifications
| Brand | Tripp Lite |
|---|
| Part Number / MPN | N082-004-WH |
|---|
| Product Type | Surface-Mount Box / Mounting Box |
|---|
| Number of Ports | 4 |
|---|
| Mounting Type | Surface Mount |
|---|
| Module Type | Keystone |
|---|
| Material | ABS (Acrylonitrile Butadiene Styrene) |
|---|
| Color | White |
|---|
| Compatible Applications | Audio/Video, Voice, Data |
|---|
| Example Keystone Applications | HDMI, DisplayPort, RCA, USB, Cat5e, Cat6, Cat6a |
|---|
| Operating Temperature | -10°C to 60°C |
|---|
| Storage Temperature | -40°C to 68°C |
|---|
| Compliance | RoHS |
|---|
| TAA Compliant | Yes |
|---|
| Warranty | Lifetime limited warranty |
|---|
FAQs
What is the Tripp Lite N082-004-WH used for?
It provides a surface-mounted enclosure for four modular keystone jacks used with audio, voice or data cabling.
Does the N082-004-WH include keystone jacks?
No. The box accepts compatible keystone modules, which are selected separately according to the required connection type.
Can it be used for Ethernet cabling?
Yes. Compatible Cat5e, Cat6 and Cat6a keystone modules can be installed in the four openings.
Where can the box be mounted?
It is designed for surface mounting on locations such as walls, ceilings or baseboards where an in-wall box installation is impractical.
What is the housing made from?
The box is constructed from ABS plastic and is specified as flame-resistant.
