Detailed Specifications

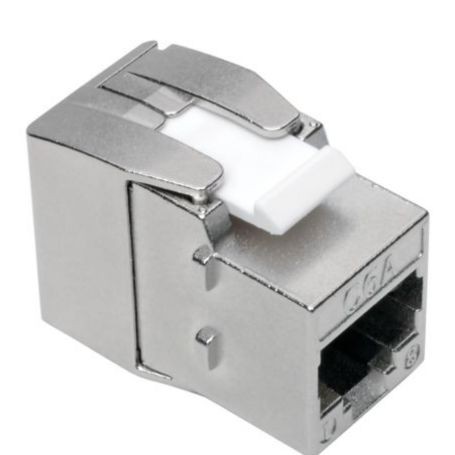

Eaton N238-001-SH-TF Tripp Lite Shielded Keystone Jack Cat6a Cat6 Cat5e RJ45 Dust Cap Toolless, PoE/PoE+ Compliant, TAA
Overview
The Eaton N238-001-SH-TF is a shielded, toolless RJ45 keystone jack for structured copper network installations. It terminates solid 22-24 AWG cabling without a punchdown tool and is designed for installation in wall plates, patch panels, and surface-mount boxes. Eaton and authorized-distributor documentation identify the unit for Cat5e/Cat6 applications and shielded Cat6a cable compatibility.
The jack provides a female RJ45 interface and uses a 110 IDC termination. Its metal shielding is intended to reduce EMI/RFI interference, while the integrated dust cap protects the connector when unused. The design also supports PoE/PoE+ applications.
It is suitable for network closets, data-center cabling, surveillance, VoIP, and other structured-cabling deployments. It should not be selected when the installation specifically requires a Cat6a-rated jack; Eaton lists the N238-001-SH-TFA separately for Cat6a.
Key Features
- Toolless termination reduces installation time and tooling needs
- Shielded housing helps reduce EMI/RFI network interference
- Supports solid 22-24 AWG network cable termination
- Dust cap protects the RJ45 interface from contaminants
- PoE-compatible design supports powered network devices
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton |
| Part Number | N238-001-SH-TF |
| Product Type | RJ45 Keystone Jack |
| Cable Category | Cat5e / Cat6 |
| Connector | RJ45 Female |
| Rear Termination | 110 IDC |
| Shielding | Yes |
| Installation Type | Toolless |
| Number of Ports | 1 |
| Compatible Cable | 22-24 AWG solid wire |
| PoE Capability | Type 4 PoE++ / 100W |
| Operating Temperature | -10°C to 60°C |
| Operating Humidity | 10%-90%, non-condensing |
| TAA Compliance | Yes |
| Warranty | Lifetime limited |
