Detailed Specifications

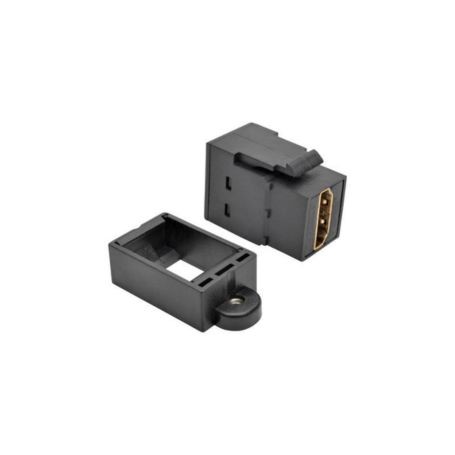

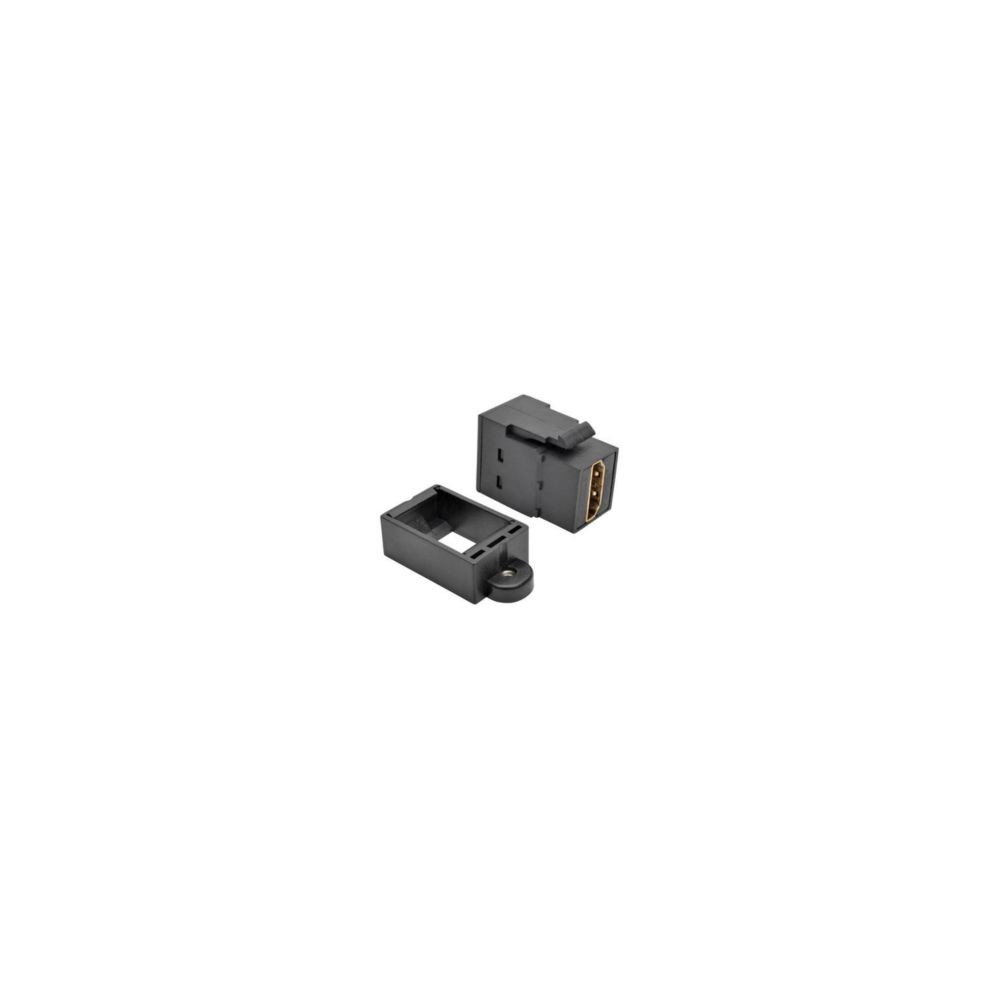

Eaton P164-000-KP-BK Tripp Lite HDMI Keystone/Panel-Mount Coupler
Overview
The Eaton P164-000-KP-BK is a Tripp Lite by Eaton HDMI All-in-One Keystone/Panel-Mount Coupler with female-to-female HDMI connections. It connects two HDMI cables to create a longer cable connection and is designed for installation in standard keystone wallplate or panel cutouts. Eaton's catalog identifies this model as a Keystone/Panel-Mount Coupler supporting up to 4K @ 60Hz.
The coupler includes a panel-mount adapter for installations such as podiums and kiosks. Its molded gold-plated connectors are designed for reliable signal transfer, while the compact design helps keep HDMI connections concealed within wallplates and panels. The manufacturer datasheet specifies compatibility with HDMI cables and a maximum supported resolution of 3840 × 2160 (4K) at 60Hz.
Designed for AV installations, conference rooms, wallplates, podiums, kiosks and digital-signage environments, the P164-000-KP-BK provides a simple passive connection between two HDMI cables without requiring external power. Independent distributor documentation confirms the HDMI female-to-female configuration, black housing and modular mounting-frame functionality.
Key Features
- Connects two HDMI cables to create a longer HDMI connection
- Supports video resolutions up to 4K @ 60Hz
- HDMI female-to-female configuration for direct cable coupling
- Keystone design snaps into compatible wallplate or panel cutouts
- Includes panel-mount adapter for podium and kiosk installations
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Series | Tripp Lite by Eaton |
| Model | P164-000-KP-BK |
| Product Type | HDMI Keystone/Panel-Mount Coupler |
| Technology | HDMI |
| Connector Configuration | HDMI Female to HDMI Female |
| Connector Type | HDMI Digital Audio/Video Receptacle |
| Maximum Resolution | 3840 × 2160 (4K) @ 60Hz |
| Connector Plating | Gold-Plated |
| Housing Color | Black |
| Mounting Type | Keystone / Panel Mount |
| Panel Mount Adapter | Included |
| Mounting Frame | Included |
| Cable Compatibility | HDMI cables |
| Application | Wallplates, panels, podiums and kiosks |
| UPC | 037332195722 |
| TAA Compliance | Yes |
| Warranty | Lifetime Limited Warranty |
