Detailed Specifications

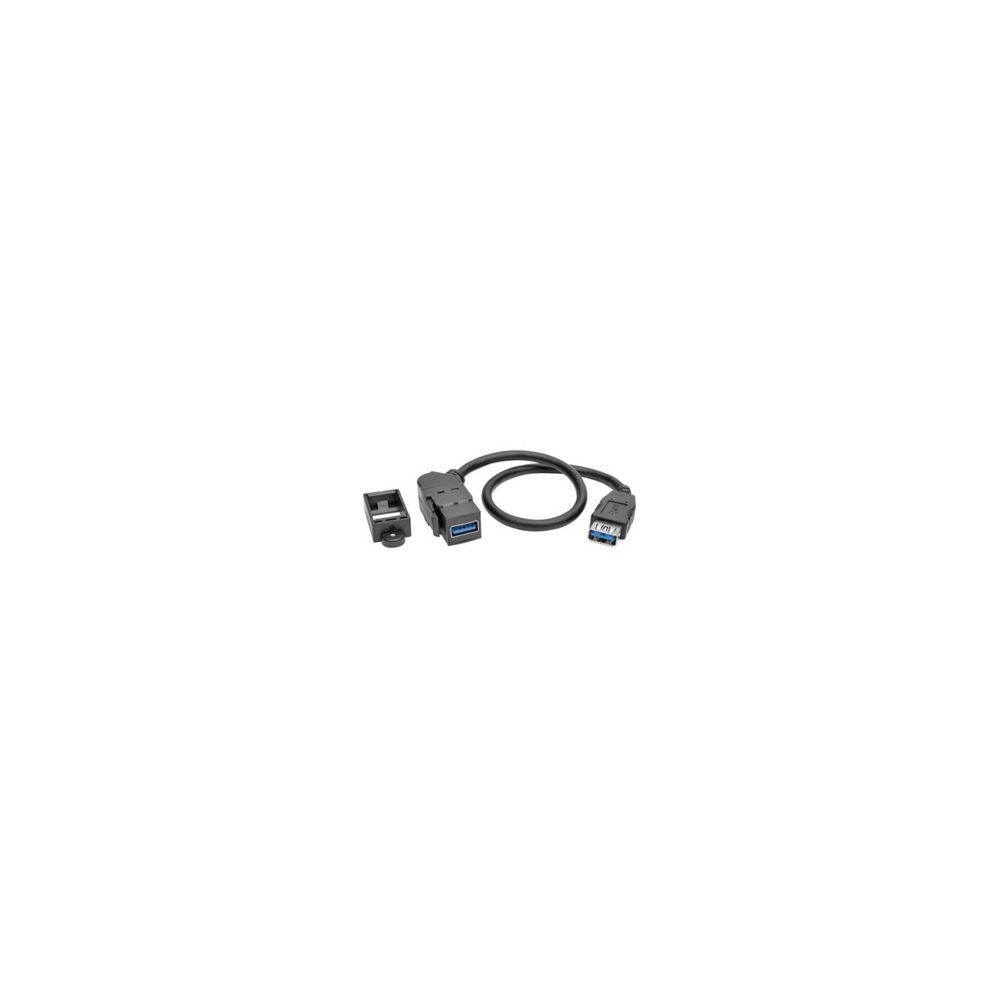

Eaton U325-001-KPA-BK Tripp Lite USB 3.0 Keystone/Panel-Mount Coupler Cable
Overview
The Eaton U325-001-KPA-BK is a Tripp Lite by Eaton USB 3.0 All-in-One Keystone/Panel-Mount Coupler Cable with USB-A female-to-female connectors, a 1 ft. (0.31 m) length, and an angled connector. It allows a USB 3.0 Type-A connection to be terminated through a standard keystone wallplate or panel.
The Tripp Lite U325-001-KPA-BK can also be installed using its included panel-mount adapter in a motherboard, podium, kiosk, conference room, classroom, or similar installation. Its USB 3.0 interface supports transfer rates up to 5 Gbps.
The cable uses foil and braid shielding, gold-plated contacts, integral strain relief, and a PVC jacket with 28 AWG data conductors and 24 AWG power conductors.
Key Features
- Tripp Lite by Eaton USB 3.0 keystone/panel-mount coupler cable
- USB-A female-to-female configuration with 1 ft. cable length
- Supports USB 3.0 transfer rates up to 5 Gbps
- Angled connector and included panel-mount adapter simplify tight-space installations
- Foil/braid shielding with gold-plated contacts and integral strain relief
Specifications
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Tripp Lite by Eaton |
| Part Number | U325-001-KPA-BK |
| Product Type | Tripp Lite USB 3.0 Keystone/Panel-Mount Coupler Cable |
| Cable Type | USB 3.0 |
| Connector A | USB 3.0 Type-A Female |
| Connector B | USB 3.0 Type-A Female |
| Connector Configuration | Female-to-Female |
| Cable Length | 1 ft. (0.31 m) |
| USB Generation | USB 3.0 |
| Maximum Data Transfer Rate | 5 Gbps |
| Connector Orientation | Angled |
| Shielding | Foil and Braid |
| Contact Plating | Gold |
| Connector Plating | Nickel |
| Data Conductors | 28 AWG |
| Power Conductors | 24 AWG |
| Jacket Material | PVC |
| Cable Color | Black |
| Mounting | Keystone / Panel Mount |
| Panel Mount Adapter | Included |
| Keystone Compatibility | Standard Keystone Wallplates |
| Recommended Cable | U325-Series USB-A Male-to-Male |
| Application | Motherboards, Podiums, Kiosks, Wallplates |
| Compliance | RoHS |
| Warranty | Lifetime Limited |
