Detailed Specifications

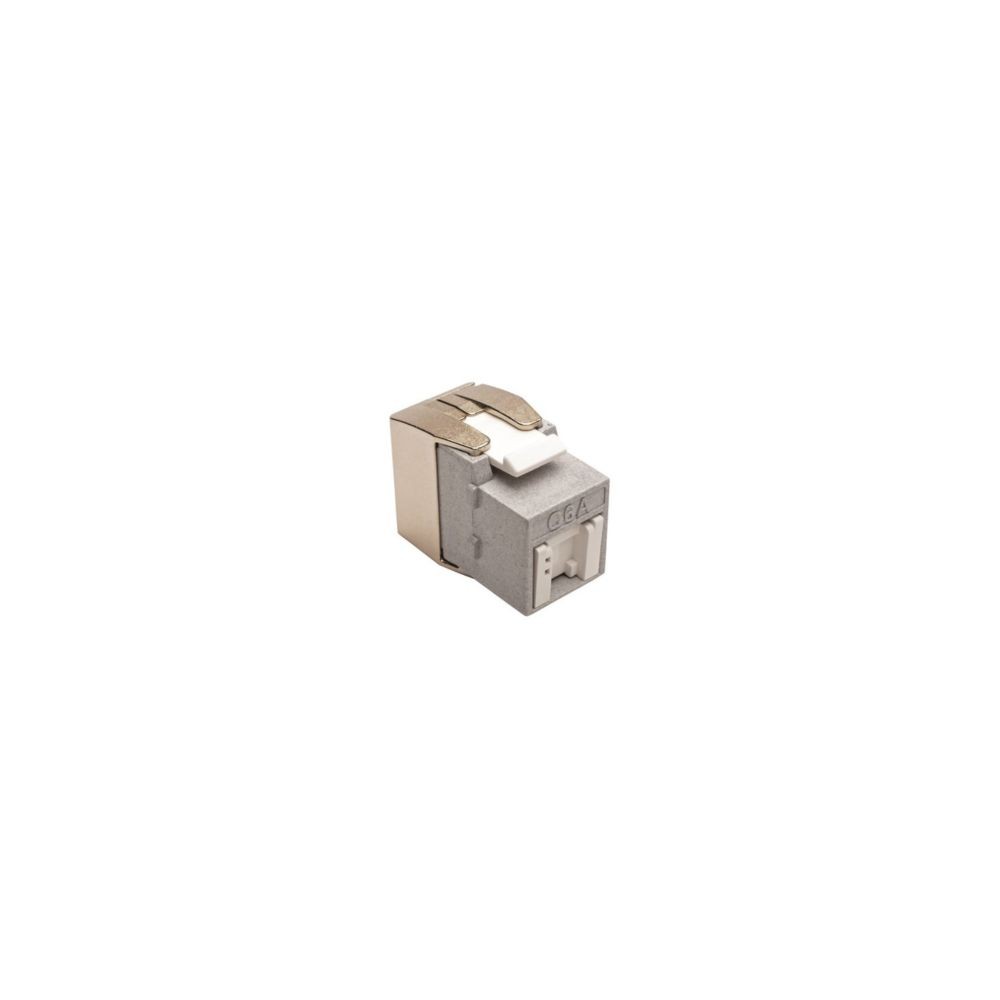

Eaton N238-001-GY-TFA Tripp Lite Tool less Cat6a Keystone Jack
Overview
The Eaton N238-001-GY-TFA is a Tripp Lite by Eaton toolless Cat6a RJ45 keystone jack designed for terminating Cat6a solid-wire network cabling without a conventional punch-down tool. It is intended for standard keystone wallplates, patch panels, and surface-mount boxes. Eaton identifies the model as a gray, single-port Cat6a keystone jack.
The Tripp Lite N238-001-GY-TFA uses a female RJ45 interface and a toolless 110 IDC termination. It accepts 22-24 AWG solid-wire Cat6a cabling, meets EIA/TIA Cat6a requirements, and supports Type 4 PoE/PoE+ up to 100W (IEEE 802.3bt).
A built-in shutter/dust cap helps protect the RJ45 port from dust and contaminants when it is not in use. The jack is also TAA compliant and UL listed, making it suitable for structured-cabling deployments in offices, network closets, server rooms, and data centers.
Key Features
- Tripp Lite by Eaton toolless Cat6a RJ45 keystone jack
- Toolless 110 IDC termination for 22-24 AWG solid-wire cabling
- Supports Type 4 PoE/PoE+ up to 100W
- Shutter/dust cap protects the RJ45 port when unused
- Fits standard keystone wallplates, patch panels, and surface-mount boxes
Specifications
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Tripp Lite by Eaton |
| Part Number | N238-001-GY-TFA |
| Product Type | Tripp Lite Toolless Cat6a Keystone Jack |
| Connector Type | RJ45 Female |
| Number of Ports | 1 |
| Termination Type | Toolless 110 IDC |
| Network Category | Cat6a |
| Compatible Cable | Cat6a |
| Compatible Wire Gauge | 22-24 AWG Solid Wire |
| Color | Gray |
| Shielding | Unshielded |
| PoE Support | Yes |
| PoE Type | Type 4 High-Power PoE++ |
| Maximum PoE Power | 100W |
| PoE Standard | IEEE 802.3bt |
| Dust Protection | Shutter / Dust Cap |
| Installation | Keystone Wallplates, Patch Panels, Surface-Mount Boxes |
| Standards | EIA/TIA Cat6a |
| TAA Compliant | Yes |
| Operating Temperature | 14°F to 140°F (-10°C to 60°C) |
| Relative Humidity | 10%-90%, non-condensing |
| Warranty | Lifetime Limited |
