Overview

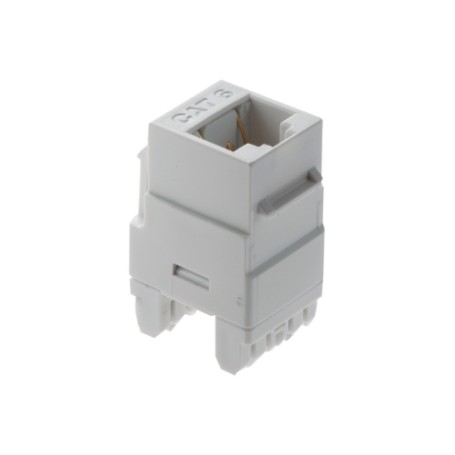

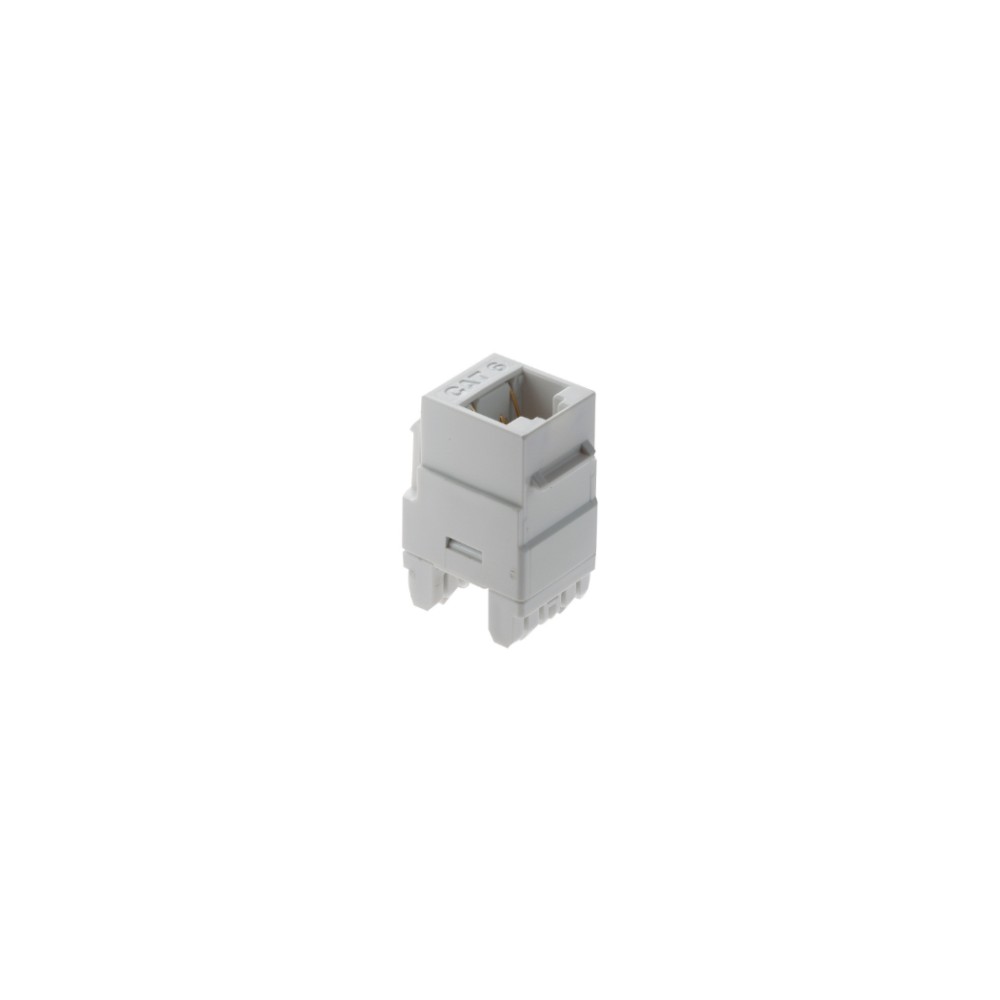

The Legrand On-Q WP3460WH Cat 6 RJ45 Keystone Connector is a white Ethernet jack designed for compatible keystone wall plates and structured wiring installations. It supports Category 6 network cabling and provides an RJ45 female port for connecting Ethernet patch cables.
Its vertical punchdown design simplifies cable termination, while rear retention caps help secure the wires. The connector is suitable for residential networking, home offices, and structured cabling projects.
Key Features
- Cat 6 RJ45 female keystone connector.
- White finish for coordinated wall plate installations.
- Vertical punchdown termination design.
- Supports T568A and T568B wiring configurations.
- Rear retention caps help secure wire connections.
- High-impact, flame-retardant plastic housing.
- Gold-plated phosphor bronze contacts for reliable connectivity.
- Designed for compatible keystone wall plates.
Technical Specifications
| Specification | Details |
|---|
| Brand | Legrand On-Q |
| Part Number / MPN | WP3460WH |
| Product Type | Cat 6 RJ45 Keystone Connector |
| Connector Type | RJ45 Female |
| Network Category | Category 6 |
| Color | White |
| Termination Style | Punchdown |
| Wiring Standards | T568A and T568B |
| Housing Material | High-impact, flame-retardant plastic |
| Contact Material | Phosphor bronze alloy |
| Contact Plating | 50 microinches of gold over 100 microinches of nickel |
| Insertion/Extraction Life | Minimum 750 cycles |
| Mounting Type | Keystone wall plate |
| Product Length | 1.28 inches |
| Product Width | 0.64 inches |
| Product Height | 0.87 inches |
| Product Weight | Approximately 0.04 lbs |
| UPC | 804428024361 |
| Compliance | CSA, cULus, RoHS, ANSI/UL 1863, UL 94V-0 housing |
Applications
- Residential Ethernet network installations.
- Home offices and small business networks.
- Structured cabling and wall plate assemblies.
- Wired internet connections for computers and network equipment.
- Home networking and multimedia wiring projects.
Compatibility and Installation
The WP3460WH is designed for compatible keystone wall plates. Terminate supported Cat 6 cable using the T568A or T568B wiring configuration, following the connector's wiring labels.
Use a suitable punchdown tool and verify the cable termination before connecting network equipment. Wall plates, Ethernet cable, and additional mounting accessories may need to be purchased separately.
Frequently Asked Questions
What type of connector is the WP3460WH?
It is a Cat 6 RJ45 female keystone connector for Ethernet networking.
Which cable category does it support?
It is designed for Category 6 cabling and compatible RJ45 Ethernet connections.
Does it support T568A and T568B?
Yes. Wiring labels for both T568A and T568B configurations are included.
What color is this connector?
This model has a white finish.
Does it include a wall plate?
The product is a keystone connector. A compatible wall plate is generally sold separately unless the seller specifies otherwise.
What are its dimensions?
The connector measures approximately 1.28 inches long, 0.64 inches wide, and 0.87 inches high.
DC Supplies Product Note
DC Supplies recommends verifying the exact model number and wall plate compatibility before ordering. This listing is for the Legrand On-Q WP3460WH keystone connector; additional installation components may be required.
