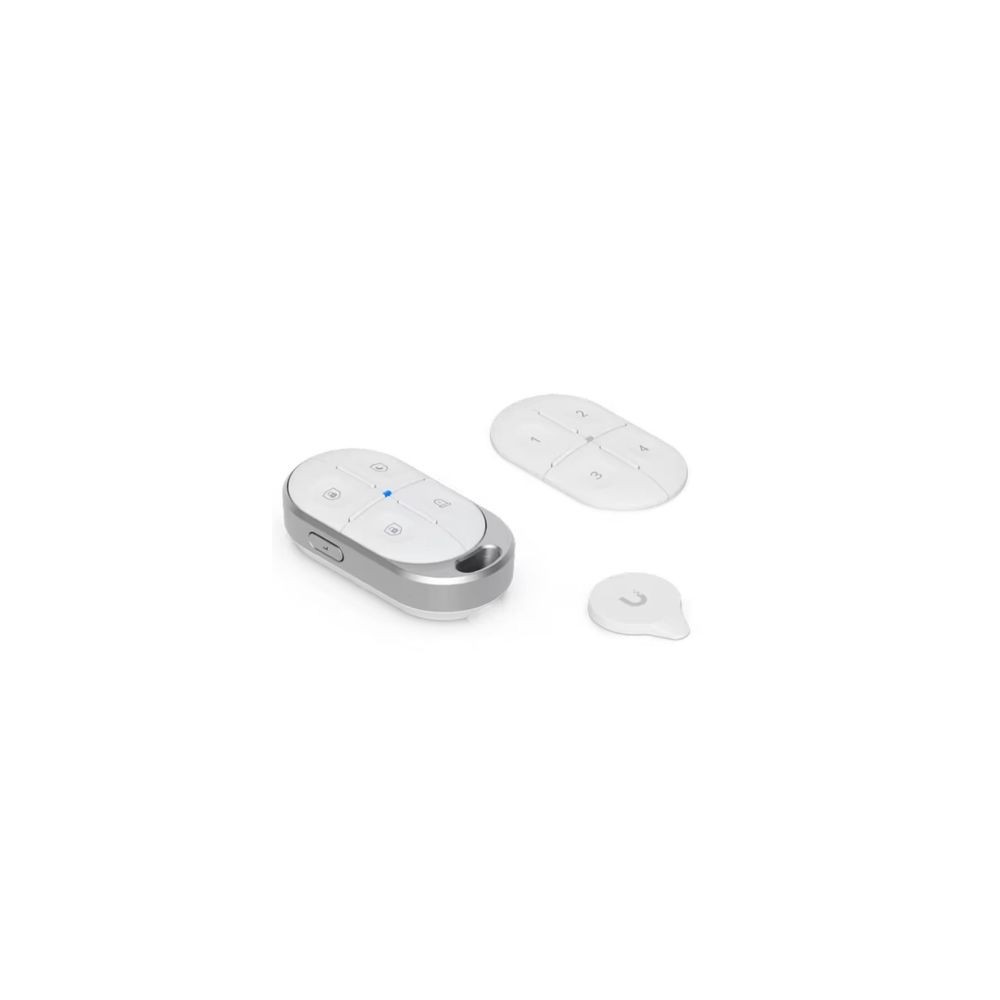

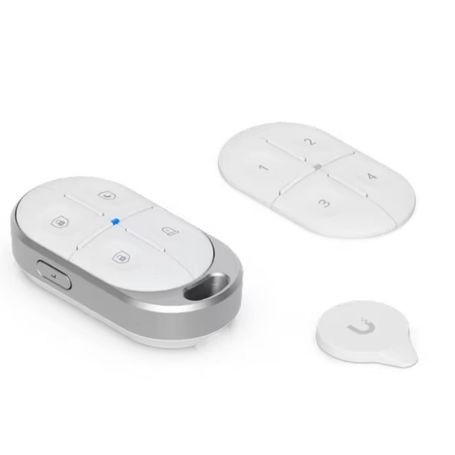

Ubiquiti USL-FOB – UniFi SuperLink Remote Control KeyFob
Overview
The Ubiquiti USL-FOB is a UniFi SuperLink Remote Control KeyFob designed for instant programmable actions across a UniFi deployment. The compact SuperLink keyfob provides dedicated controls for common security functions and programmable actions, with up to 10 years of battery life.
Key Features
- UniFi SuperLink remote control keyfob
- Up to 2 km (1.2 mi) maximum SuperLink range
- Up to 10 years of battery life
- Four primary functions: Arm, Disarm, Night Mode, and Panic
- Programmable secondary and side buttons
SuperLink Remote Control
The USL-FOB uses Ubiquiti SuperLink wireless connectivity to provide remote control functionality within a compatible UniFi deployment. Ubiquiti specifies a maximum SuperLink range of up to 2 km (1.2 mi), depending on deployment conditions.
Programmable Controls
The Ubiquiti USL-FOB includes four primary faceplate buttons for Arm, Disarm, Night Mode, and Panic functions. A secondary faceplate provides numeric buttons 1, 2, 3, and 4 for programmable functions, while two side buttons also support programmable functions.
Battery and Power
The USL-FOB operates from a single CR2450 lithium battery with a 600 mAh capacity. Its specified battery life is up to 10 years, with maximum power consumption of 150 mW.
UniFi Protect Compatibility
The USL-FOB is managed as part of the UniFi Protect ecosystem. Ubiquiti specifies UniFi Protect as the application requirement and supports management through the UniFi Protect web application and UniFi Protect mobile applications for iOS and Android.
DC Supplies Product Note
The Ubiquiti USL-FOB is suited to UniFi physical security deployments where a compact wireless remote control is required for quick access to programmed actions. A SuperLink Gateway and UniFi Protect 7.1 or later are required for operation.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | USL-FOB |
|---|
| Product Type | Remote Control KeyFob |
|---|
| Connectivity | SuperLink (Proprietary) |
|---|
| Maximum SuperLink Range | 2 km (1.2 mi) |
|---|
| Operating Frequency - US | 915.6–927.6 MHz |
|---|
| Operating Frequency - EU | 865.1–869.5 MHz |
|---|
| Maximum TX Power | 14 dBm |
|---|
| Antenna Gain | -1 dBi |
|---|
| Power Method | 1 x CR2450 Lithium Battery |
|---|
| Battery Capacity | 600 mAh |
|---|
| Battery Life | Up to 10 years |
|---|
| Supported Voltage | 3V |
|---|
| Maximum Power Consumption | 150 mW |
|---|
| Buttons | 4 primary buttons, 4 programmable numeric buttons, 2 programmable side buttons |
|---|
| LEDs | Status: R/B/W; Signal: B/R |
|---|
| Dimensions | 67 x 35 x 18.5 mm (2.6 x 1.4 x 0.7") |
|---|
| Weight | 32 g (1.1 oz) |
|---|
| Enclosure Material | Polycarbonate |
|---|
| Operating Temperature | 0 to 40°C (32 to 104°F) |
|---|
| Operating Humidity | 10 to 90% noncondensing |
|---|
| Certifications | CE, FCC, IC, UL 4200A |
|---|
| NDAA Compliant | Yes |
|---|
| Application Requirement | UniFi Protect |
|---|
FAQs
What is the Ubiquiti USL-FOB?
The USL-FOB is a UniFi SuperLink Remote Control KeyFob for executing programmable actions across a compatible UniFi deployment.
What wireless technology does the USL-FOB use?
The USL-FOB uses Ubiquiti SuperLink proprietary wireless connectivity.
What is the maximum range of the USL-FOB?
Ubiquiti specifies a maximum SuperLink range of up to 2 km (1.2 mi).
How long does the USL-FOB battery last?
The USL-FOB uses one CR2450 lithium battery and has a specified battery life of up to 10 years.
What functions are available on the USL-FOB?
The primary buttons provide Arm, Disarm, Night Mode, and Panic functions. Additional numeric and side buttons support programmable functions.
What is required to use the Ubiquiti USL-FOB?
Ubiquiti specifies a SuperLink Gateway and UniFi Protect 7.1 or later as requirements for using the USL-FOB.
