Overview

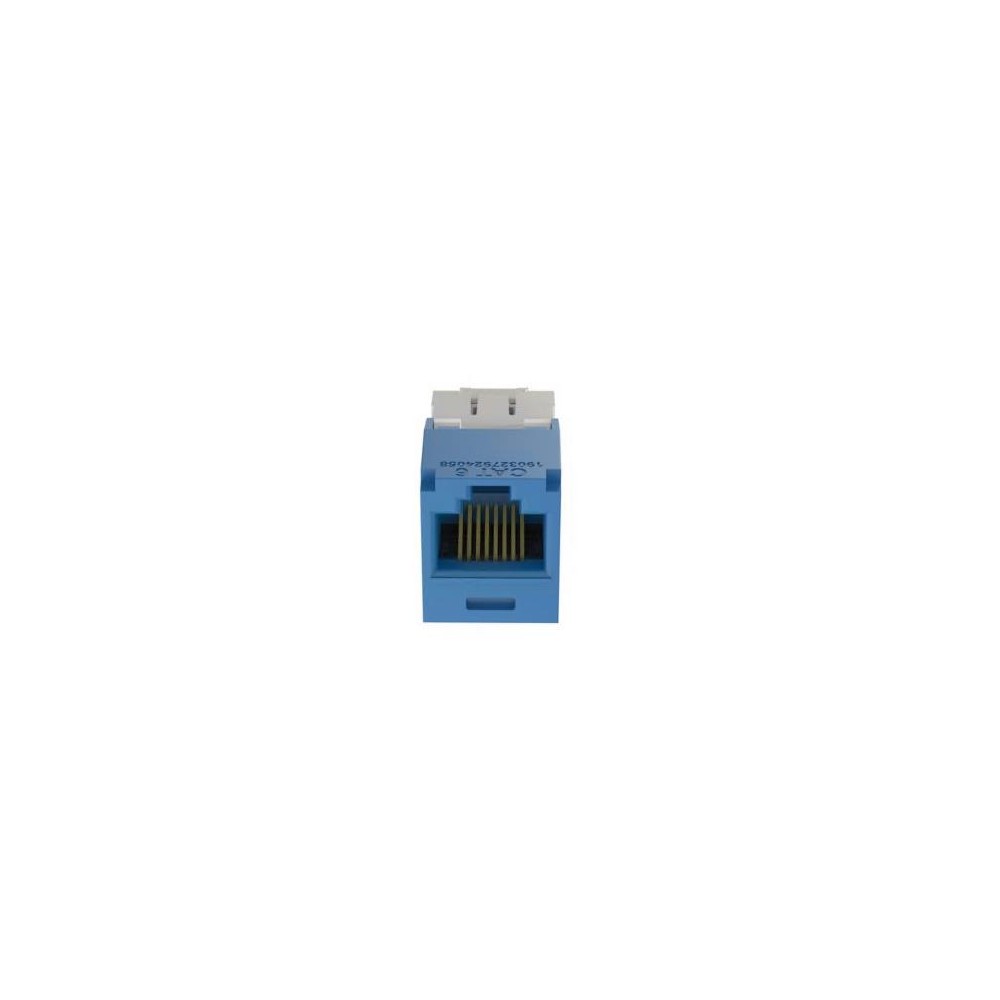

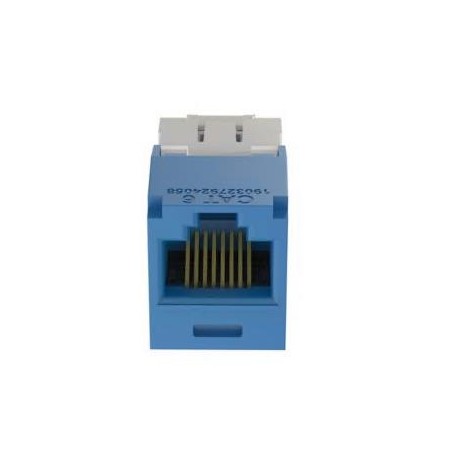

The Panduit CJ688TGBU is a blue Mini-Com TX6 PLUS Category 6 unshielded twisted-pair (UTP) RJ45 jack module designed for structured Ethernet cabling systems. It provides an 8-position, 8-contact connection for compatible copper network cabling and is suitable for commercial buildings, enterprise networks, offices, and data communication installations.
The jack is compatible with Panduit Mini-Com modular patch panels and faceplates. Its TG-style termination design supports consistent cable termination, while its compact modular format allows network installers to create organized, flexible copper connectivity systems.
Key Features
- Category 6 UTP Ethernet jack module.
- Blue housing for network identification and color-coded installations.
- Standard 8P8C RJ45 interface.
- Mini-Com TX6 PLUS product series.
- TG-style termination design.
- Unshielded construction for compatible UTP cabling systems.
- Designed for 4-pair, 22–26 AWG twisted-pair cable.
- Compatible with Panduit Mini-Com modular patch panels and faceplates.
- Polycarbonate internal housing and durable external housing.
- Factory-tested for Category 6 performance requirements.
- RoHS-compliant product according to distributor documentation.
Specifications
| Specification | Details |
|---|
| Brand Name | Panduit CJ688TGBU |
| Manufacturer | Panduit |
| Model | CJ688TGBU |
| MPN | CJ688TGBU |
| Product Series | Mini-Com TX6 PLUS |
| Product Type | Modular Ethernet Jack Module |
| Connector Type | RJ45 female jack |
| Network Category | Category 6 (Cat 6) |
| Cabling Type | Unshielded Twisted Pair (UTP) |
| Contact Configuration | 8P8C (8 positions, 8 contacts) |
| Port Configuration | 1 port |
| Termination Style | TG-style |
| Connector Orientation | Straight |
| Color | Blue |
| Exterior Housing Material | ABS, as listed by distributor sources |
| Interior Housing Material | Polycarbonate (PC) |
| Contact Material | Copper / plated phosphor bronze, depending on published listing |
| Compatible Cable | 4-pair, 22–26 AWG twisted-pair cable |
| Mounting Compatibility | Panduit Mini-Com modular patch panels and faceplates |
| Operating Temperature | Typically -10°C to 65°C; some distributor listings specify up to 75°C |
| Compliance | RoHS compliant |
| Packaging | Bulk, single module |
| Dimensions | Approximately 38.15 mm deep; verify the manufacturer's dimensional drawing for full dimensions |
| Unit Weight | Approximately 0.31–0.39 oz (8.8–11 g), depending on the distributor listing |
Compatibility and Installation
The CJ688TGBU is intended for compatible Panduit Mini-Com patch panels, faceplates, and structured cabling outlets. Confirm the patch panel format and cable category before installation. Use compatible four-pair UTP cable within the supported conductor gauge range and follow Panduit's termination instructions.
After termination, test the installed channel or permanent link with suitable Category 6 certification equipment. Avoid excessive cable untwisting and maintain the recommended bend radius to help preserve network performance.
DC Supplies Product Note
DC Supplies provides product information to help customers select compatible networking and structured cabling components. Confirm stock availability, pack quantity, warranty terms, and exact product configuration with DC Supplies before ordering.
Frequently Asked Questions
What is the Panduit CJ688TGBU?
It is a blue Category 6 UTP RJ45 jack module from Panduit's Mini-Com TX6 PLUS series, designed for structured Ethernet cabling installations.
Is the CJ688TGBU shielded?
No. This model is an unshielded UTP jack module and is intended for compatible unshielded twisted-pair cabling systems.
Which cable does this jack support?
Published specifications identify compatibility with four-pair, 22–26 AWG twisted-pair cable. Follow the manufacturer's installation instructions for the specific cable type.
Can it be installed in a patch panel?
Yes. It is compatible with Panduit Mini-Com modular patch panels and faceplates.
What does 8P8C mean?
8P8C means the connector has eight positions and eight contacts, the common physical configuration used for RJ45 Ethernet connections.
Where can I find the official product documentation?
Visit the official Panduit website and search for CJ688TGBU to access product information, technical documentation, and compatible accessories.
