Detailed Specifications

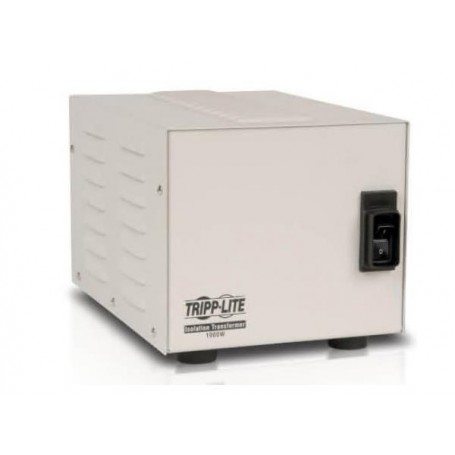

Eaton IS1000HG 1000W Medical-Grade Isolation Transformer Compatible Tripp Lite
Overview :
The Eaton IS1000HG is an Isolator Series 120V, 1000W UL 60601-1 medical-grade isolation transformer with four hospital-grade output receptacles. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model. Eaton identifies the IS1000HG as a medical-grade, low-impedance transformer-based line isolation transformer.
The transformer provides 100% isolation from the input AC line and continuous common-mode noise filtering. Its Faraday shield reduces cumulative leakage current of the transformer and connected equipment to less than 100 microamps, while the floating AC output helps prevent noise coupling from noisy hospital ground circuits.
The IS1000HG accepts 120 VAC at 60 Hz and provides 120 VAC output at up to 1000 VA/1000 watts. It includes four widely spaced NEMA 5-15R-HG hospital-grade receptacles, a hospital-grade NEMA 5-15P-HG input plug, a 10-foot power cord, thermal overload protection and a lighted power switch.
Key Features :
- 1000 VA / 1000W medical-grade isolation transformer
- 120 VAC input and 120 VAC output
- UL 60601-1 medical-grade certification
- Four hospital-grade NEMA 5-15R-HG output receptacles
- Hospital-grade NEMA 5-15P-HG input plug
- 10 ft. input power cord
- 100% AC line isolation
- Leakage current below 100 microamps
- Floating AC output reduces noise coupling
- Continuous EMI/RFI noise filtering
- Faraday shield construction
- Reduces utility switching transients and load-generated harmonics
- 35-65 dB noise suppression rating
- Thermal 2-pole 10A over-current protection
- Convection cooling
- Rugged all-metal housing
- Tower form factor
- TAA compliant
- 2-year worldwide limited warranty
Specifications :
| SpecificationDetails | |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | IS1000HG |
| Product Type | Medical-grade isolation transformer |
| Series | Isolator |
| Transformer Type | Low-impedance transformer-based line isolation |
| Input Voltage | 120 VAC |
| Output Voltage | 120 VAC |
| Frequency | 60 Hz |
| Power Capacity | 1000 VA / 1000W |
| Output Current | 8.8A |
| Input Plug | NEMA 5-15P-HG |
| Output Receptacles | 4 × NEMA 5-15R-HG |
| Input Cord Length | 10 ft. (3.05 m) |
| Isolation | 100% AC line isolation |
| Leakage Current | Less than 100 µA |
| Noise Suppression | 35-65 dB |
| Efficiency | 96% |
| Cooling | Convection |
| Over-Current Protection | 1 × thermal, 2-pole, 10A |
| THD | Less than 1% |
| Form Factor | Tower |
| Housing | All-metal |
| Certification | UL 60601-1 |
| Compliance | RoHS, TAA |
| UPC | 037332116215 |
