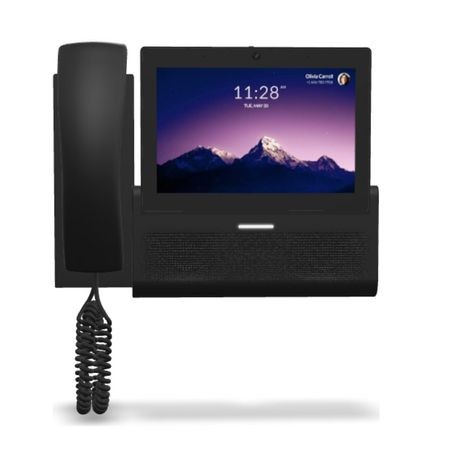

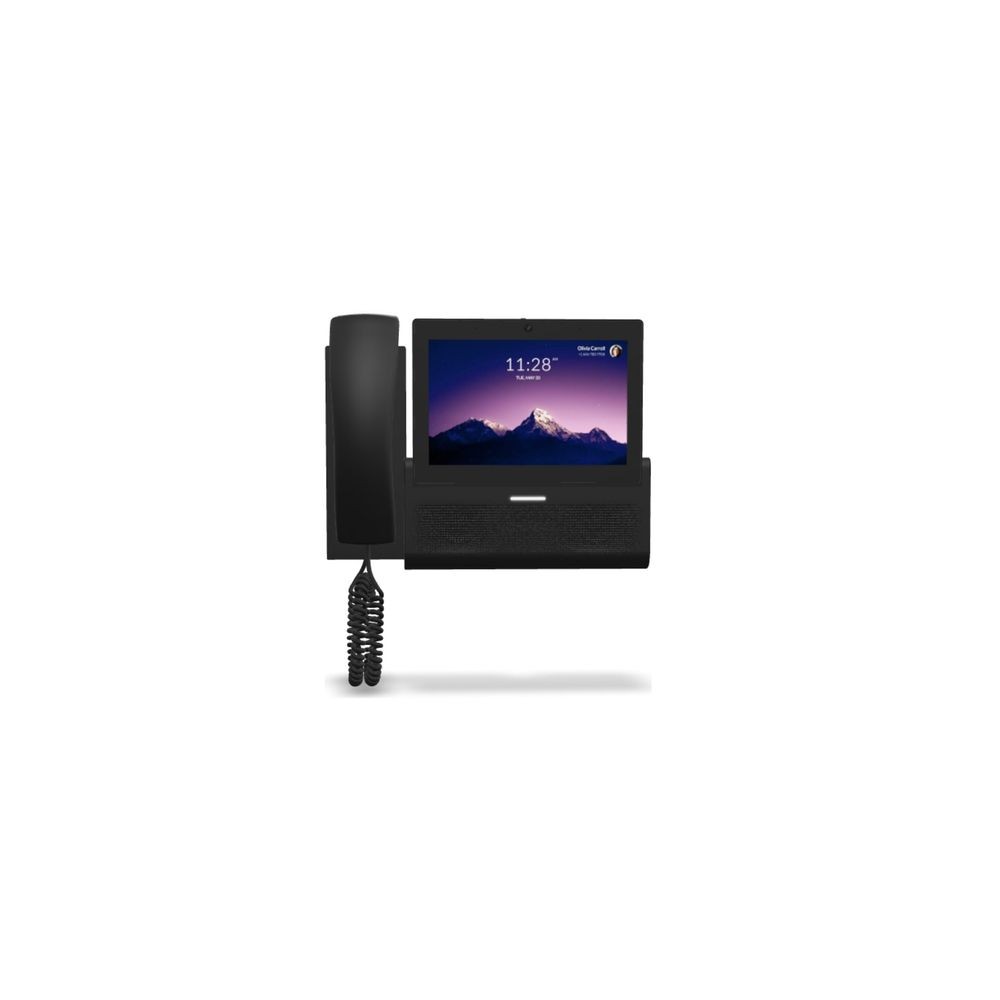

Ubiquiti UTP-G3-TOUCH-WALL UniFi G3 Touch Wall 7" HD PoE Phone
Overview
The Ubiquiti UTP-G3-TOUCH-WALL is a wall-mountable UniFi Talk phone featuring a 7-inch HD multi-touch display, integrated 5MP camera, NFC reader, WiFi, Bluetooth, and dual Gigabit Ethernet ports. It is designed for wall-mounted voice and video communication within UniFi Talk environments.
Display and Camera
The G3 Touch Wall uses a 7-inch diagonal 1280 × 800 HD display with an anti-glare coating and multi-touch operation. Its integrated 5MP camera provides 2592 × 1944 resolution and includes an embedded physical privacy shutter.
Network and Power
The phone provides two Gigabit Ethernet RJ45 ports and supports 802.11a/b/g/n/ac WiFi, Bluetooth 4.2 for general use, and Bluetooth 5.2 when used with the Ubiquiti G3 Wireless Handset. It can be powered through USB Type-C at 5V DC, 3A or PoE at 44–57V DC, with a maximum power consumption of 11W.
Audio and NFC
The G3 Touch Wall includes dual 3W speakers and dual omnidirectional MEMS microphones for hands-free communication. The integrated NFC reader operates at 13.56 MHz and supports NFC technologies including ISO/IEC 14443A, 14443B, 15693, and 18092.
Key Features
- 7-inch 1280 × 800 HD multi-touch display
- 5MP integrated camera with physical privacy shutter
- Two Gigabit Ethernet RJ45 ports with PoE support
- WiFi, Bluetooth, and integrated NFC reader
- Wall-mountable design with dual 3W hands-free speakers
Applications
The UTP-G3-TOUCH-WALL is intended for wall-mounted UniFi Talk deployments requiring voice communication, video calling, and touch-based phone control. Its dual Ethernet ports and PoE support allow network connectivity and power delivery through compatible Ethernet infrastructure.
DC Supplies Product Note
Confirm that the network infrastructure provides compatible PoE power or plan for USB Type-C power at 5V DC, 3A. Verify UniFi Talk and Talk Relay requirements before deployment and provide sufficient wall space for the 254.4 × 202.5 × 70.1 mm device.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UTP-G3-TOUCH-WALL |
| Product Type | UniFi Talk Wall-Mount Phone |
| UniFi Application | Talk |
| Mounting | Wall |
| Display Size | 7" diagonal |
| Display Resolution | 1280 × 800 HD |
| Display Surface | Anti-glare coating |
| Touch Technology | Multi-touch |
| Integrated Camera | 5MP, 2592 × 1944, privacy shutter |
| Ethernet Ports | 2 × Gigabit Ethernet RJ45 |
| WiFi | 802.11a/b/g/n/ac |
| Bluetooth | 4.2 general use; 5.2 with G3 Wireless Handset |
| NFC | 13.56 MHz |
| Power Method | USB Type-C 5V DC, 3A; PoE 44–57V DC, 15.4W |
| Maximum Power Consumption | 11W |
| Processor | Octa-core ARM Cortex-A53 |
| Memory | 2 GB RAM; 32 GB storage |
| Hands-Free Audio | Dual omnidirectional MEMS microphones; dual 3W speakers |
| Dimensions | 254.4 × 202.5 × 70.1 mm (10 × 8 × 2.8") |
| Weight | 1.1 kg (2.5 lb) |
| Enclosure Material | Polycarbonate, aluminum alloy base |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE |
Frequently Asked Questions
What is the UTP-G3-TOUCH-WALL?
It is a wall-mountable UniFi Talk phone with a 7-inch HD touch display, integrated 5MP camera, NFC, WiFi, Bluetooth, and dual Gigabit Ethernet ports.
What size display does the G3 Touch Wall have?
It has a 7-inch diagonal 1280 × 800 HD multi-touch display with an anti-glare coating.
Does the phone support PoE?
Yes. The phone supports PoE at 44–57V DC with a specified 15.4W PoE power method.
Does it have a built-in camera?
Yes. The integrated camera provides 5MP resolution at 2592 × 1944 and includes a physical privacy shutter.
Does the G3 Touch Wall support NFC?
Yes. It includes a 13.56 MHz NFC reader supporting multiple NFC standards.
How is the G3 Touch Wall mounted?
The device is designed for wall mounting and measures 254.4 × 202.5 × 70.1 mm.
