Detailed Specifications

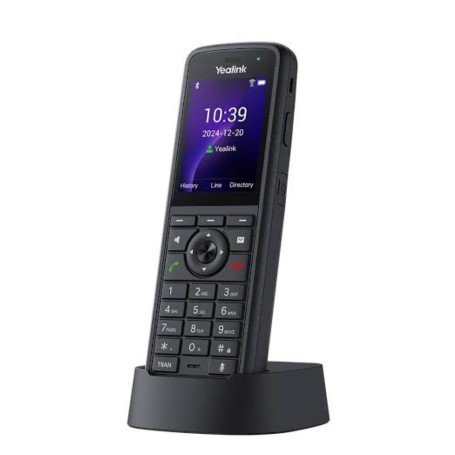

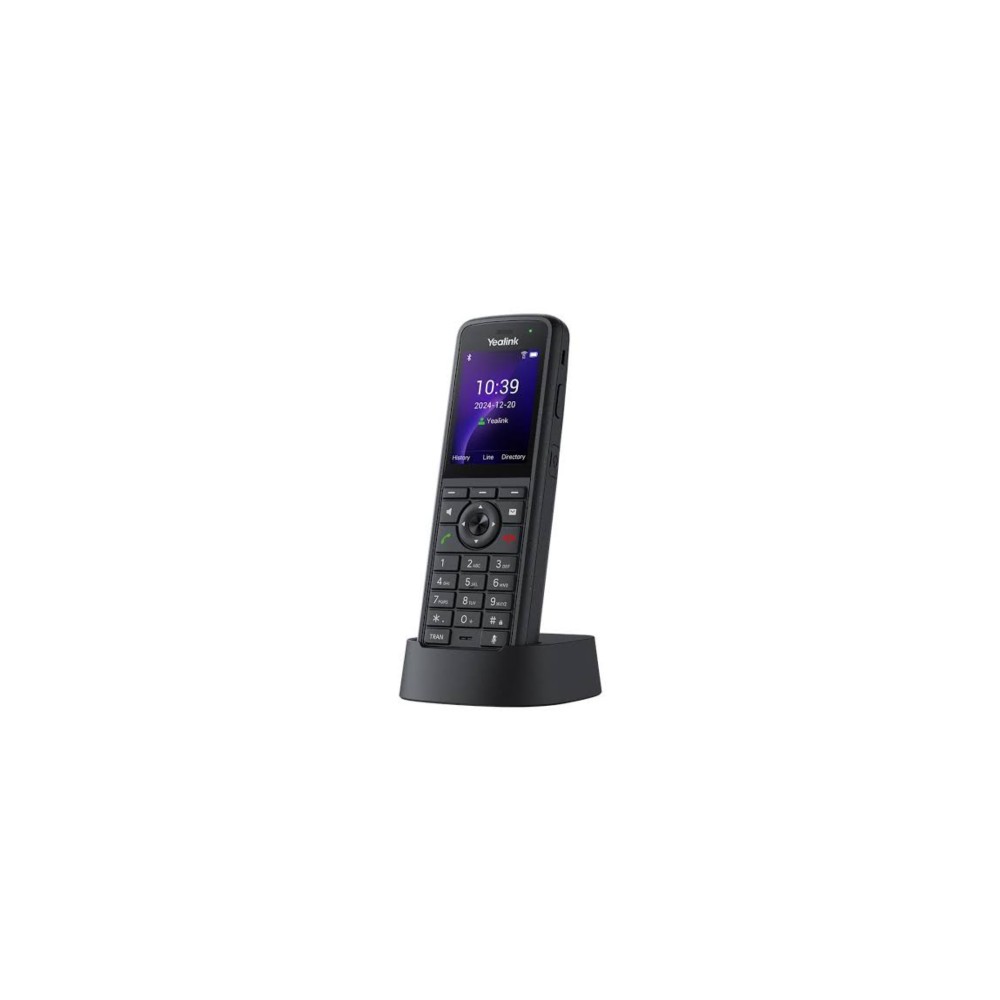

YEALINK 1301221 AX86R Ruggedized Wi-Fi IP Phone
Overview :
[This offering is a rugged, enterprise-grade portable wireless IP phone engineered specifically for demanding environments such as healthcare, warehousing, manufacturing, and retail. It is deployed by enterprise IT administrators and mobile workforce teams to deliver reliable, high-performance communication across dynamic wireless spaces. The device removes operational barriers by combining mobility with robust physical protection and advanced wireless networking standards.
Technical coverage provides an IP67-rated waterproof, dustproof, and 1.8-meter drop-resistant housing coupled with a chemical-resistant, antibacterial surface.It incorporates Yealink Optima HD Audio, dual noise-canceling microphones, and Smart Noise Cancellation technology, alongside safety features like a dedicated red emergency button, man-down alarm, and no-movement alarms.
Compatibility is bound to standard enterprise SIP platforms, IP PBX networks, and seamless wireless roaming infrastructures (IEEE 802.11k/r/v). This hardware unit should NOT be applied to unsupported legacy analog setups or unverified non-SIP communication environments.]
Key Features :
IP67-rated waterproof, dustproof, and 1.8-meter drop-proof rugged construction
Vibrant 2.4-inch (240 x 320 pixel) TFT color display with keypad backlight
Supports up to 4 independent SIP accounts and local 5-way conferencing
Built-in dual-band Wi-Fi 6 (802.11a/b/g/n/ac/ax) with fast roaming protocols
Built-in Bluetooth 5.0 for wireless headset connectivity
Dedicated physical red emergency push-button and automated safety alarms (Man-Down / No-Movement)
High-capacity 3100mAh rechargeable lithium-ion battery delivering up to 13 hours of talk time and 300 hours of standby
Antibacterial design resistant to chemical cleaning agents
Specifications :
| Specification | Value |
| Brand | YEALINK |
| Part Number | 1301221 |
| Product Type | Ruggedized Wi-Fi IP Phone |
| Model Name | AX86R |
| Display Size & Type | 2.4-inch TFT Color LCD with Backlight |
| Display Resolution | 240 x 320 pixels |
| SIP Accounts | Up to 4 Accounts |
| Audio Technologies | Optima HD Audio, Dual Microphones, Smart Noise Cancellation |
| Wireless Connectivity | Dual-Band 2.4G/5G Wi-Fi 6, Bluetooth 5.0 |
| Roaming Support | IEEE 802.11k/r/v seamless roaming |
| Protection Rating | IP67 (Waterproof & Dustproof) |
| Drop Resistance | Up to 1.8 meters |
| Battery Capacity | 3100mAh Rechargeable Lithium-ion |
| Battery Performance | Up to 13 Hours Talk Time / 300 Hours Standby |
| Interface Ports | 1x USB Type-C Port, 1x 3.5 mm Headset Jack |
| Deployment Environment | Warehouses, Healthcare, Manufacturing, Retail Workspaces |
| Lifecycle Phase | Active Rugged Wireless Communication Terminal |
| Geographic Availability | Global Standard Distribution |
