Detailed Specifications

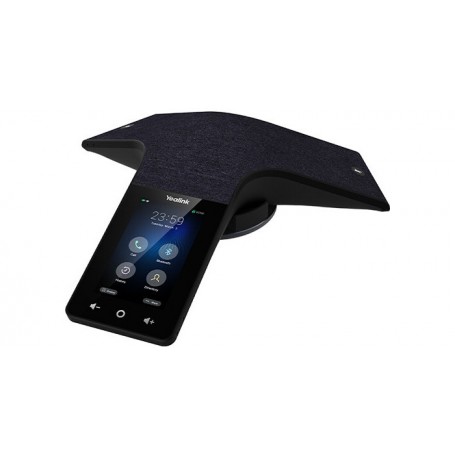

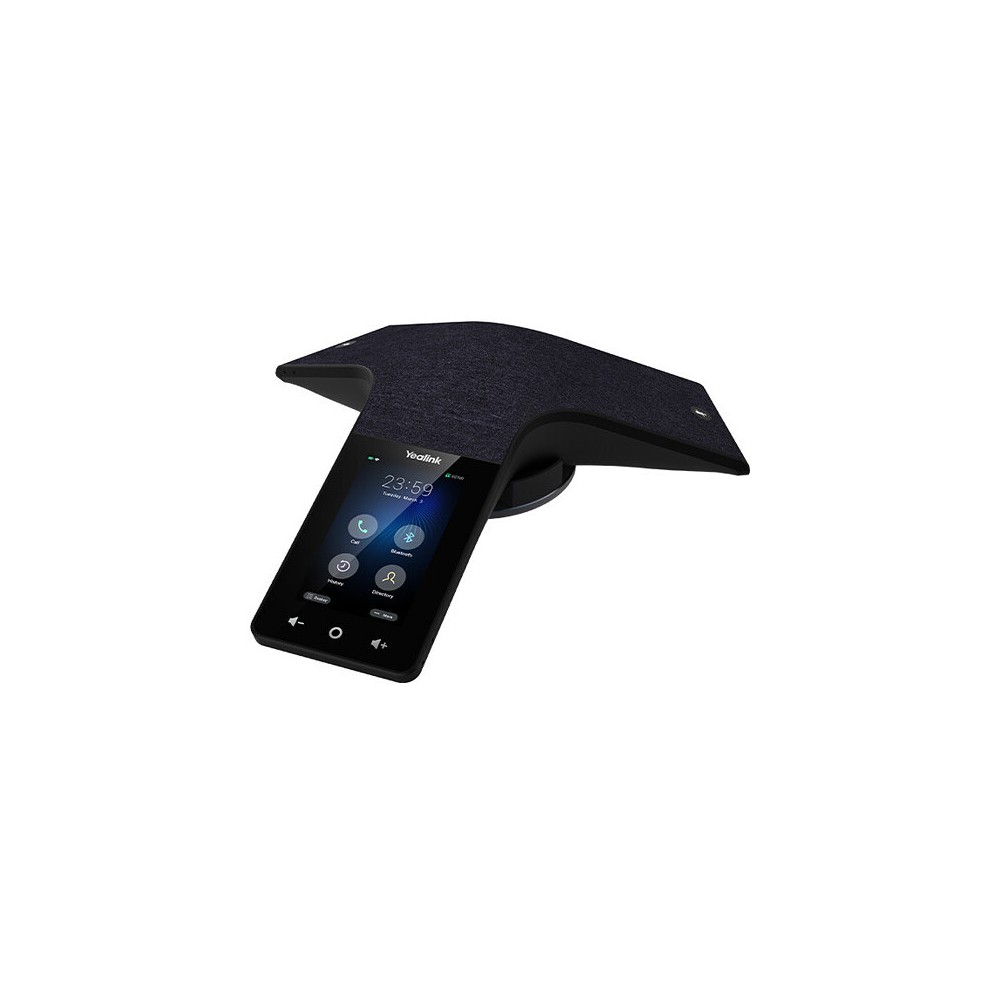

YEALINK 1304016 - Wireless IP Conference Phone
Overview
The Yealink CP935W (MPN: 1304016), frequently distributed as the CP935W-Base bundle, is a premium, wireless touch-sensitive HD conference terminal custom-built for small to medium-sized executive workspaces and agile huddle rooms.The system completely eliminates meeting room cable-clutter, power-line drops, and table drilling by integrating dual-mode wireless connectivity alongside a high-capacity internal battery pack into a single portable, low-profile triangular chassis.
The structural exterior is wrapped in a high-grade, black acoustic fabric matrix that is factory-certified to resist water, oil, and liquid spills.At the visual center sits a 4-inch capacitive multi-touch screen showing a simplified UI interaction layout to make call routing, dialing, and meeting additions frictionless.For voice capture, the terminal embeds an omnidirectional 6-microphone ring array that establishes a strict 20-foot (6-meter) 360-degree acoustic pickup field. Sound processing is tuned by Yealink Optima HD algorithms, full-duplex echo cancellation, and intelligent Noise Proof mechanics that monitor room acoustics to isolate human speech while actively blocking background ambient noise.
Its underlying networking engine uses a unique hardware dual-mode switch layer: users can instantly toggle the phone via a single touch between a standard local 2.4G/5G Wi-Fi connection or a long-range wireless DECT registration back to an included Yealink W70B IP base station (supporting stable indoor signal sweeps up to 50 meters). Do not deploy this terminal under exposed outdoor conditions or over standard PoE lines without its targeted desktop drop-in charging cradle, as its internal battery power grid relies on dedicated cradle metal contact pins for efficient voltage cycles.
Key Features
Dual-mode wireless design lets users toggle between Wi-Fi and DECT modes instantly.
Built-in 7800 mAh battery delivers up to 20 hours of continuous active talk time.
6-microphone array provides 360-degree voice tracking out to 20 feet.
Splash-resistant acoustic fabric enclosure protects internal components from spills.
Built-in Bluetooth and USB-C routing allow unified hybrid UC smartphone pairing.
Specifications
| |
| Brand | Yealink |
| Part Number | 1304016 (Base System Package) |
| Product Type | Wireless IP Conference Phone |
| Model Designation | CP935W / CP935W-Base |
| Display Panel Layout | 4-Inch (480 x 800 pixels) Capacitive Multi-Touchscreen |
| Operating System Engine | Customized Android 9.0 Software Architecture |
| Communications Protocol | SIP v1 (RFC2543), v2 (RFC3261) / Works with major IP-PBX systems |
| Acoustic Mic Coverage | 6-Microphone Onboard Circular Ring / 360° Omnidirectional |
| Voice Pickup Radius | 20 Feet (6 Meters) |
| Speaker Transducer Specs | 56 mm Diameter, 5W High-Fidelity Chamber (96dB Peak Output) |
| Internal Storage Battery | 7800 mAH Rechargeable Lithium-Ion Cell |
| Operational Lifespan | Up to 20 Hours Talk Time / Up to 167 Hours Standby (DECT) |
| Power Charging Framework | 4 Hours to Full via Dedicated Metal Contact Charger Cradle |
| Wireless Communications | Dual-Band Wi-Fi (802.11a/b/g/n), Bluetooth 4.2, DECT RF |
| Wired Interface I/O | 1 x USB 2.0 Type-C Port (For Laptop/PC Audio Bridging) |
| Meeting Expansion Limits | Local 5-Way Audio Conferencing / Connects to CPW25 Wireless Mics |
