Detailed Specifications

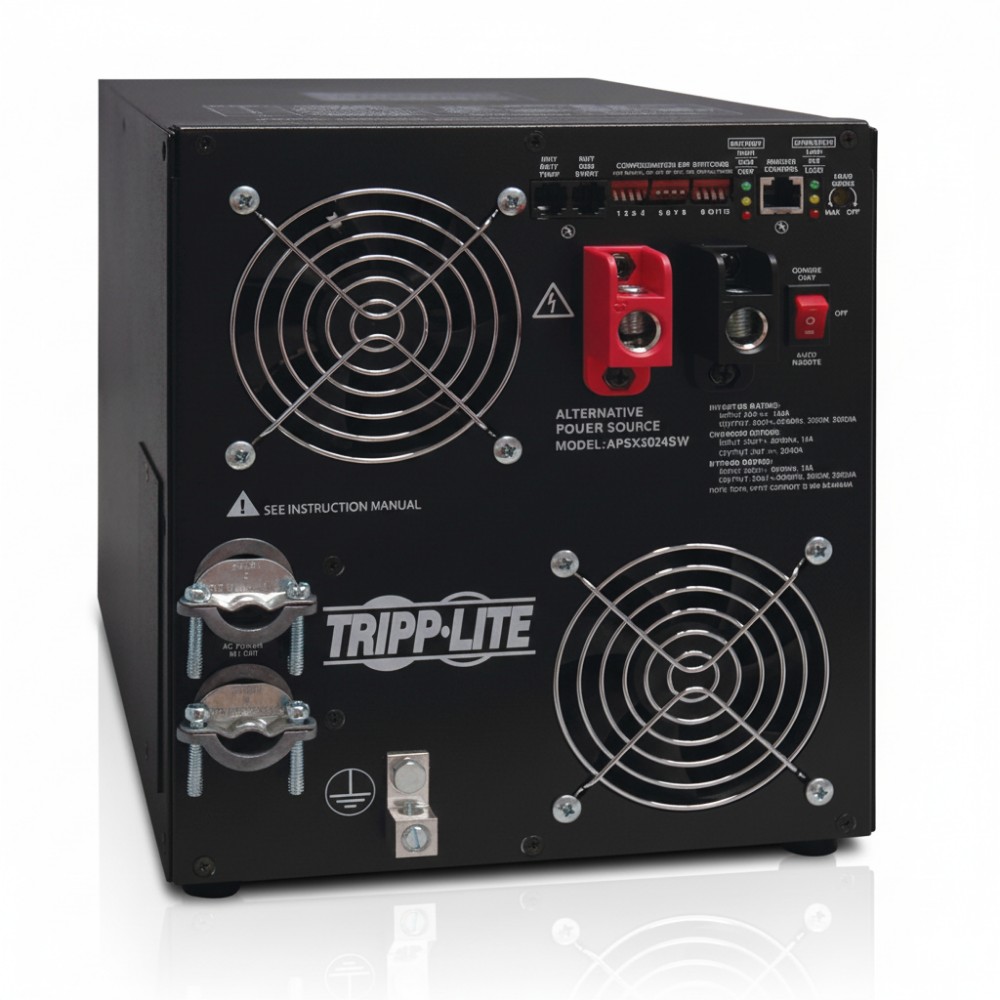

Eaton APSX3024SW 3,000 W 24 V to 230 V Pure Sine Inverter Charger
Overview
The Eaton APSX3024SW is a heavy-duty 3,000 W continuous (up to ~6,000 W peak) pure-sine inverter/charger designed for 24 V DC input systems that need 230 V AC output×such as mobile vehicles, remote sites, emergency power systems or off-grid installations. It automatically transfers loads from AC mains to battery-inverter when necessary and includes built-in battery charging capability (selectable 23 A or 90 A mode) for system integration.
Installation is hard-wired (no standard NEMA plug), designed for battery bank input and AC output via terminal strip; it supports normal operation from AC mains (charging batteries and powering loads) or from a 24 V battery bank when mains is unavailable. The system corrects brownouts/over-voltage automatically via built-in AVR during standby mode and seamlessly transfers to battery-inverter mode in pull-in milliseconds when mains fail.
From a network-engineer's view: this device is ideal when you are powering servers, switching gear or equipment racks in a vehicle, remote shelter or micro-data-site where 24 V DC battery infrastructure is present×or where you want one unit to act as both charger and inverter. You can connect external battery banks of your choice to scale runtime. The pure-sine output means you can confidently power active-PFC equipment rather than only simple loads.
Key Features
3,000 W continuous output at 230 V AC from 24 V DC input, with up to 6,000 W surge for up to 10 seconds.
Pure-sine wave AC output ensures compatibility with servers, active-PFC equipment, storage arrays and sensitive electronics.
Automatic line-to-battery transfer in 10-20 ms for UPS-grade protection; also supports battery charging and AC pass-through mode.
Rugged steel enclosure with high-current DC terminals, selectable charger (23 A/90 A), brown-out/over-voltage correction, fan cooling×built for mobile and remote environments.
Technical Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | APSX3024SW |
| Product Type | Inverter/Charger (24 V DC → 230 V AC) |
| Key Specification | 3,000 W continuous output capacity |
| Key Specification | Input: 24 V DC system voltage |
| Key Specification | Output: 230 V AC pure sine-wave |
| Management | Built-in charger (23 A / 90 A selectable), status LEDs |
| Power Requirements | Hardwired DC input, AC hardwired output |
| Dimensions & Weight | ~10.1″ H × 8.9″ W × 12.4″ D; approx 64.8 lb (≈29.4 kg) |
| Warranty | 2-year limited warrant |
